AP1154ADLXX

EOL

14V Input / 1A Output LDO Regulator

14V Input / 1A Output LDO Regulator

EOL

Description

AP1154ADLXX is a silicon monolithic bipolar structure IC. It is a low dropout regulator IC with on-off control that can supply 1A output current stably.
The output voltage of the AP1153ADSXX is trimmed with high precision and can be set between 1.8V and 5.0V to select the optimal voltage. When the output voltage is 2.5V or more, a 1μF ceramic capacitor can be used for the output side. The output current can be set arbitrarily with an external resistor, and it can also support the USB standard (500mA). The IC has a built-in overcurrent sensor circuit and overheat protection circuit.

Key Features

  • Safety device
    Built-in overcurrent protection circuit and overheat protection circuit.

Applications

  •                                 Power supply for low voltage MPU and peripheral equipment, Digital AV system, Any electronic equipment, etc.


Specifications

Part Number
AP1154ADLXX
Input Voltage (MIN.) [V]
2.4
Input Voltage (TYP.) [V]


Input Voltage (MAX.) [V]
14
Output Voltage (MIN.) [V]
4.925
Output Voltage (TYP.) [V]
5
Output Voltage (MAX.) [V]
5.075
Current Output (MAX.) [A]
1
Variable Output


Functions
Enable Control
Other
Automotive grade
Operating Temperature [℃]
-40 to 85
Device Package
SOP
Number of Pins
8

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
Yes
MSL
MSL1
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
2500
Replacement P/N

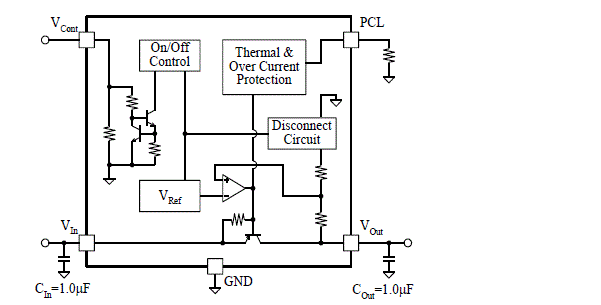

Block Diagram

Block Diagram
