Low-noise LDO regulator with output voltage adjustability, supporting 1A output current
Low-noise LDO regulator with output voltage adjustability, supporting 1A output current
EOL
Description
The AP1155ADL is a silicon monolithic bipolar structure IC that is a low dropout regulator IC with on-off control that can stably supply 1A output current. The AP1155ADL has excellent ripple rejection and low noise. The output voltage can be set between 1.3V and 13.5V by an external resistor, and the appropriate voltage can be selected. Ceramic capacitors can be used for input and output, and miniaturization can be expected. Built-in over current protection and overheat protection functions as IC protection functions.
Key Features
-
Ripple rejection | 80dB at 1kHz
-
Safety device Built-in overcurrent protection circuit and overheat protection circuit.
Applications
-
Digital Camera, Audio Equipment, Instrumentation, Car Infotainment, RF Power Supplies, etc.
Specifications
| Part Number |
AP1155ADL |
|---|---|
| Input Voltage (MIN.) [V] |
2.4 |
| Input Voltage (TYP.) [V] | |
| Input Voltage (MAX.) [V] |
14 |
| Output Voltage (MIN.) [V] |
1.3 |
| Output Voltage (TYP.) [V] | |
| Output Voltage (MAX.) [V] |
13.5 |
| Current Output (MAX.) [A] |
1 |
| Variable Output |
Yes |
| Functions |
Enable Control |
| Other |
Automotive grade |
| Operating Temperature [℃] |
-40 to 85 |
| Device Package |
HSOP |
| Number of Pins |
8 |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL |
MSL1 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
2500 |
| Replacement P/N |

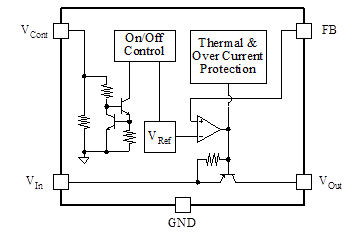

Block Diagram
