EM1011
EOL
Hall Effect ICs (Latch)
Hall Effect ICs (Latch)
EOL
Description
EM1011 is ultra-small Hall effect ICs of a single silicon chip composed of Hall element and a signal processing IC. The EM1011 is capable of alternating detection that alternately detects the magnetic fields of both poles of a magnet.
Key Features
Alternating magnetic field detection Alternating detection that detects the magnetic field of both poles of the magnet alternately is possible.
Specifications
Part Number |
EM1011 |
---|---|
Type |
Latch |
Power Supply Voltage (MIN.) [V] |
3.5 |
Power Supply Voltage (TYP.) [V] |
12 |
Power Supply Voltage (MAX.) [V] |
18 |
Sensitivity Bop [mT] |
3 |
Sensitivity Brp [mT] |
-3 |
Output stage |
Open Drain |
Current Consumption (TYP.) [mA] |
3 |
Current Consumption (MAX.) [mA] |
6 |
Drive System |
Continuous |
Other | |
Operating Temperature [℃] |
-30 to 115 |
Device Package |
TSOP |
Number of Pins |
4 |
Product Information
Part Status |
EOL |
---|---|
Pb Free |
Yes |
Halogen Free |
No |
MSL | |
Packaging |
TAPE |
JEDEC Standard Packaging |
Not Compliant |
Minimum Order Quantity [pcs.] | |
Replacement P/N |

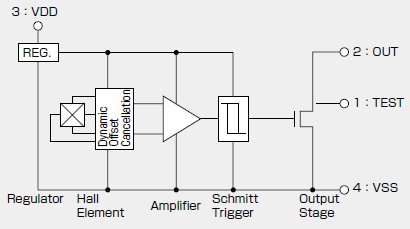

Block Diagram
