AK9710ADF01

MP

IR Sensor with Optical Filter

IR Sensor with Optical Filter

MP

Description

The AK9710ADF01 is an infrared detector equipped with an optical filter that has a transmission band in the infrared absorption band of CO₂.
The AK9710ADF01 features high sensitivity and high-speed response, and when combined with our infrared light emitting device AK9700 that can emit light at high speed, the current consumption of the CO₂ sensor can be dramatically reduced.

Key Features

  • Equipped with optical filter.
  • High sensitivity & fast response.

Applications

  •                                 In-vehicle NDIR type CO₂ sensor for measuring carbon dioxide concentration in the car


Specifications

Part Number
AK9710ADF01
Output Current Ip (MIN.) [nA]
1.04
Output Current Ip (TYP.) [nA]


Output Current Ip (MAX.) [nA]
4.9
Internal resistance (MIN.) [kΩ]
75
Internal resistance (TYP.) [kΩ]


Internal resistance (MAX.) [kΩ]
188
Optical Filter [μm]
CWL | 4.28 ,  FWHM | 0.27
Package Size [mm]
3 x 3 x 1.01
Other
Automotive grade
Operating Temperature [℃]
-40 to 85
Device Package
SON
Number of Pins
10

Product Information

Part Status
MP
Pb Free
Yes
Halogen Free
Yes
MSL
MSL1
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
1000
Replacement P/N

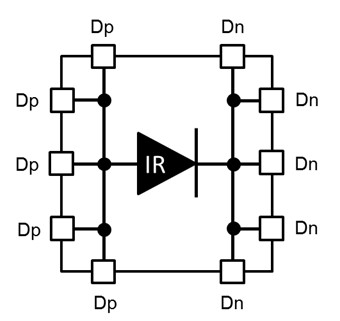

Block Diagram

Block Diagram
