Lineup

Millimeter-wave Radar

This is the lineup of attractive products of millimeter-wave radar IC offered by Asahi Kasei Microdevices (AKM).

Lineup is available for automotive applications* and consumer applications.

* ISO26262 ASIL-B compliant

60 GHz band (57-64 GHz)

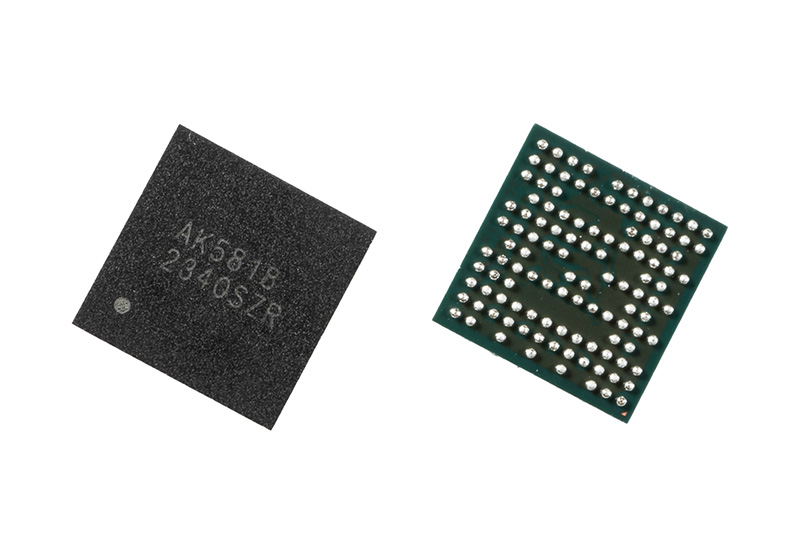

AK5818

Automotive applications
Transceiver IC
for cabin millimeter-wave sensing

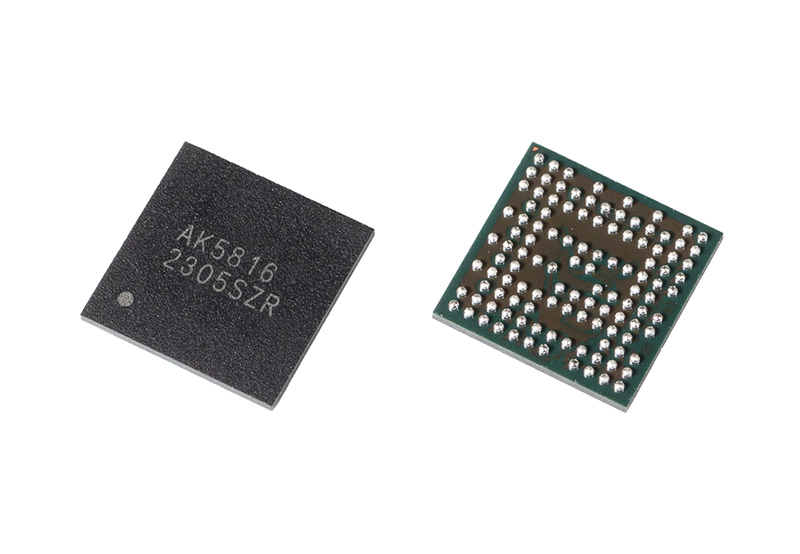

AK5816

Consumer applications
Transceiver IC
for millimeter-wave sensing

Atena60 Series

Atena60 Series

AK5816 EVB by S-Takaya Electronics Industry Co.,Ltd.

S-Takaya Electronics Industry Co.,Ltd.

79 GHz band (76-81 GHz)

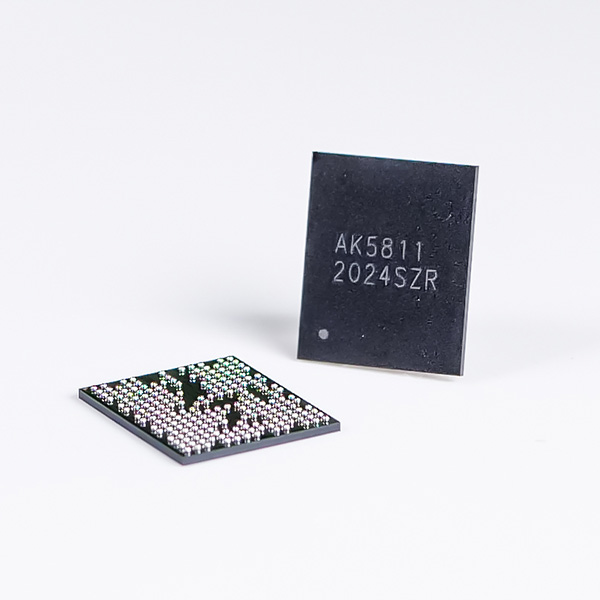

AK5811CP

AK5811CP

Consumer applications
Transceiver IC
for millimeter-wave sensing

> Check the details

Atena79 Series

Atena79 Series

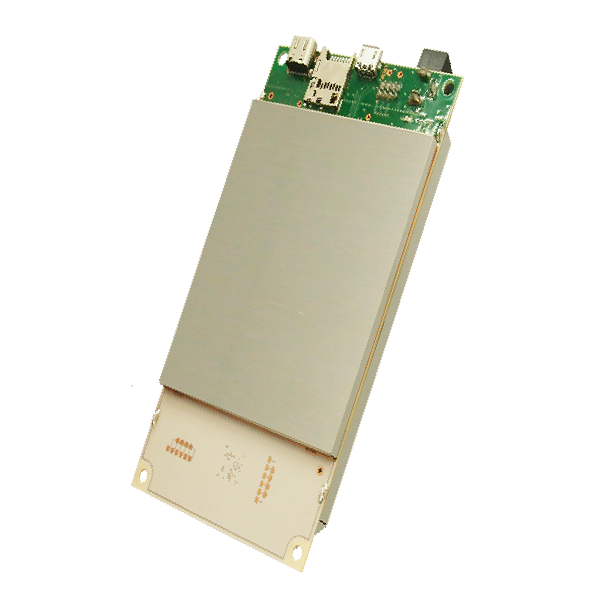

AK5811CP EVB by S-Takaya Electronics Industry Co.,Ltd.

S-Takaya Electronics Industry Co.,Ltd.

Search by Selection Table

Part Number
Part
Status
Applications
Antenna
Number of
Channels
MIMO
Operating
Frequency Range
[GHz]
TX Power/EIRP
[dBm / channel]
RX SSB
NF / EINF
[dB]
ADC Sampling
Speed
[Msps / channel]
Radar
Processing
Unit
Interface
Power
Consumption
(1% duty cycle)
[mW]
Operating
Temperature
[℃]
Device
Package
Number
of Pins
AK5811CP
MP
Consumer /
Industrial
-
TX4 / RX4
TDM /
BPM /
DDM
76 ~ 77 /
77 ~ 81
10
11
53.3
-
CSI-2
260
-40 to 125
BGA
216
AK5816
MP
Consumer /
Industrial
-
TX4 / RX4
TDM
57 ~ 64
8
10
53.3
Yes
CSI-2 / SPI
160
-40 to 105
BGA
115
AK5816AIM
Preview
Consumer /
Industrial
AiM
TX4 / RX4
TDM
57 ~ 64
10
7
53.3
Yes
CSI-2 / SPI
160


BGA
124
AK5818
MP
Automotive
-
TX4 / RX4
TDM
57 ~ 64
8
10
53.3
Yes
CSI-2 / SPI
160
-40 to 105
BGA
115

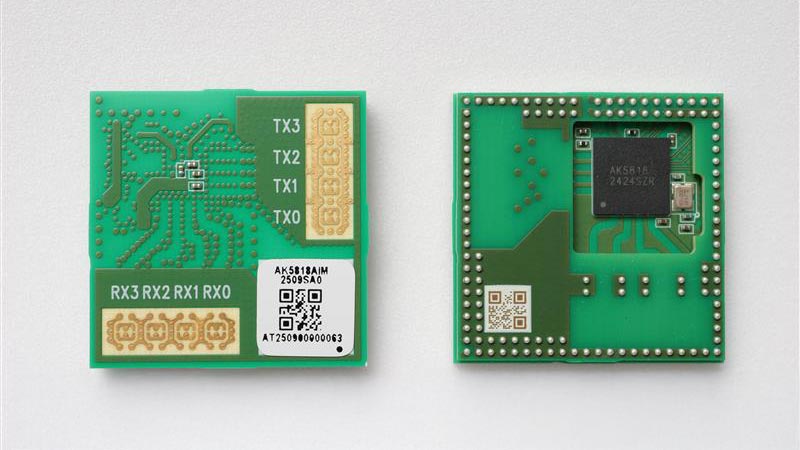

AK5818AIM
Preview
Automotive
AiM
TX4 / RX4
TDM
57 ~ 64
10
7
53.3
Yes
CSI-2 / SPI
160
