Lineup

Millimeter-wave Radar

This is the lineup of attractive products of millimeter-wave radar IC offered by Asahi Kasei Microdevices (AKM).

Lineup is available for automotive applications* and consumer applications.

* ISO26262 ASIL-B compliant

Automotive applications
Transceiver IC
for cabin millimeter-wave sensing

Consumer applications
Transceiver IC
for millimeter-wave sensing

AK5816 EVB by S-Takaya Electronics Industry Co.,Ltd.

Consumer applications
Transceiver IC
for millimeter-wave sensing

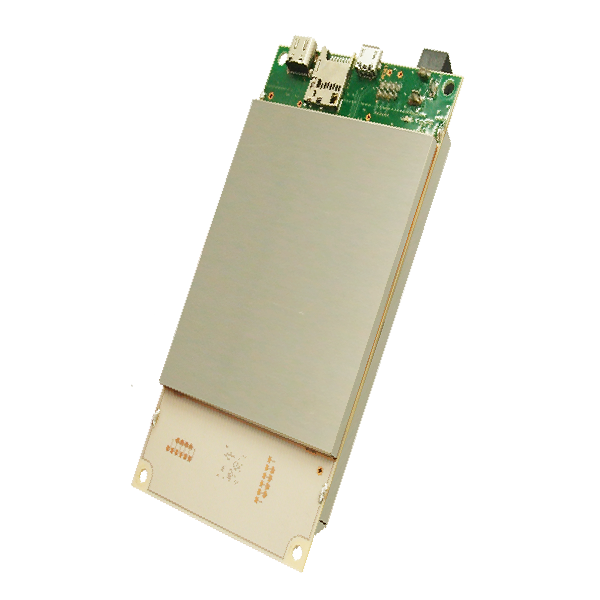

AK5811CP EVB by S-Takaya Electronics Industry Co.,Ltd.

Part Number	Part Status	Number of Channels	Operating Frequency Range [GHz]	Maximum Sweep Frequency Range [GHz]	TX Output Power [dBm / channel]	TX Phase Control Range [°]	RX SSB NF [dB]	ADC Sampling Speed [Msps / channel]	Output Data Rate [Mbps / lane]	Power Consumption [W]	Other	Operating Temperature [℃]	Device Package	Number of Pins
▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼

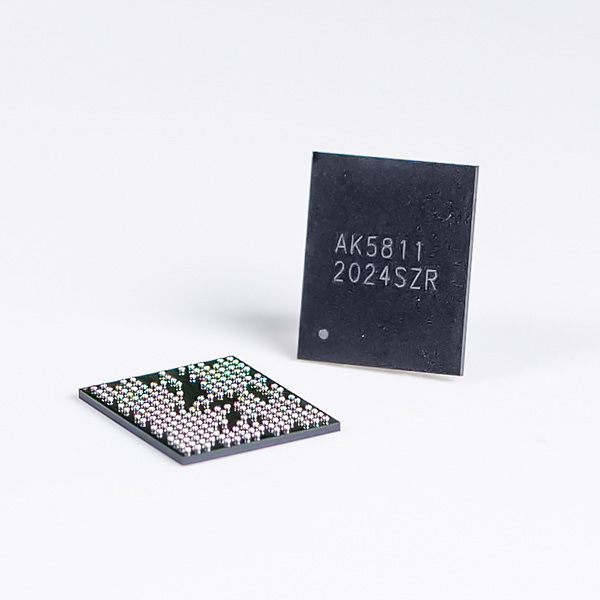

AK5811CP	MP	TX4 / RX4	76 ~ 77 / 77 ~ 81	1 / 4	10	360	11	53.3	640	1.8	Consumer grade	-40 to 125	BGA	216

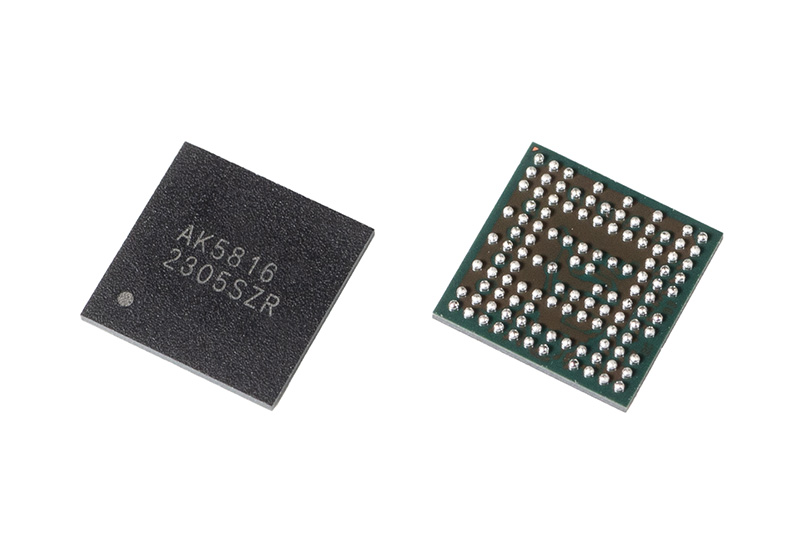

AK5816	MP	TX4 / RX4	57 ~ 64	7	8	None	10	53.3	320	0.6		-40 to 105	BGA	115

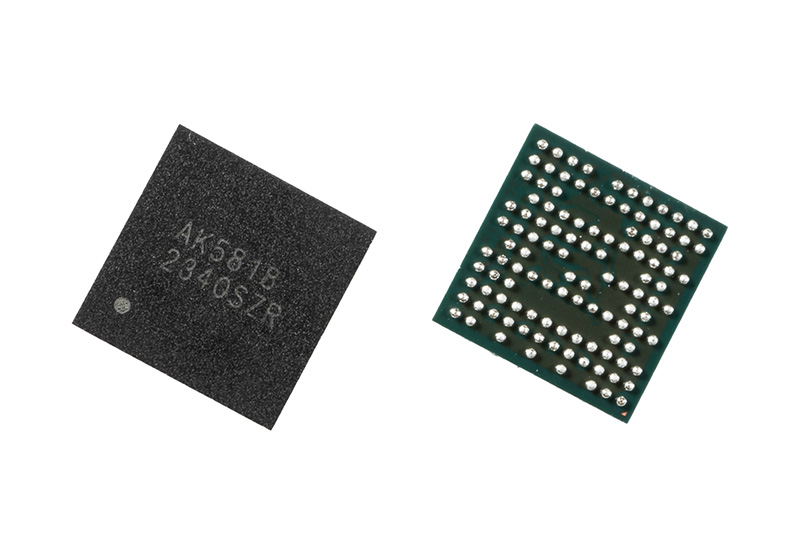

AK5818	Preview	TX4 / RX4	57 ~ 64	7	8	None	10	53.3	320	0.6		-40 to 105	BGA	115
