AK5556VN
EOL
115dB 768kHz / 32-bit 6 ch Premium ADC
115dB 768kHz / 32-bit 6 ch Premium ADC
EOL
Description
The AK5556VN is a 32-bit, 768kHz sampling, differential input A / D converter for digital audio systems. It achieves 115dB dynamic range and 106dB S / (N + D) while maintaining low power consumption performance. The AK5556VN integrates a 6 channel A / D converter, suitable for mixers and multi-channel recorders. Four types of digital filters are integrated and selectable according to the sound quality preference. The AK5556VN can be easily connected to a DSP by supporting TDM audio formats. Additionally, it supports DSD output up to 11.2MHz. The channel summation improves the dynamic range to 118dB in 6 to 3 mode, to 121dB in 4 to 1 mode and to 122dB in 6 to 1 mode.
Key Features
-
Differential-input 6-ch 32bit ADC
-
Various output formats: PCM768kHz, TDM512, DSD256
-
Pin- and register-compatible with AK5558VN, AK5576EN and AK5578EN
Applications
-
High-quality and high-resolution equipment such as studio mixers, in-vehicle amplifier units, DSD recordings. etc.
Specifications
| Part Number |
AK5556VN |
|---|---|
| Number of Channels |
6 |
| Analog Input Type |
Differential |
| Bits [bit] |
32 |
| Max fs [kHz] |
768 |
| THD+N [dB] |
-106 |
| S/N [dB] |
115 (122*) |
| Power Supply Voltage (MIN.) [V] |
4.5 |
| Power Supply Voltage (TYP.) [V] |
5.0 |
| Power Supply Voltage (MAX.) [V] |
5.5 |
| PLL | |
| Microphone Amplifier | |
| Other |
VELVETSOUND, Automotive grade |
| Operating Temperature [℃] |
-40 to 105 |
| Device Package |
HVQFN |
| Number of Pins |
64 |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL |
MSL2 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
1000 |
| Replacement P/N |

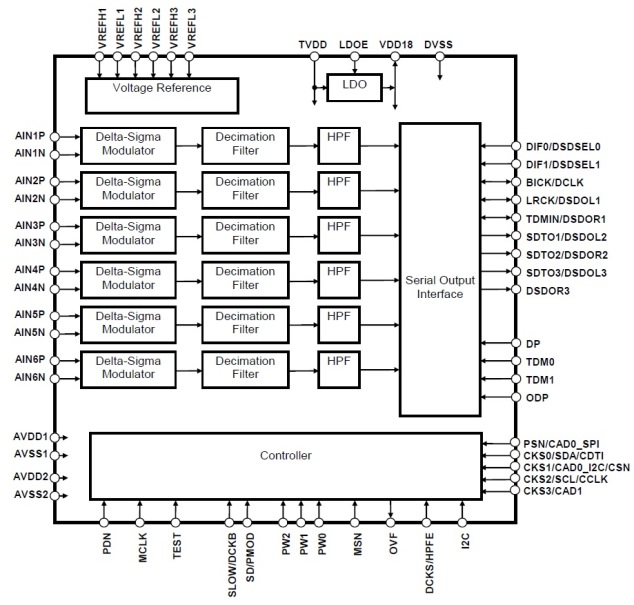

Block Diagram
