EM1712
EOL
Hall Effect ICs (Latch)
Hall Effect ICs (Latch)
EOL
Description
The EM1712 is a microminiature latch type Hall IC that integrates a Hall element and a waveform shaping IC. The EM1712's power-down function can significantly reduce current consumption during sleep. Alternating detection that detects the magnetic field of both poles of the magnet alternately is possible.
Key Features
-
Alternating magnetic field detection Alternating detection that detects the magnetic field of both poles of the magnet alternately is possible.
Applications
-
Rotation detection, position detection, open / close detection, current detection, direction detection, etc.
Specifications
| Part Number |
EM1712 |
|---|---|
| Type |
Latch |
| Power Supply Voltage (MIN.) [V] |
1.6 |
| Power Supply Voltage (TYP.) [V] |
3 |
| Power Supply Voltage (MAX.) [V] |
5.5 |
| Sensitivity Bop [mT] |
1.8 |
| Sensitivity Brp [mT] |
-1.8 |
| Output stage |
CMOS |
| Current Consumption (TYP.) [mA] |
0.06 |
| Current Consumption (MAX.) [mA] |
0.15 |
| Drive System |
Micro Power |
| Other | |
| Operating Temperature [℃] |
-30 to 85 |
| Device Package |
TSOP |
| Number of Pins |
4 |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL | |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Not Compliant |
| Minimum Order Quantity [pcs.] | |
| Replacement P/N |

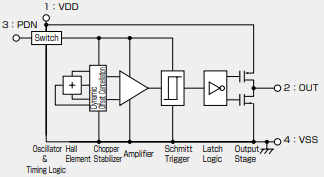

Block Diagram
