AK7016VQ
MP
Dual-Core HiFi 4 DSP with SRC
Dual-Core HiFi 4 DSP with SRC
MP
Description
The AK7016VQ is a dual-core DSP devised specifically for audio and voice processing. The two HiFi 4 CPUs are C-programmable, allowing the user to focus on developing a unique feature set, rather than spend time coding in assembly. Eight stereo Sample Rate Converters (SRCs), supporting up to 192 kHz, offer extreme flexibility with respect to system clocking.
DSP core: 2x HiFi 4 (64-bits, 245.76MHz) Async SRC: 8x 32-bit Stereo Digital Audio I/F: 8x LRCK/BICK, 8x Data Input pin (112ch at TDM), 8x Data Output pin (112ch at TDM), S/PDIF Rx/Tx Control I/F: I²C/SPI(Master/Slave, Self-boot), UART, JTAG
Key Features
-
Dual-Core Tensilica HiFi 4 DSP
-
Supports DSP Concepts' innovative development platform of audio, "Audio Weaver"
Applications
-
In-vehicle audio processing (Head units, Amplifiers)
Specifications
| Part Number |
AK7016VQ |
|---|---|
| Features |
DSP |
| Clock Speed MAX. [MHz] |
245.76 |
| Number of DSP Core |
2 core HiFi 4 |
| Number of ASRC (channel) |
16 |
| Number of Digital I/O Channel Max. (port, channel) |
8, 112 |
| Interface |
I²C, SPI, Self-Boot, JTAG, UART |
| DIT |
enable |
| DIR |
enable |
| Number of Channels (AD, DA) |
- |
| MAX fs [kHz] (AD/DA) |
- |
| Other |
Automotive grade |
| Operating Temperature [℃] |
-40 to 105 |
| Device Package |
HTQFP |
| Number of Pins |
64 |
Product Information
| Part Status |
MP |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL |
MSL2 |
| Packaging |
TRAY |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
1600 |
| Replacement P/N |

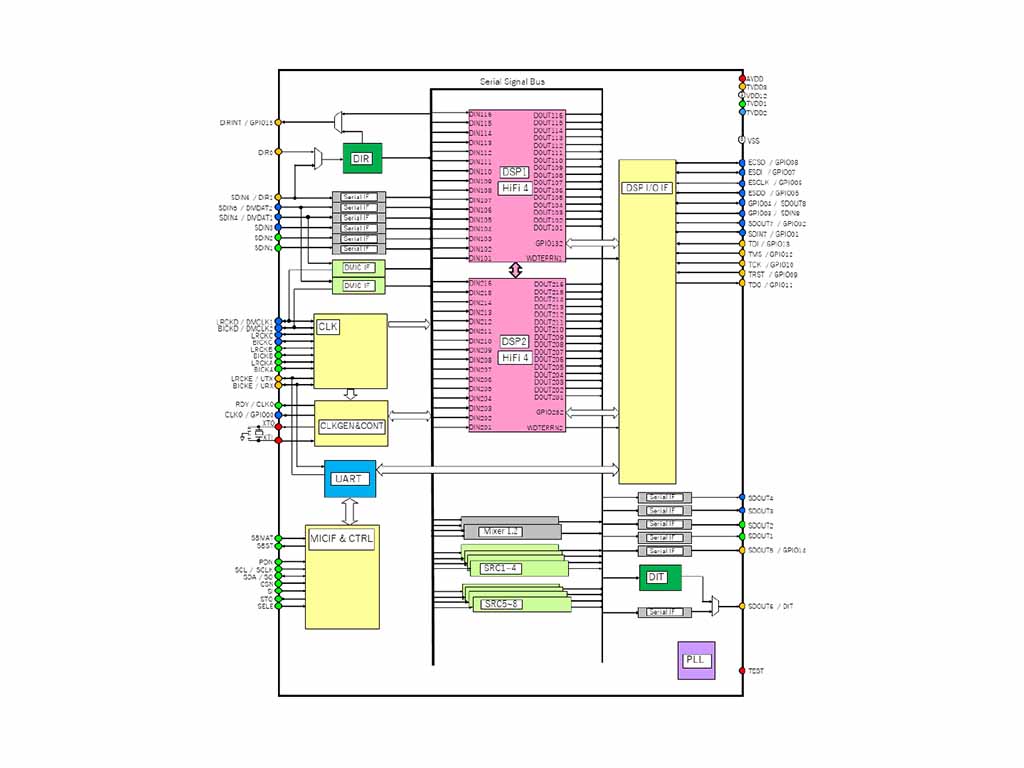

Block Diagram
