AK7735EQ
MP
Dual DSP with 4 ch ADC + 4 ch DAC + 4 ch SRC
Dual DSP with 4 ch ADC + 4 ch DAC + 4 ch SRC
MP
Description
The AK7735EQ is a highly integrated digital signal processor, including a 24-bit stereo ADC with MIC gain amplifiers, a 24-bit stereo ADC with input selector, two 32-bit stereo DACs, 2 stereo sampling rate convertors supporting the sampling frequency up to 192kHz and dual DSPs for Audio/HF process. Each DSP has 3072step/fs (when fs = 48kHz) parallel processing power. As the AK7735EQ is a RAM based DSP, it is freely programmable for user requirements, such as acoustic effects and proprietary high performance hands-free function. The AK7735EQ is available in a 48-pin LQFP package.
Key Features
-
Dual core DSP with Codec and SRC suitable for the digital devices.
Applications
-
Digital device applications etc.
Specifications
| Part Number |
AK7735EQ |
|---|---|
| MAX fs [kHz] |
192 |
| Number of Channels (AD) |
4 |
| Number of Channels (DA) |
4 |
| S/N (AD) [dB] |
106 |
| S/N (DA) [dB] |
108 |
| Number of Channels (DSP Input) |
8 |
| Number of Channels (DSP Output) |
8 |
| Clock Speed (MAX.) [MHz] |
147.456 |
| Data RAM [Word] |
16384 |
| Power Supply Voltage 1 (MIN.) [V] |
3.0 |
| Power Supply Voltage 1 (TYP.) [V] |
3.3 |
| Power Supply Voltage 1 (MAX.) [V] |
3.6 |
| Power Supply Voltage 2 (MIN.) [V] |
3.0 |
| Power Supply Voltage 2 (TYP.) [V] |
3.3 |
| Power Supply Voltage 2 (MAX.) [V] |
3.6 |
| Power Supply Voltage 3 (MIN.) [V] |
3.0 |
| Power Supply Voltage 3 (TYP.) [V] |
3.3 |
| Power Supply Voltage 3 (MAX.) [V] |
3.6 |
| Power Supply Voltage 4 (MIN.) [V] |
1.7 |
| Power Supply Voltage 4 (TYP.) [V] |
3.3 |
| Power Supply Voltage 4 (MAX.) [V] |
3.6 |
| Other | |
| Operating Temperature [℃] |
-20 to 85 |
| Device Package |
LQFP |
| Number of Pins |
48 |
Product Information
| Part Status |
MP |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL |
MSL3 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
1000 |
| Replacement P/N |

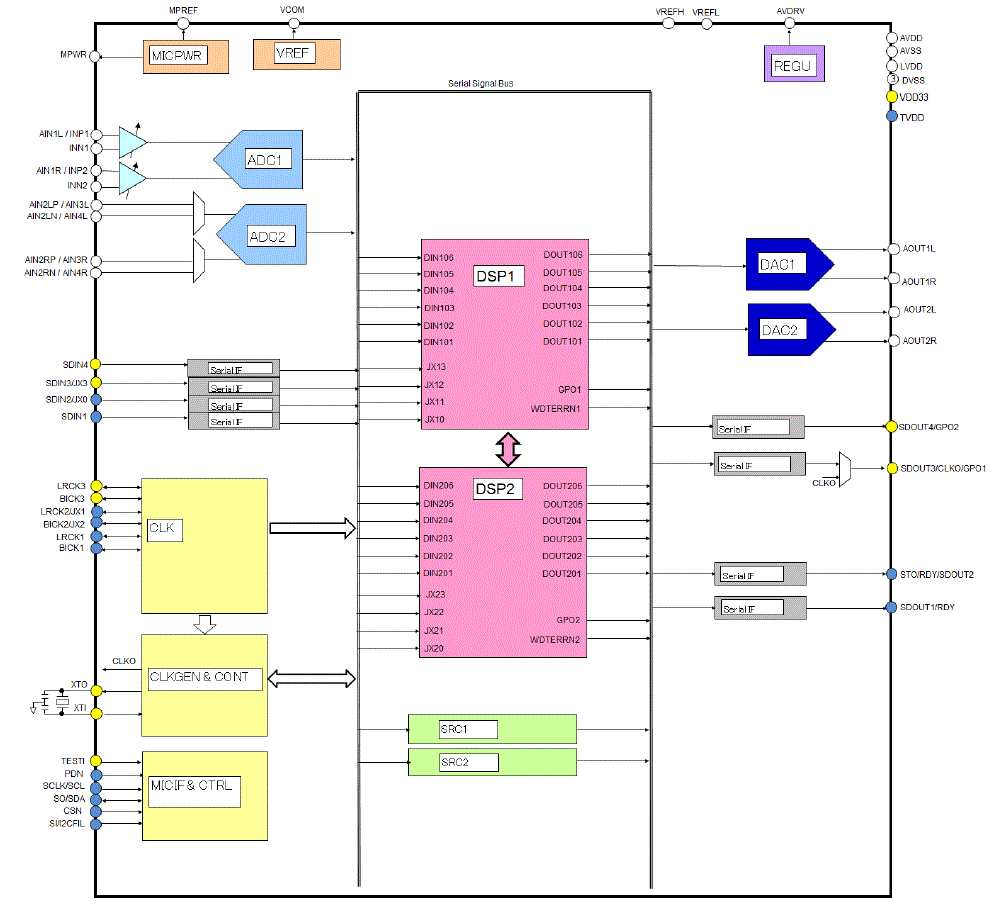

Block Diagram
