AK5704EN

MP

Low-Power 32-bit 4 ch ADC with MIC-Amp

Low-Power 32-bit 4 ch ADC with MIC-Amp

MP

Description

The AK5704EN is a high performance analog front-end A / D converter IC ideal for voice recognition, voice control, and conferencing applications. The device has a built-in 4 channel 32-bit ADC and a low noise microphone amplifier and extracts full performance of a high S / N microphone with low power consumption by achieving dynamic range of 105dB. It is possible to support up to 16 channel microphone array by connecting multiple AK5704EN’s. In addition, since it incorporates ultra-low power consumption voice activity detection, power consumption during wait time is greatly reduced.

Key Features

  • Differential input or single-ended input possible
  • Equipped with gain amplifier for microphone
  • Equipped with microphone sensitivity correction function

Applications

  •                                 Ideal for voice recognition, voice control, and conferencing applications.


Specifications

Part Number
AK5704EN
Number of Channels
4
Analog Input Type
Single / Differential
Bits [bit]
32
Max fs [kHz]
192
THD+N [dB]
-90
S/N [dB]
105
Power Supply Voltage (MIN.) [V]
1.7 / 3.0
Power Supply Voltage (TYP.) [V]
1.8 / 3.3
Power Supply Voltage (MAX.) [V]
1.9 / 3.6
PLL
Yes
Microphone Amplifier
Yes
Other
VAD, ALC, Cascade TDM I/F
Operating Temperature [℃]
-40 to 85
Device Package
HWQFN
Number of Pins
28

Product Information

Part Status
MP
Pb Free
Yes
Halogen Free
Yes
MSL
MSL2
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
2000
Replacement P/N

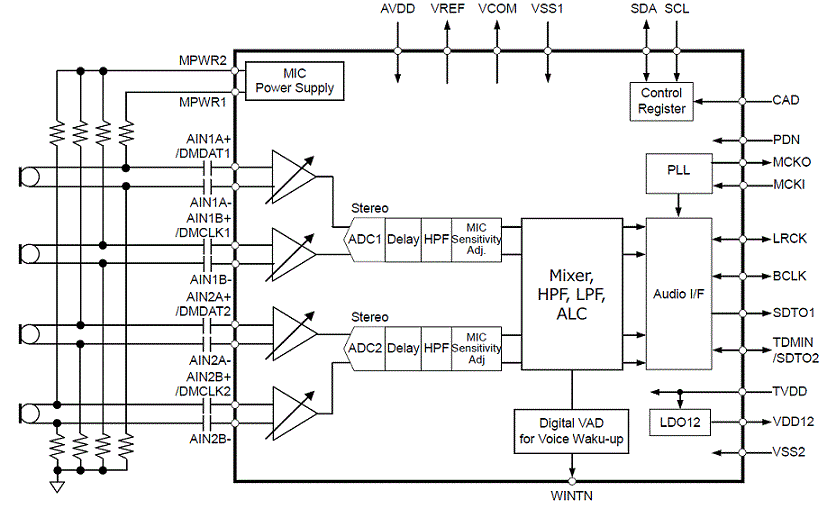

Block Diagram

Block Diagram
