AK5720VT
MP
2 ch ADC with Mic-Amplifier
2 ch ADC with Mic-Amplifier
MP
Description
The AK5720VT is a low voltage 24-bit A / D converter for digital audio systems. The AK5720VT includes an Input Gain Amplifier, making it suitable for microphone applications. The analog signal input of the AK5720VT is single-ended, eliminating the need for external filters. The AK5720VT is housed in a space-saving 16-pin TSSOP package.
Key Features
-
Single-ended input 24-bit stereo ADC
-
Low latency
-
TDM256 output supported
Applications
-
Car Audios etc.
Specifications
| Part Number |
AK5720VT |
|---|---|
| Number of Channels |
2 |
| Analog Input Type |
Single |
| Bits [bit] |
24 |
| Max fs [kHz] |
96 |
| THD+N [dB] |
-94 |
| S/N [dB] |
102 |
| Power Supply Voltage (MIN.) [V] |
2.7 |
| Power Supply Voltage (TYP.) [V] |
3.0 or 5.0 |
| Power Supply Voltage (MAX.) [V] |
5.5 |
| PLL | |
| Microphone Amplifier |
Yes |
| Other |
Cascade TDM I / F, Automotive grade |
| Operating Temperature [℃] |
-40 to 105 |
| Device Package |
TSSOP |
| Number of Pins |
16 |
Product Information
| Part Status |
MP |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL |
MSL2 |
| Packaging |
TAPE |
| Moisture Barrier Packaging |
Based on JEDEC J‑STD‑033 guidelines |
| Minimum Order Quantity [pcs.] |
1000 |
| Replacement P/N |

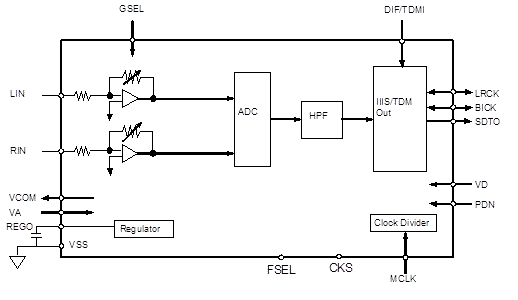

Block Diagram
