CQ236B

EOL

Open loop type current sensor. High-accuracy and high-speed current sensing.

Open loop type current sensor. High-accuracy and high-speed current sensing.

EOL

Description

CQ236B is an open-type current sensor using a Hall sensor which outputs the analog voltage proportional to the AC / DC current. Quantum well ultra-thin film InAs (Indium Arsenide) is used as the Hall sensor, which enables the high-accuracy and high-speed current sensing. Simple AI-Shell package with the Hall sensor, magnetic core, and primary conductor realizes the space-saving and high reliability.

Key Features

  • High precision and high speed.
    Employs a highly sensitive quantum well structure InAs Hall element, and is characterized by the ability to detect both DC and AC with high accuracy and high speed.

Applications

  •                                 Inverter control in air-conditioners, industrial equipments, power conditioners, etc.


Specifications

Part Number
CQ236B
Package Type (Mounting style)
through hole type
Maximum Effective Current [Arms]
50
Linear Sensing Range (MIN.) [A]
0
Linear Sensing Range (MAX.) [A]
25
Sensitivity [mV/A]
160
Response Time [μsec]
1
Power Supply Voltage (MIN.) [V]
4.5
Power Supply Voltage (TYP.) [V]
5.0
Power Supply Voltage (MAX.) [V]
5.5
Other


Operating Temperature [℃]
-40 to 110
Device Package
SIP
Number of Pins
7

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
Yes
MSL
MSL1
Packaging


JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
1000
Replacement P/N

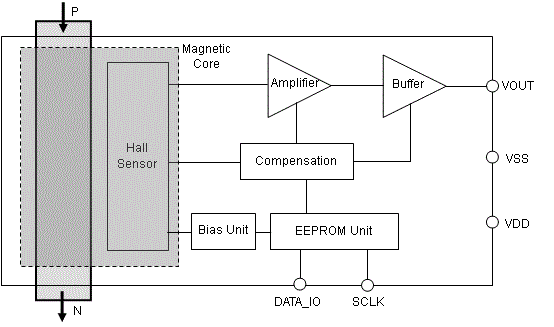

Block Diagram

Block Diagram
