AP1029ADR
EOL
32V H-Bridge DC Motor Driver IC
32V H-Bridge DC Motor Driver IC
EOL
Description
The AP1029ADR is a 1 channel H-bridge compact motor driver that can maintain a constant motor torque even when the input voltage fluctuates. It has a built-in 4.5V regulator that supports motor operation voltage from 5.5V to 32V. The AP1029ADR can be driven with a single power supply, making it suitable to a wide range of products. The AP1029ADR integrates low voltage detection, overheat protection and overcurrent protection circuits in addition to an abnormal status detection output terminal that realizes protection functions, improving the reliability of the system. The AP1029ADR has a temperature range of -40°C to 105°C, (expanded from 85°C of the previous design).
Key Features
-
Maintain motor torque Maintains torque against input fluctuations.
-
Safety devices are installed. The low-voltage detection circuit, overheat protection circuit, and overcurrent protection circuit are installed, so you can use it with confidence.
Applications
-
Driving various small motors
Specifications
| Part Number |
AP1029ADR |
|---|---|
| Number of Channels |
1 |
| Motor Voltage(VM) (MIN.) [V] |
5.5 |
| Motor Voltage (VM) (TYP.) [V] |
12.0 |
| Motor Voltage (VM) (MAX.) [V] |
32.0 |
| Control Voltage (VC) (MIN.) [V] | |
| Control Voltage (VC) (TYP.) [V] | |
| Control Voltage (VC) (MAX.) [V] | |
| DC Current (Max) [A] |
1.2 |
| Peak Current (MAX.) [A] | |
| Other |
Automotive Qualified |
| Operating Temperature [℃] |
-40 to 105 |
| Device Package |
HWQFN |
| Number of Pins |
16 |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL |
MSL2 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
4000 |
| Replacement P/N |

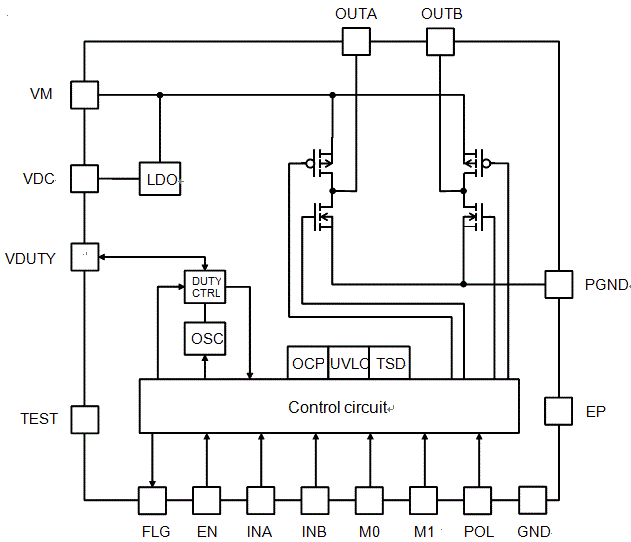

Block Diagram
