Description
The EM1711 is an ultra-small latch-type Hall IC that integrates a Hall element and a waveform shaping IC. The power down function of the EM1711 can significantly reduce current consumption during sleep. Alternating detection that detects the magnetic field of both poles of the magnet alternately is possible.
Key Features
-
Alternating magnetic field detection Alternating detection that detects the magnetic field of both poles of the magnet alternately is possible.
Applications
-
Rotation detection, position detection, open / close detection, current detection, direction detection, etc.
Specifications
| Part Number |
EM1711 |
|---|---|
| Type |
Latch |
| Power Supply Voltage (MIN.) [V] |
1.6 |
| Power Supply Voltage (TYP.) [V] |
3 |
| Power Supply Voltage (MAX.) [V] |
5.5 |
| Sensitivity Bop [mT] |
1.8 |
| Sensitivity Brp [mT] |
-1.8 |
| Output stage |
CMOS |
| Current Consumption (TYP.) [mA] |
2.5 |
| Current Consumption (MAX.) [mA] |
6 |
| Drive System |
Continuous |
| Other | |
| Operating Temperature [℃] |
-30 to 85 |
| Device Package |
TSOP |
| Number of Pins |
4 |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL | |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Not Compliant |
| Minimum Order Quantity [pcs.] | |
| Replacement P/N |

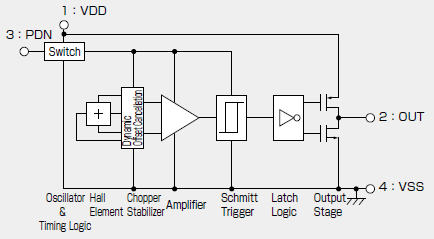

Block Diagram
