AP4473

MP

Ultra-Low Power Step-up DC-DC Converter

Ultra-Low Power Step-up DC-DC Converter

MP

Description

The AP4473 is an ultra-low consumption power management chip that integrated a step-up DC-DC converter and hysteresis comparators. The AP4473 requires only 15mV (typical) input to start boosting using an external transformer. The AP4473 has hysteresis operation switch that can control the power supply for the external system (sensors, wireless modules, LEDs) while protecting external storage (capacitors), and the external system.
The AP4473 is ideally suited for energy harvesting. This provides a self-powered wireless sensor node with simple hardware design.

Key Features

  • Energy harvesting
    A technology that extracts minute energy and converts it into electric power.
  • Suppressing current consumed by self
    The biggest feature is that it consumes the smallest current

Applications

  •                                 ■Energy Harvesting
    ・Wireless Sensor Node
    ・Wearable and Portable Device
    ■Example of Energy Harvester (several mW to several mW sources)
    ・Thermal


Specifications

Part Number
AP4473
Input Voltage [V]
0.015 to 0.5
Minimum input voltage to reach to VDETH2[V]
0.023
Start to output [V] (VDETH2)
3.3
Stop to output [V] (VDETH2)
2.6
Over voltage protection [V]
3.55
Other


Operating Temperature [℃]
-30 to 85
Device Package
HWQFN
Number of Pins
20

Product Information

Part Status
MP
Pb Free
Yes
Halogen Free
Yes
MSL
MSL2
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
1000
Replacement P/N



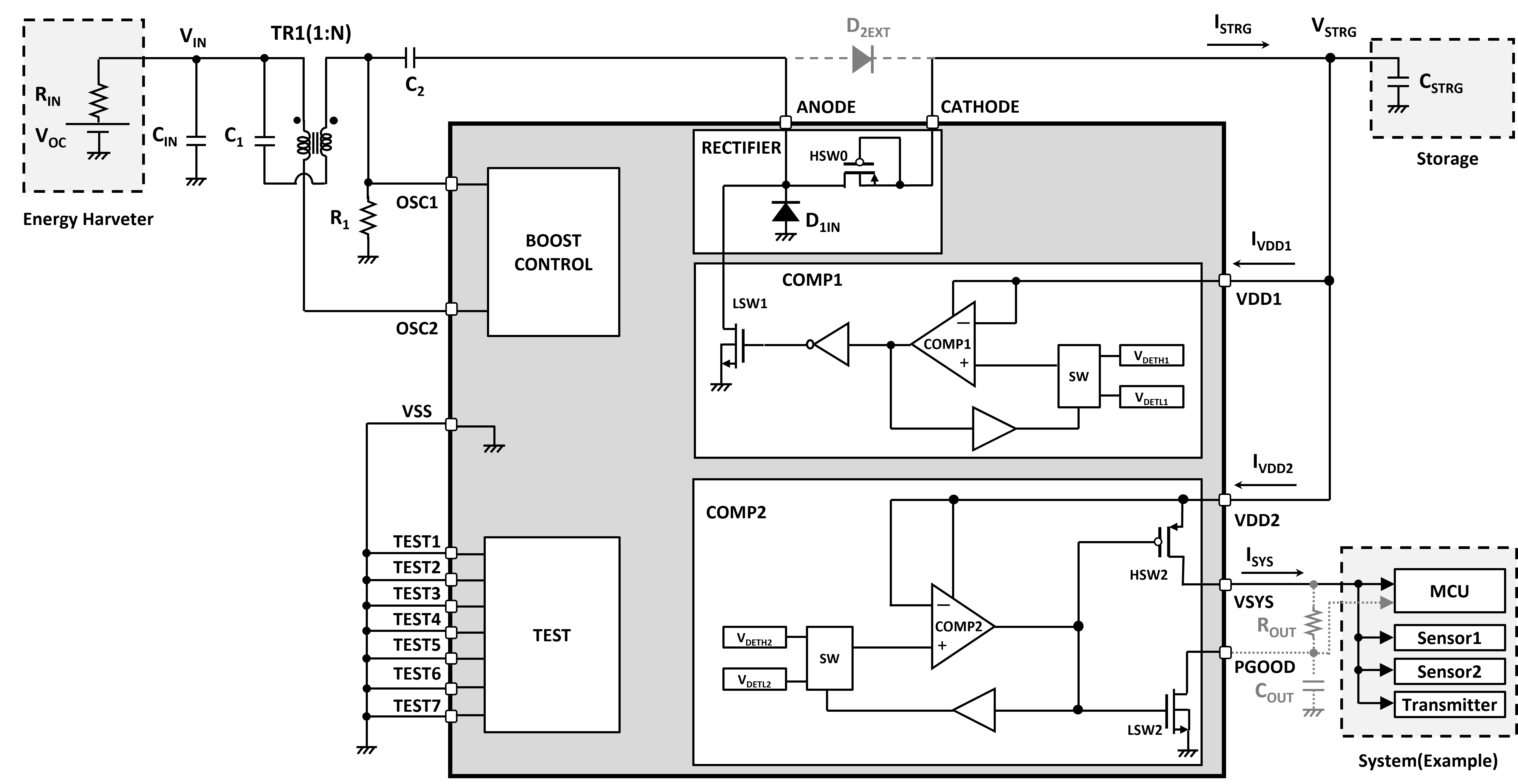

Block Diagram

Block Diagram

Download

2023/01/30

20 pages PDF (English) : 1.12MB

AP4473 Datasheet [220900071-E-00]

10 pages PDF (English) : 779KB

AP447x Series Application Note [AKMEH-E-8]

2023/04/26

10 pages PDF (English) : 1.65MB

AP4473 EVK Manual [AKMEH-E-04]
