Lineup

Millimeter-wave Radar

This is the lineup of attractive products of millimeter-wave radar IC offered by Asahi Kasei Microdevices (AKM).

Lineup is available for automotive applications* and consumer and industrial applications.

* ISO26262 ASIL-B Support

Antenna-in-Module (60GHz band : 57GHz-64GHz)

Automotive applications
Transceiver IC
Antenna-in-Module (AiM)

Consumer and industrial applications
Transceiver IC
Antenna-in-Module (AiM)

Automotive applications
Transceiver IC
for cabin millimeter-wave sensing

Consumer and industrial applications
Transceiver IC
for millimeter-wave sensing

AK5816 EVB by S-Takaya Electronics Industry Co.,Ltd.

Consumer and industrial applications
Transceiver IC
for millimeter-wave sensing

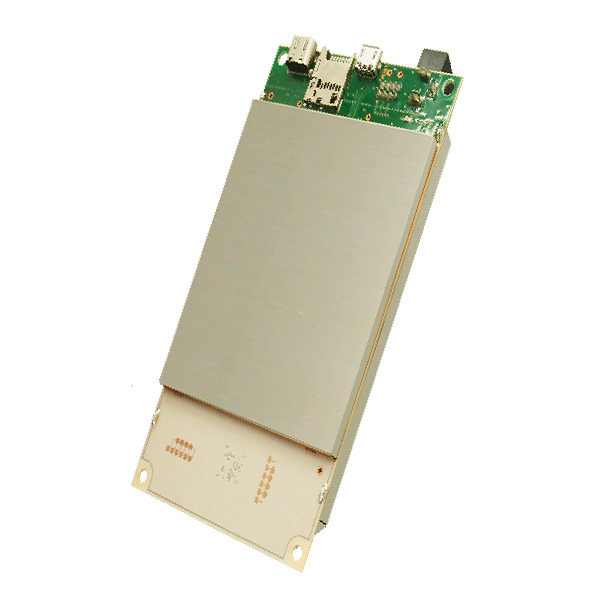

AK5811CP EVB by S-Takaya Electronics Industry Co.,Ltd.

Part Number	Part Status	Applications	Antenna	Number of Channels	MIMO	Operating Frequency Range [GHz]	TX Power/EIRP [dBm / channel]	RX SSB NF / EINF [dB]	ADC Sampling Speed [Msps / channel]	Radar Processing Unit	Interface	Power Consumption (1% duty cycle) [mW]	Operating Temperature [℃]	Device Package	Number of Pins
▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼	▲ ▼

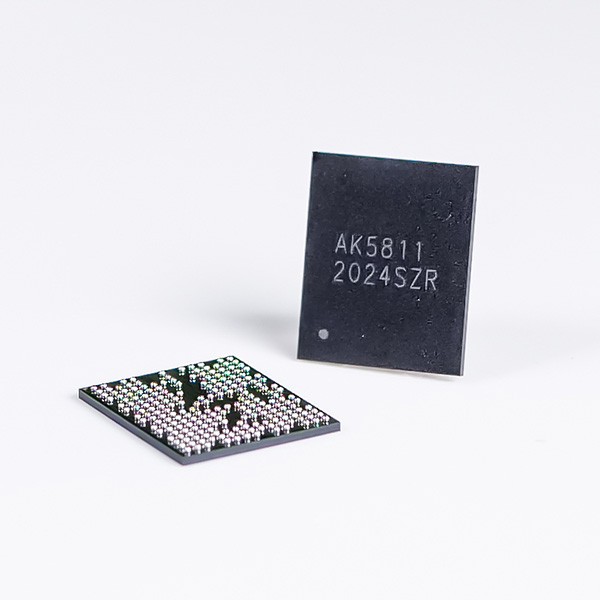

AK5811CP	MP	Consumer / Industrial	-	TX4 / RX4	TDM / BPM / DDM	76 ~ 77 / 77 ~ 81	10	11	53.3	-	CSI-2	260	-40 to 125	BGA	216

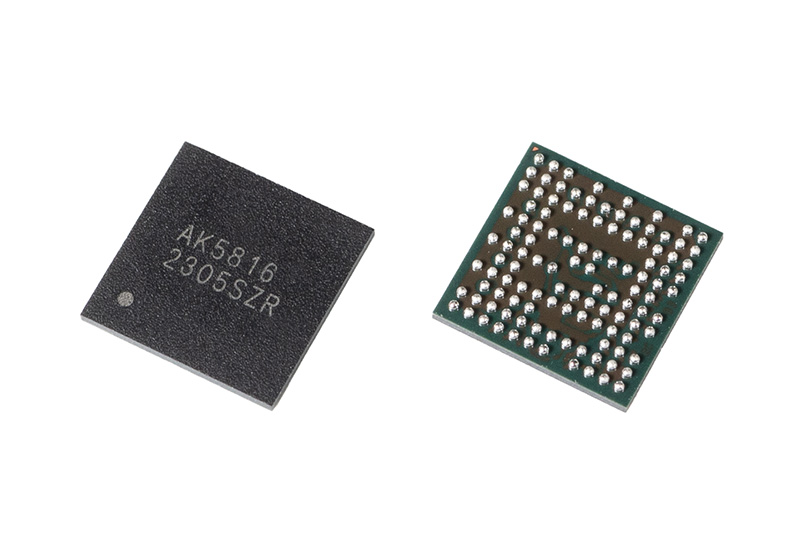

AK5816	MP	Consumer / Industrial	-	TX4 / RX4	TDM	57 ~ 64	8	10	53.3	Yes	CSI-2 / SPI	160	-40 to 105	BGA	115
AK5816AIM	Preview	Consumer / Industrial	AiM	TX4 / RX4	TDM	57 ~ 64	10	7	53.3	Yes	CSI-2 / SPI	160		BGA	124

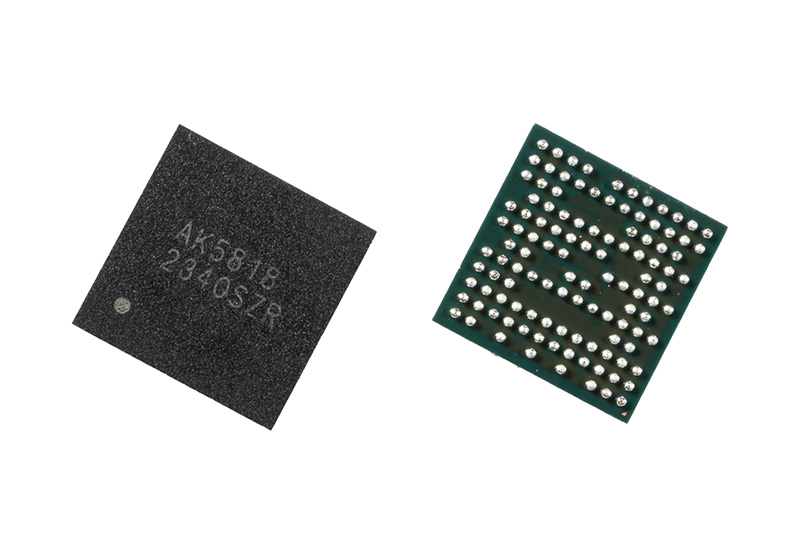

AK5818	MP	Automotive	-	TX4 / RX4	TDM	57 ~ 64	8	10	53.3	Yes	CSI-2 / SPI	160	-40 to 105	BGA	115

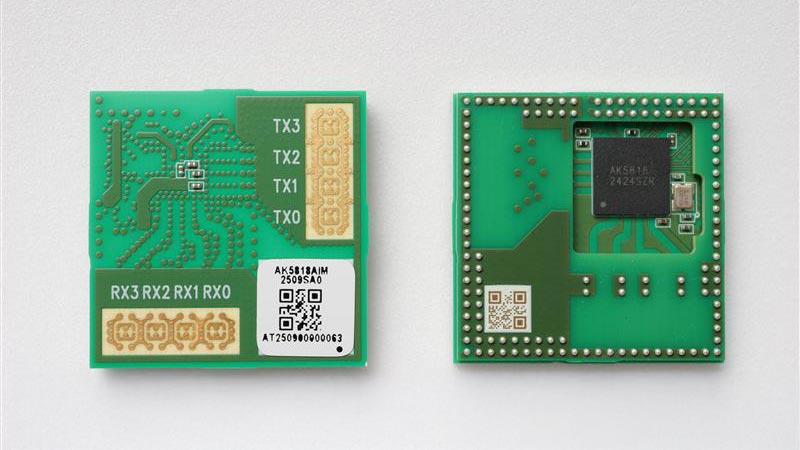

AK5818AIM	Preview	Automotive	AiM	TX4 / RX4	TDM	57 ~ 64	10	7	53.3	Yes	CSI-2 / SPI	160		BGA	124
