What makes AKM different?

Millimeter-wave Radar

Four reasons why the millimeter-wave radar IC of Asahi Kasei Microdevices (AKM) is chosen are described below.

AKM commenced the development of millimeter-wave radars in 2013.
This section explains the reasons why this attractive millimeter-wave radar IC of AKM derived from the accumulated knowledge is selected.

Detection of non-stationary multiple persons individually

Detection of non-stationary multiple persons individually

Millimeter-wave radar IC of AKM achieves the smallest range resolution of 2.2cm and 50[cm] isolation performance* with the following functions:

  • Multiple integration of 4-ch each for transmission and reception
  • Frequency modulation function with max. 7[GHz](57-64[GHz])



This high functionality IC enables the simultaneous detection of multiple persons.

In addition, with its ability of detection of positions of non-stationary persons, it allows applications in various situations.

* Ability to detect multiple persons separately from a radar within the 1m range

Product performance that enables flexible system design

  • Its support for 57-64[GHz] band permits the usage worldwide.
  • The received data can be output either by converting it to target position/reflection intensity information or as it is.
  • High-speed sensing cycle with its high sampling rate of 53.3[Msps/ch]
  • Antennas can be designed freely as no antenna is incorporated.

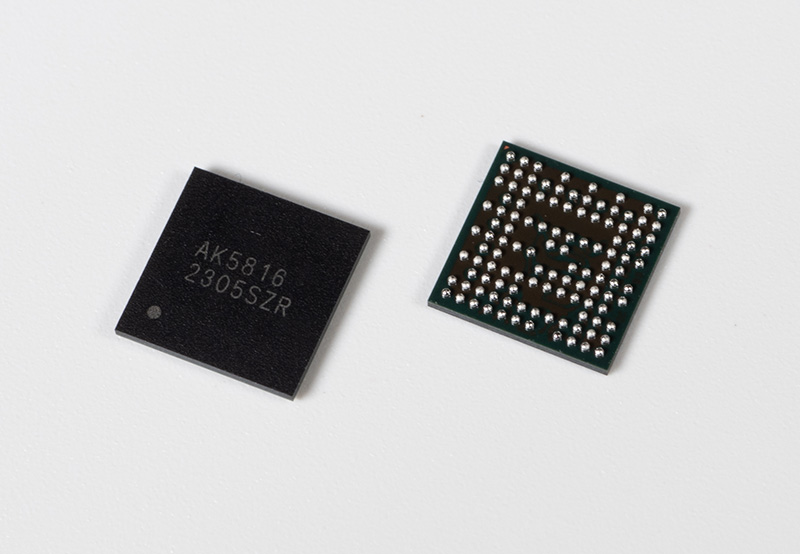

AK5816

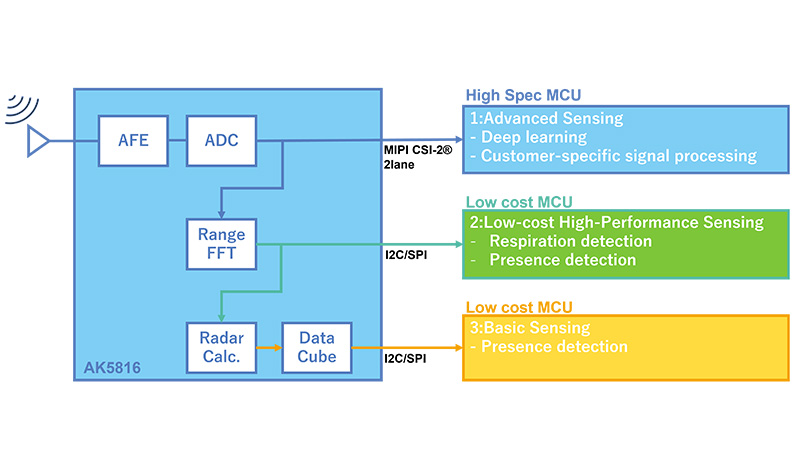

Three system-design options are available according to the applications

Three system-design options are available according to the applications

  1. The use of the high-speed high-accuracy ADC data enables a wide range of computations.
  2. Low-cost and high-level signal processing is possible by combining arithmetic processing performed by built-in IC and inexpensive MCU.
  3. Useful for simple position detection and so on by using arithmetic processing performed by built-in IC.

* MIPI® service marks and logo marks are owned by MIPI Alliance, Inc. and any use of such marks by Asahi Kasei Microdevices Corp. is under license. Other service marks and trade names are those of their respective owners.

Position/respiration detection algorithms

We are currently developing algorithms that can handle various situations.

Please feel free to contact us.

Position/respiration detection algorithms

Lineup

Please check the attractive millimeter-wave radar IC lineup of AKM.

Check the details

Inquiries about Millimeter-wave Radar IC

Please feel free to contact us.

  • Purchase of products and samples
  • Product specifications, technical details, product reference materials, and technical questions
  • Introduction to distributors/representatives
  • Compliance with Environmental Standards
Contact AKM
