EM6011

EOL

Hall Effect ICs (Latch)

Hall Effect ICs (Latch)

EOL

Description

The EM6011 is an alternating magnetic field operation Hall IC whose output changes by detecting an alternating magnetic field perpendicular to the IC marking surface.

Key Features

  • Alternating magnetic field detection
    Alternating detection that detects the magnetic field of both poles of the magnet alternately is possible.

Applications

  •                                 Rotation detection, position detection, open / close detection, current detection, direction detection, etc.


Specifications

Part Number
EM6011
Type
Latch
Power Supply Voltage (MIN.) [V]
3.8
Power Supply Voltage (TYP.) [V]
12
Power Supply Voltage (MAX.) [V]
24
Sensitivity Bop [mT]
2
Sensitivity Brp [mT]
-2
Output stage
Open Drain
Current Consumption (TYP.) [mA]
3
Current Consumption (MAX.) [mA]
5
Drive System
Continuous
Other
Automotive grade
Operating Temperature [℃]
-40 to 150
Device Package
SOT
Number of Pins
3

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
Yes
MSL
MSL1
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
3000
Replacement P/N

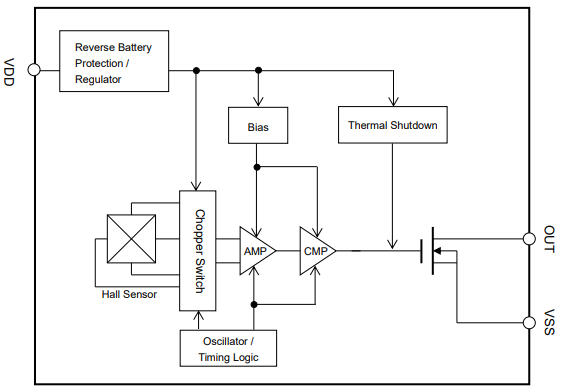

Block Diagram

Block Diagram
