AK4432VT

MP

108dB 192kHz / 32-bit 2 ch Advanced Audio DAC

108dB 192kHz / 32-bit 2 ch Advanced Audio DAC

MP

Description

The AK4432VT is an advanced audio 32-bit DAC, with 2 channels AKM’s VELVET SOUND architecture that has been widely adopted by well-established high-end audio companies. This technology realizes fine sound details with its low-distortion architecture in addition to 32-bit resolution digital filter processing. The digital input supports up to 192 kHz PCM, allowing for high-resolution audio source playback. This advanced audio DAC is capable of TDM daisy chain connection enabling up to eight channels configuration when paired with other AKM devices. The AK4432VT has a clock synchronization function effective when multiple are used in the system and is performance matched with AKM’s quickly becoming popular automotive audio & voice processor, the AK7738, to expand the number of audio DAC channels for the system .
(AKM is Asahi Kasei Microdevices Corporation)

Applications

  •                                 Car Audio, Surround Systems, Portable Audio Players and USB-DACs


Specifications

Part Number
AK4432VT
Number of Channels
2
Analog Output Type
Single
Bits [bit]
32
THD+N [dB]
-91
S/N [dB]
108
Power Supply Voltage (MIN.) [V]
3.0
Power Supply Voltage (TYP.) [V]
3.3
Power Supply Voltage (MAX.) [V]
3.6
2Vrms Line Driver


Headphone Amplifier


Other
VELVETSOUND, Automotive grade
Operating Temperature [℃]
-40 to 105
Device Package
TSSOP
Number of Pins
16

Product Information

Part Status
MP
Pb Free
Yes
Halogen Free
Yes
MSL
MSL2
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
1000
Replacement P/N

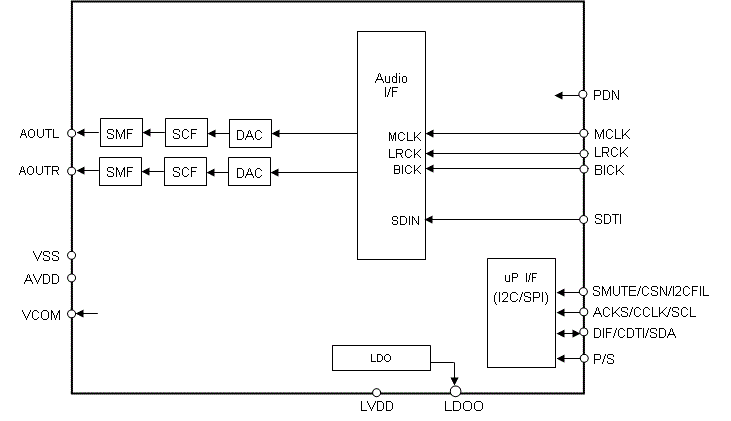

Block Diagram

Block Diagram

VELVET SOUND
