Semiconductor Magnetoresistive Elements
(SMRE)

Suitable for high accuracy detection of gear rotation.

Since a Sn doped single crystal film InSb is used as a material for the sensing element, the element has excellent magnetoresistive temperature characteristics and very small neutral voltage temperature drift.
This element is mainly used for detection of gear rotation.
Semiconductor magnetoresistive element MS product family comprises the back bais holder built-in dual inline package (DIP) type with A/B,Za/Zb phase output as well as small out-line package (SON) type which can be set in thin/small place with A/B phase output.

Products

A differential output semiconductor magnetoresistive element, (SMRE), for module, “m“ = 0.3 gear wheels

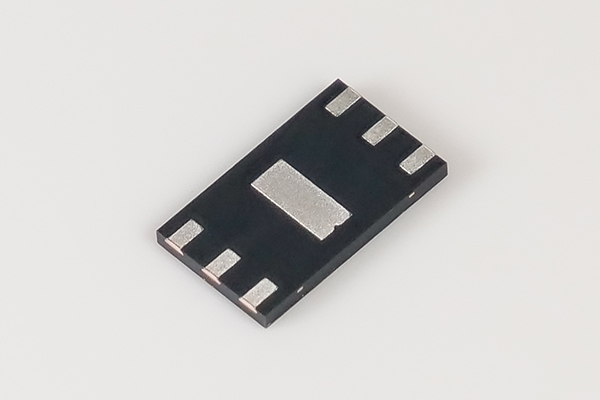

MS0031

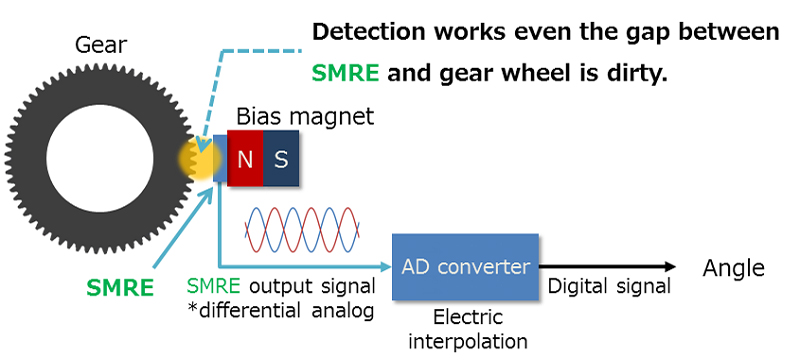

The MS0031 eliminates in-phase noise with differential output signals of A+/A- and B+/B-.  The MS0031 achieves high resolution rotation angle detection exceeding 20-bit from electronic interpolation, achieving top-level performance among magnetoresistive elements*.  This is due to its stunning temperature characteristics while having extremely small variability among individual devices.

● A+/A-, B+/B- Differential Output

SMRE
MS0031 MS0031

Rotary encoder

  • Machine tool spindle position and speed control
  • Machining Machine tool precise rotation angle control
  • Hoisting motor
  • Electrical injection molding machine main shaft control
  • CT scanner control
  • X-ray transfer bed position control
  • Motor control
  • Crane slewing azimuth angle detection

Motor controlling

  • Industrial Robots
  • Machine Tools
  • AC Servo motors

Linear encoder

  • Linear control

Lineup

Part Number

Part
Status

Pitch
[mm]

Input / Output
Resistance (MIN.)
[Ω]

Input / Output
Resistance (TYP.)
[Ω]

Input / Output
Resistance (MAX.)
[Ω]

Number of Elements

Other

Operating
Temperature
[℃]

Device
Package

Number
of Pins
▲
▼
▲
▼
▲
▼
▲
▼
▲
▼
▲
▼
▲
▼
▲
▼
▲
▼
▲
▼
▲
▼
MS0020

MP

0.634

205









330








1
















-40 to 100








SON








4














MS0030










MP








0.96








270
















375








1
















-40 to 125








SON








4














MS0031










MP








0.96








280
















480








1
















-40 to 125








SON








6














MS0041










MP








1.28








270
















375








1
















-40 to 125








SON








4














MS0042










MP








1.28








290
















420








2
















-40 to 125








SON








8














MS0043










MP








1.28








275
















410








1
















-40 to 125








SON








6














MS0050










MP








1.6








270
















375








1
















-40 to 125








SON








4














MS0060










MP








1.92








300
















500








1
















-40 to 125








SON








4














MS0082










MP








2.512








465
















755








1
















-40 to 125








SON








4














MS0083










MP








2.624








290
















480








1
















-40 to 125








SON








6














MSP042










MP








1.28








230
















375








2
















-40 to 100








DIP








8














MSP043










MP








1.28








230
















375








2
















-40 to 100








DIP








8














MSP082










MP








2.512








465
















755








2
















-40 to 100








DIP








8














MSP204










NRND








6.84








290
















420








4
















-40 to 125








DIP








8














MSP254










NRND








8.64








290
















420








4
















-40 to 125








DIP








8
