Current Sensor ICs

고정밀, 높은 S/N 비 그리고 고속 응답의
Open형 전류 센서 IC입니다.

제품

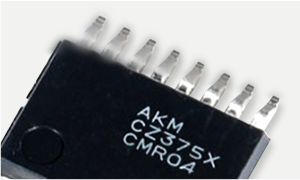

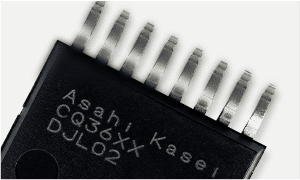

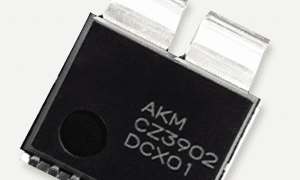

Asahi Kasei Microdevices (AKM), the Hall element leader, has developed advanced current sensors "Currentier" using the high-sensitivity compound semiconductor technology it has cultivated through its Hall elements, combined with Asahi Kasei Microdevices' advanced package design and analog circuit design technologies.

The name "Currentier" was made by combining "Current" and "Frontier". We named our product Currentier because it is a leading product in the field of current sensors thanks to its superb performance.

"Currentier" is magnetic open-type current sensor with a built-in high-sensitivity Hall element. They can detect both DC and AC currents quickly and with a high degree of accuracy. Despite their small size, they generate less heat and have high isolation. Currentiers are safe, high performance products that are available in many models and which can be used for current detection in a variety of applications, helping solve your problems.

What makes AKM different ?

Features of Currentier

  1. Low heat generation
  2. Wide current detection range
  3. High speed
  4. High isolation
  5. High resolution and high accuracy

Basic knowledge of current detection

Currentiers are classified as coreless current sensors, which is one of the current sensing methods. Other current detection methods include shunt resistor + insulated amplifier/insulated ADC and cored current sensors.

In the "Tutorials" section we explain the advantages and disadvantages of each detection method in detail. This section also provides information to help you select the right current sensor for your application and useful information that can help you solve your current detection problems.

  • Types and Characteristics of Current Sensors
  • What is a coreless current sensor ?

Tutorials

Search by Application

Currentiers can be used in a variety of applications.
The "Application" section contains examples of how Currentiers can be used to solve problems in individual applications, as well as recommendations regarding which products to use in each application.

  • AC servo / General Inverter (Drives) for Industry
  • Photovoltaic Inverter

Applications

Search by Products

There is an extensive lineup of Currentier series that can be used for various applications.
In the "Lineup" section, you can select products based on their performance and specifications.

Product Map / Selection Guide


Lineup

For Engineers under design or Users

In the "Design Support" section, you can find various tools, documents, FAQs, etc. for your design.

Datasheets / Application Notes / Tools / Circuit Examples / FAQ

Design Support

Selection Table

Part Number
Part
Status
Package Type
(Mounting style)
Maximum
Effective Current
[Arms]
Linear Sensing
Range (MIN.)
[A]
Linear Sensing
Range (MAX.)
[A]
Sensitivity
[mV/A]
Response Time
[μsec]
Power Supply
Voltage (MIN.)
[V]
Power Supply
Voltage (TYP.)
[V]
Power Supply
Voltage (MAX.)
[V]
Other
Operating
Temperature
[℃]
Device
Package
Number
of Pins

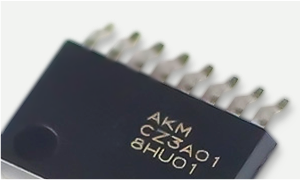

AK3101
EOL
SMD
20
-10.7
10.7
195
2
4.5
5.0
5.5


-40 to 90
SOP
14
AK3102
EOL
SMD
20
-21
21
100
2
4.5
5.0
5.5


-40 to 90
SOP
14
AK3103
EOL
SMD
20
-35
35
60
2
4.5
5.0
5.5


-40 to 90
SOP
14
AK310H
EOL
SMD
20
-42
42
50
2
4.5
5.0
5.5


-40 to 90
SOP
14
CQ2063
EOL
through hole type
50
-35
35
60
1
4.5
5.0
5.5


-40 to 90
SIP
7
CQ2064
EOL
through hole type
50
-54
54
40
1
4.5
5.0
5.5


-40 to 90
SIP
7
CQ2065
EOL
through hole type
50
-85
85
25
1
4.5
5.0
5.5


-40 to 90
SIP
7
CQ206A
EOL
through hole type
50
-46
46
45
1
4.5
5.0
5.5


-40 to 90
SIP
7
CQ206B
EOL
through hole type
50
0
45
90
1
4.5
5.0
5.5


-40 to 90
SIP
7
CQ2092
EOL
SMD
20
-21
21
100
1
4.5
5.0
5.5


-40 to 90
SIP
7
CQ2093
EOL
SMD
20
-35
35
60
1
4.5
5.0
5.5


-40 to 90
SIP
7
CQ209A
EOL
SMD
20
-31.8
31.8
66
1
4.5
5.0
5.5


-40 to 90
SIP
7
CQ209B
EOL
SMD
20
-35
0
115
1
4.5
5.0
5.5


-40 to 90
SIP
7
CQ209D
EOL
SMD
20
-41
41
50
1
4.5
5.0
5.5


-40 to 90
SIP
7
CQ2232
Preview
through hole type
50
-21
21
62.5
1
2.7
3.3
3.63


-40 to 110
SIP
7
CQ2233
Preview
through hole type
50
-35
35
37.5
1
2.7
3.3
3.63


-40 to 110
SIP
7
CQ2234
Preview
through hole type
50
-54
54
24.5
1
2.7
3.3
3.63


-40 to 110
SIP
7
CQ2235
Preview
through hole type
50
-85
85
15.5
1
2.7
3.3
3.63


-40 to 110
SIP
7
CQ2332
Preview
through hole type
50
-21
21
100
1
4.5
5.0
5.5


-40 to 110
SIP
7
CQ2333
Preview
through hole type
50
-35
35
60
1
4.5
5.0
5.5


-40 to 110
SIP
7
CQ2334
Preview
through hole type
50
-54
54
40
1
4.5
5.0
5.5


-40 to 110
SIP
7
CQ2335
Preview
through hole type
50
-85
85
25
1
4.5
5.0
5.5


-40 to 110
SIP
7
CQ2366
Preview
through hole type
50
-170
170
12
1.5
4.5
5.0
5.5


-40 to 110
SIP
7
CQ236B
EOL
through hole type
50
0
25
160
1
4.5
5.0
5.5


-40 to 110
SIP
7
CQ3200
Preview
SMD
20
-8.5
8.5
155
0.5
2.7
3.3
3.63


-40 to 90
VSOP
10
CQ3201
Preview
SMD
20
-10.1
10.1
130
0.5
2.7
3.3
3.63


-40 to 90
VSOP
10
CQ3202
Preview
SMD
20
-21.1
21.1
62.5
0.5
2.7
3.3
3.63


-40 to 90
VSOP
10
CQ3203
Preview
SMD
20
-35.7
35.7
37
0.5
2.7
3.3
3.63


-40 to 90
VSOP
10
CQ3204
Preview
SMD
20
-44
44
30
0.5
2.7
3.3
3.63


-40 to 90
VSOP
10
CQ320A
Preview
SMD
20
-29.3
29.3
45
0.5
2.7
3.3
3.63


-40 to 90
VSOP
10
CQ320B
Preview
SMD
20
-1.1
20.9
120
0.5
2.7
3.3
3.63


-40 to 90
VSOP
10
CQ3300
Preview
SMD
20
-6.4
6.4
325
0.5
4.5
5.0
5.5


-40 to 90
VSOP
10
CQ3301
Preview
SMD
20
-10.7
10.7
195
0.5
4.5
5.0
5.5


-40 to 90
VSOP
10
CQ3302
Preview
SMD
20
-21
21
100
0.5
4.5
5.0
5.5


-40 to 90
VSOP
10
CQ3303
Preview
SMD
20
-35
35
60
0.5
4.5
5.0
5.5


-40 to 90
VSOP
10
CQ330A
Preview
SMD
20
-31.8
31.8
66
0.5
4.5
5.0
5.5


-40 to 90
VSOP
10
CQ330B
Preview
SMD
20
0
21
195
0.5
4.5
5.0
5.5


-40 to 90
VSOP
10
CQ330E
Preview
SMD
20
0
20.5
200
0.5
4.5
5.0
5.5


-40 to 90
VSOP
10
CQ330F
Preview
SMD
20
-2
42
80
0.5
4.5
5.0
5.5


-40 to 90
VSOP
10
CQ330G
Preview
SMD
20
-4.5
4.5
450
0.5
4.5
5.0
5.5


-40 to 90
VSOP
10
CQ330H
Preview
SMD
20
-42
42
50
0.5
4.5
5.0
5.5


-40 to 90
VSOP
10
CQ330J
Preview
SMD
20
-2
42
82.7
0.5
4.5
5.0
5.5


-40 to 90
VSOP
10
CZ3700
Preview
SMD
60
-5.3
5.3
400
1
4.5
5.0
5.5


-40 to 105
SOP
10
CZ3701
Preview
SMD
60
-10.7
10.7
200
1
4.5
5.0
5.5


-40 to 105
SOP
10
CZ3702
Preview
SMD
60
-21.5
21.5
100
1
4.5
5.0
5.5


-40 to 105
SOP
10
CZ3703
Preview
SMD
60
-36
36
60
1
4.5
5.0
5.5


-40 to 105
SOP
10
CZ3704
Preview
SMD
60
-54
54
40
1
4.5
5.0
5.5


-40 to 105
SOP
10
CZ3705
Preview
SMD
60
-86.4
86.4
25
1
4.5
5.0
5.5


-40 to 105
SOP
10
CZ3706
Preview
SMD
60
-180
180
12
1
4.5
5.0
5.5


-40 to 105
SOP
10
CZ3720
Preview
SMD
60
-0.4
10.3
400
1
4.5
5.0
5.5


-40 to 105
SOP
10
CZ3721
Preview
SMD
60
-0.8
20.6
200
1
4.5
5.0
5.5


-40 to 105
SOP
10
CZ3722
Preview
SMD
60
-1.7
41.3
100
1
4.5
5.0
5.5


-40 to 105
SOP
10
CZ3723
Preview
SMD
60
-2.9
68.8
60
1
4.5
5.0
5.5


-40 to 105
SOP
10
CZ3724
Preview
SMD
60
-4.4
103.4
40
1
4.5
5.0
5.5


-40 to 105
SOP
10
CZ3725
Preview
SMD
60
-7.1
165.8
25
1
4.5
5.0
5.5


-40 to 105
SOP
10
CZ3726
Preview
SMD
60
-14.9
345.2
12
1
4.5
5.0
5.5


-40 to 105
SOP
10
CZ3813
EOL
SMD
40
-33
33
60
2
4.5
5.0
5.5


-40 to 125
SOP
10
CZ3814
EOL
SMD
40
-50
50
40
2
4.5
5.0
5.5


-40 to 125
SOP
10
CZ3815
EOL
SMD
40
-60
60
33.3
2
4.5
5.0
5.5


-40 to 125
SOP
10
CZ3A01
Preview
SMD
50
-12.9
12.9
120
1
3.0
3.3
3.6


-40 to 85
SOP
10
CZ3A02
Preview
SMD
50
-15.5
15.5
100
1
3.0
3.3
3.6


-40 to 85
SOP
10
CZ3A03
Preview
SMD
50
-22.1
22.1
70
1
3.0
3.3
3.6


-40 to 85
SOP
10
CZ3A04
Preview
SMD
50
-32.2
32.2
48
1
3.0
3.3
3.6


-40 to 85
SOP
10
CZ3A05
Preview
SMD
50
-64.5
64.5
24
1
3.0
3.3
3.6


-40 to 85
SOP
10
CZ3A06
Preview
SMD
50
-103.3
103.3
15
1
3.0
3.3
3.6


-40 to 85
SOP
10
CZ3A07
Preview
SMD
50
-129.1
129.1
12
1
3.0
3.3
3.6


-40 to 85
SOP
10
CZ3AG1
Preview
SMD
50
-11.6
11.6
120
3.6
4.5
5
5.5


-40 to 85
SOP
10
CZ3AG2
Preview


50
-14
14
100
3.6
4.5
5.0
5.5


-40 to 85
SOP
10
CZ3AG3
Preview


50
-20.0
20.0
70
3.6
4.5
5.0
5.5


-40 to 85
SOP
10
CZ3AG4
Preview
SMD
50
-29.1
29.1
48
3.6
4.5
5
5.5


-40 to 85
SOP
10
CZ3AG5
Preview
SMD
50
-58.3
58.3
24
3.6
4.5
5
5.5


-40 to 85
SOP
10
CZ3AG6
Preview
SMD
50
-93.3
93.3
15
3.6
4.5
5
5.5


-40 to 85
SOP
10
CZ3AG7
Preview


50
-116.6
116.6
12
3.6
4.5
5.0
5.5


-40 to 85
SOP
10
