Packing information

AKM original packing

The packing design which can maintain the quality in spite of a transport method and the environment is being done.

Corresponding to JEDEC standard

The packing specification of LSI parts in AKM are comply with the standard of JEDEC (J-STD-033C).

AKM will change inner label which apply to the products shipped from Oct 2016.

Part number

Packing classification indexes of a part number are not included in this website.

Example: "AK□□□□"

When ordering, part numbers are followed by the packing classification index: L, E1 and E2, which represents the taping direction.

Example: "AK□□□□-L", "AK□□□□-E1", "AK□□□□-E2"

[Note]

You may sometimes see "P" or "-8" character in AKM part number. This type of the part number is internally used and it is the same product as the one without these characters.

Example: "AK□□□□-8" and "AK□□□□" are the same products.

Taping direction

Packing classification indexes at the end of a part number indicate the taping direction.

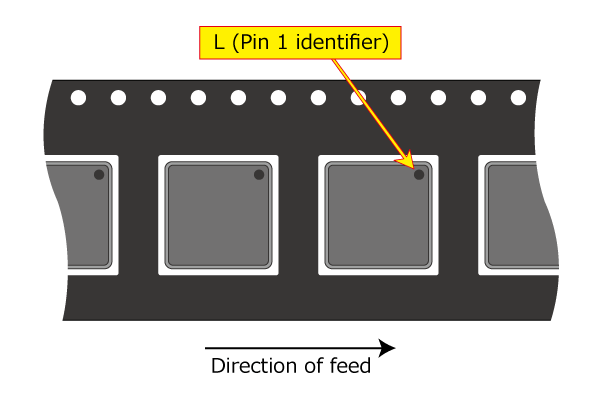

"L"

Packing classification index: L Packing classification index: L

Pin 1 identifier is in front of you towards the direction of feed.
(Pin 1 is on the same side of the feed hole.)

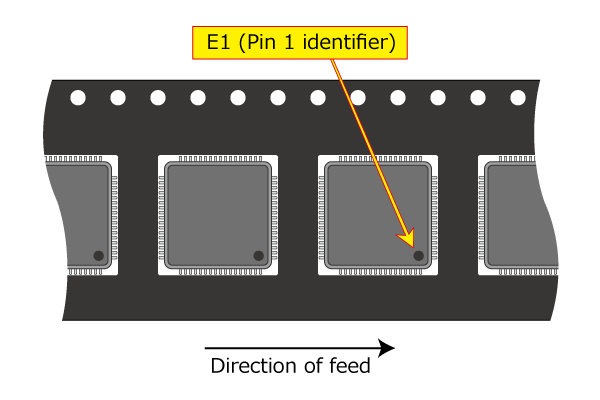

"E1"

Packing classification index: E1 Packing classification index: E1

Pin 1 identifier is in front of you towards the direction of feed.
(Pin 1 is on the opposite side of the feed hole.)

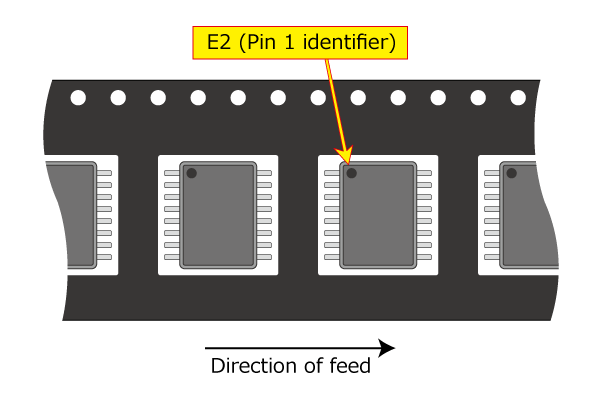

"E2"

Packing classification index: E2 Packing classification index: E2

Pin 1 identifier is behind you towards the direction of feed.
(Pin 1 is on the same side of the feed hole.)

JEDEC standard

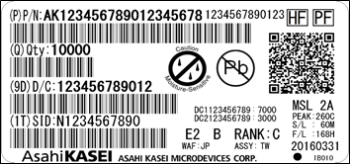

Label

A new label that complies with JDEC standard will be used on the production from Oct. 2016.

Label Label
Code Description
(P) P/N Customer Parts Number
(Q) Qty Quantity
(9D) D/C Date Code
(1T) SID Reel ID
MSL Moisture Sensitivity Level
PEAK Maximum reflow temperature
S/L Shelf Life
F/L Floor Life
SEAL DATE Packing date

Shipment packing

The shipment packing type depends on MSL classification.

Type Tape / Tray / Tube
MSL (Moisture Sensitivity Level) 1 1 * 2 2a 3
Moisture Barrier Bag No Yes Yes Yes Yes
Desiccant No Yes Yes Yes Yes
HIC (Humidity Indicator Card) No
Yes Yes Yes

* Several products adopt moisture-proof packing and include a desiccant.

MSL1

Non-Moisture-proof

MSL1
Non-Moisture-proof
Packing Type
  step 1 step 2 step 3
Reel






Tray





MSL1

Moisture-proof

MSL1
Moisture-proof
Packing Type
  step 1 step 2 step 3
Reel










Tray






MSL2

MSL 2a

MSL 3

Moisture-proof

MSL2
MSL 2a
MSL 3
Moisture-proof
Packing Type
  step 1 step 2 step 3
Reel







Tray
