AK4436VN

MP

108dB 192kHz / 32-bit 6 ch Advanced Audio DAC

108dB 192kHz / 32-bit 6 ch Advanced Audio DAC

MP

Description

The AK4436VN is an 6 channel 32-bit DAC which corresponds to digital audio systems. An internal circuit includes newly developed 32-bit Digital Filter achieving short group delay and high quality sound.
The AK4436VN has single-ended SCF outputs, increasing performance for systems with excessive clock jitter. The AK4436VN is ideal for a wide range of applications that demands high sound quality including Home Theater and Car audio surround systems. It is housed in a 32-pin QFN package, saving more board space.

Applications

  •                                 AV Receivers, CD / SACD Players, Network Audios, USB DACs, USB Headphones, Sound Plate / Bars, Car Audios, Automotive External Amplifiers, Measuring Instruments and Control Systems


Specifications

Part Number
AK4436VN
Number of Channels
6
Analog Output Type
Single
Bits [bit]
32
THD+N [dB]
-91
S/N [dB]
108
Power Supply Voltage (MIN.) [V]
3.0
Power Supply Voltage (TYP.) [V]
3.3
Power Supply Voltage (MAX.) [V]
3.6
2Vrms Line Driver


Headphone Amplifier


Other
VELVETSOUND, Automotive grade
Operating Temperature [℃]
-40 to 105
Device Package
HWQFN
Number of Pins
32

Product Information

Part Status
MP
Pb Free
Yes
Halogen Free
Yes
MSL
MSL2
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
1000
Replacement P/N

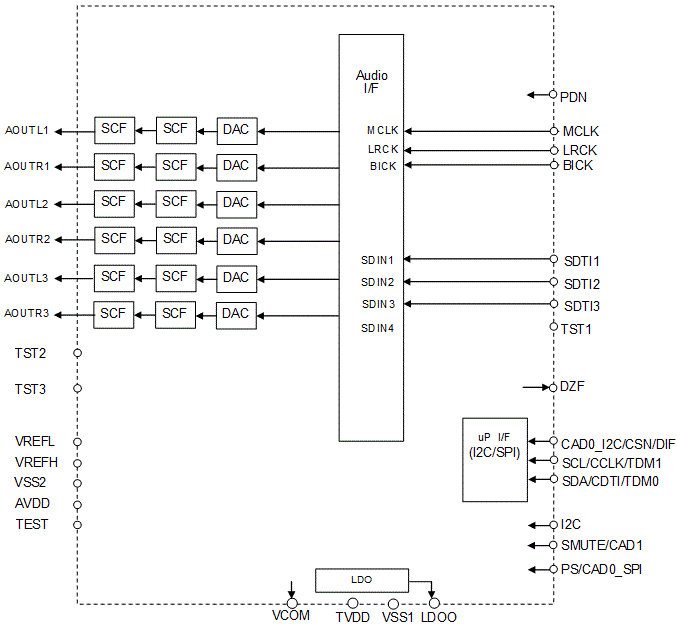

Block Diagram

Block Diagram

Quality Data

The AKM Group prepares quality data.
