AK1553

NRND

5.9GHz RF Transceiver with Power Amplifier for ETC

5.9GHz RF Transceiver with Power Amplifier for ETC

NRND

Description

AK1553 and AK1553E are 5.9GHz RF transceiver with power amplifier.
The AK1553 for ETC2.0 and the AK1553E for ETC1.0 systems have optimized characteristics for ETC products.

Key Features

  • Equipped with ETC compatible power amplifier

Applications

  •                                 ETC (Electronic Toll Collection System)

Specifications

Part Number
AK1553
Power Supply Voltage (MIN.) [V]
3.15
Power Supply Voltage (TYP.) [V]
3.3
Power Supply Voltage (MAX.) [V]
3.45
Current Consumption [mA]








                                    Input / Output  Frequency Range [GHz]



5.9








                                    Receiver Sensitivity [dBm]



-80 (TYP.), -70 (MAX.)








                                    Output Power [dBm]



14 (MIN.)








                                    Modulation /  Demodulation



ASK / QPSK








                                    Other



Automotive grade








                                    Operating Temperature [℃]



-40 to 85








                                    Device Package



HVQFN








                                    Number of Pins



48


















Product Information












                                    Part Status



NRND








                                    Pb Free



Yes








                                    Halogen Free



Yes








                                    MSL



MSL3








                                    Packaging



TAPE








                                    JEDEC Standard Packaging



Compliant








                                    Minimum Order Quantity [pcs.]



1000








                                    Replacement P/N

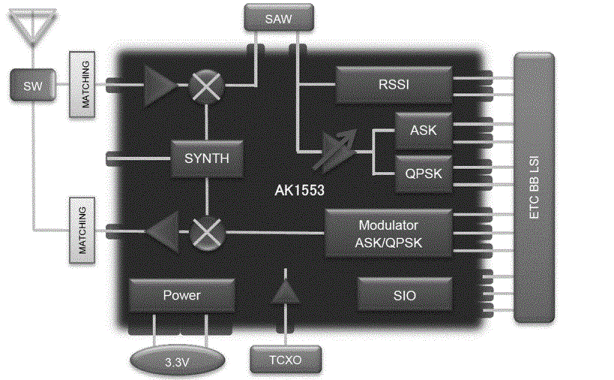

Block Diagram









                    Block Diagram
