Millimeter-wave Radar
Quickly verifies detection of human states giving consideration to privacy.
Provides an evaluation kits that support smooth product integration.
These evaluation kits are equipped with AiM (Antenna-in-Module), a millimeter-wave radar module with an integrated antenna.
Even without specialized knowledge of antenna design or signal processing, you can quickly detect human states, enabling smooth verification for installation.
In the Dedicated Page, we introduce useful information for development, including usage examples, setup instructions, and design materials of the evaluation kits.
Some models are also available for purchase on e-commerce sites. If you have any questions, please feel free to contact us.
Evaluation Kits
Asahi Kasei Microdevices (AKM) offers easy-to-use evaluation kits for our millimeter-wave solutions.
Our kits support a wide range of applications requiring privacy-conscious sensing, such as Agetech (technologies supporting senior living), residential facilities, and smart appliances.
AKM’s basic algorithms are available online, allowing you to begin the initial evaluation of sensing functions immediately. All models support output of measurement data, enabling you to develop your own algorithms as well.
Measurement Examples
With the evaluation kit, you can implement the following types of sensing without using a camera.

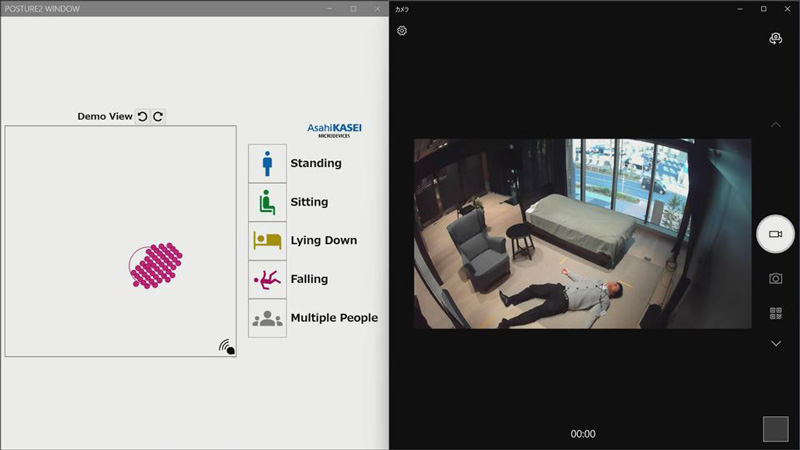

- Posture and Fall Detection
Captures motion changes in 3D with high precision. Also supports fall detection, making it suitable for monitoring the elderly or for safety management as a non-contact sensor.
Posture and Fall Detection

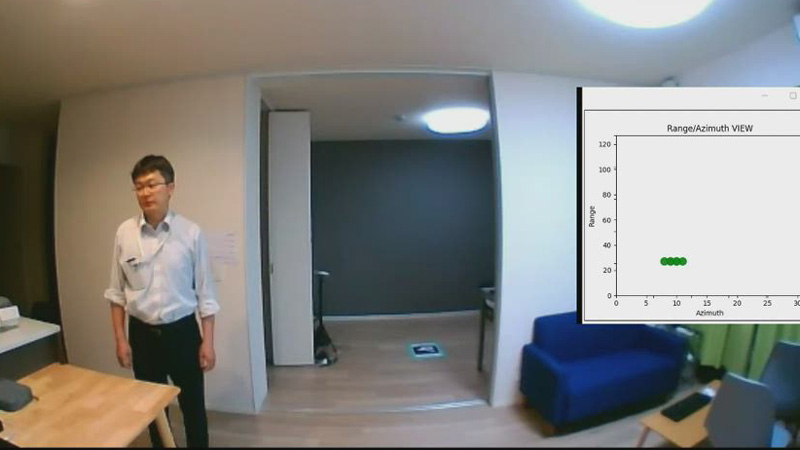

- Position Detection
Tracks a person's position in a room and flow line in real time. Can be used as a control trigger under a smart home or IoT device.
Position Detection

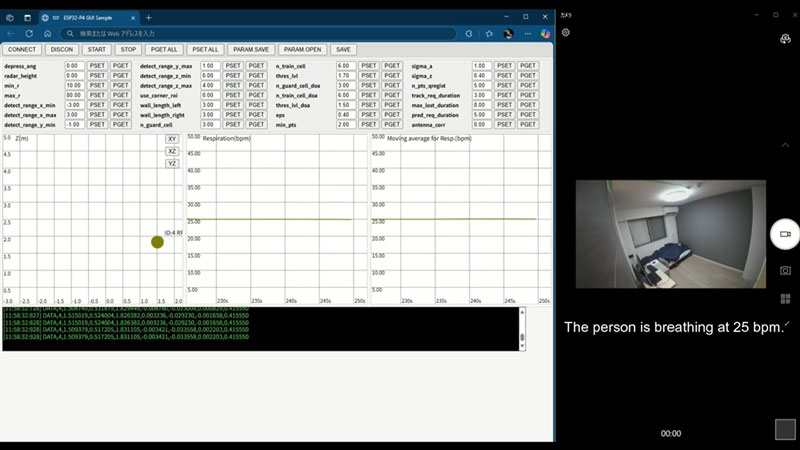

- Respiration Detection
Detects the presence and cycle of breathing by capturing subtle chest movements. Effective for sleep monitoring and healthcare applications.
Respiration Detection
These are just a few typical application examples.
The evaluation kit supports measurement data output and incorporation of custom algorithms, offering flexibility to adapt to various sensing applications according to customer needs.
For more detailed demonstrations on videos, evaluation kit setup instructions, circuit diagrams, and layout data, please refer to the Dedicated Page below.
*Note: This demo video uses our 60 GHz product. The camera footage is for reference only; the system itself detects human states without using a camera.

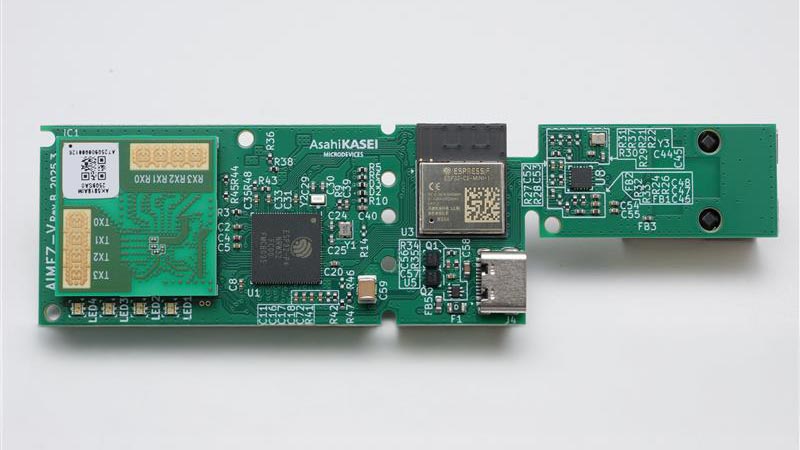

AIMEZ-V
This is a versatile model that is easy to use and implement, and available online.
With the dedicated GUI, states such as respiration, position, and posture can be evaluated easily and non-invasively, enabling smooth deployment and verification even with limited development resources.
Key Features
- Millimeter-wave transceiver : AK5816AIM / AK5818AIM (4-channel TX, 4-channel RX)
- SoC : ESP32-P4 (dual-core RISC-V® , 400MHz, 32MB PSRAM, 16MB Flash memory)
- Multiple interfaces supported : USB, Ethernet, Wi-Fi® , Bluetooth® Low Energy
- Data output : Point cloud and ADC_raw data saved in CSV format
- AKM algorithms : Compatible with AKM-developed algorithms
- GUI : Simple and user-friendly interface
* SoC: System on Chip
* RISC-V® is a registered trademark of RISC-V International.
* Wi-Fi® is a registered trademark of Wi-Fi Alliance.
* Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
How to Use
The required software is available online.
By following the video instructions, you can easily begin camera-free human state detection.
Please refer to the Dedicated Page for detailed setup instructions.

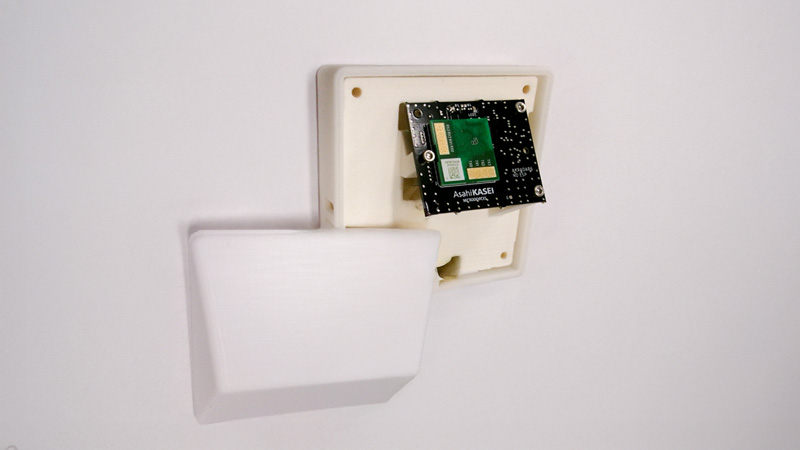

LUMI
This model is equipped with a high-performance SoC and supports human state detection using machine learning.
It also supports implementation of proprietary algorithms that leverage high-precision millimeter-wave sensors and AI technology, enabling advanced processing and development.
Key Features
- Millimeter-wave Transceiver : AK5816AIM / AK5818AIM (4 TX channels, 4 RX channels)
- SoC : Renesas RZ/G2LC (Cortex®-A55 1.2GHz Dual-core)
- AKM Algorithm : Pre-installed and runs on the microcontroller; supports position and posture estimation
- Point Cloud Data Storage : CSV output for customer-developed algorithm
- GUI : Simple and user-friendly interface
* Cortex® is a registered trademark of Arm Limited.
* This model is available to selected customers. If you are interested, please contact us for further details.
Antenna-in-Module (AiM)

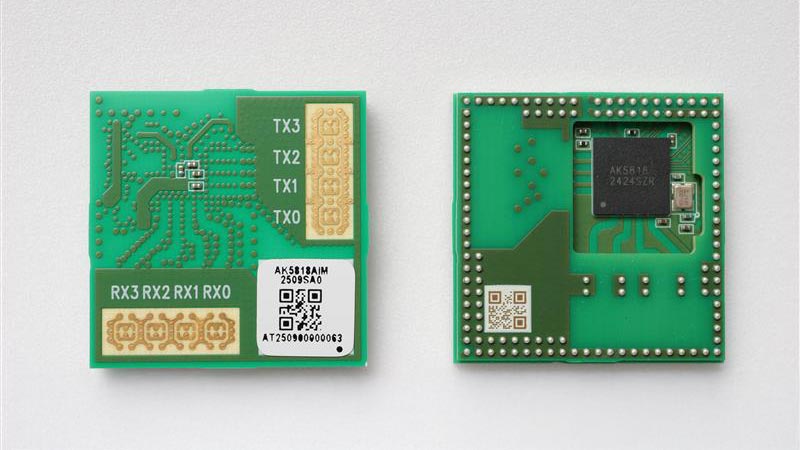

AK5816AIM / AK5818AIM
These Antenna-in-Module (AiM) millimeter-wave radar modules “AK5816AIM / AK5818AIM” are compact, high-performance modules that combine the millimeter-wave radar IC (AK5816 / AK5818) and antenna, supporting 3D sensing.
These modules feature 4-channel transmission and 4-channel reception, enabling multi-channel measurement with high angular resolution. They enable precise detection of human positions, movements, and falls. With the antenna integrated into the module, they can be used in combination with an external MCU (Microcontroller Unit) or SoC. This allows you to immediately utilize the 3D sensing functions without requiring expertise in antenna designs or high-frequency circuit designs.
Furthermore, AK5816AIM / AK5818AIM can be directly mounted onto FR-4 boards (glass epoxy substrates) using standard Surface-Mount Technology (SMT), making it easy to integrate them into existing products.
The millimeter-wave radar ICs “AK5816 / AK5818” are equipped with a Radar Processing Unit (RPU), allowing you to directly extract 3D point cloud data and focus on developing algorithms based on that data.
We offer two module types depending on your application needs:
- AK5816AIM : Compact millimeter-wave radar module designed for consumer electronics, industrial equipment, and IoT devices.
- AK5818AIM : High-reliability millimeter-wave radar module that meets automotive-grade requirements.
For Those Considering Implementation: Dedicated Page with Use Cases and Design Resources
For Those Who Want to Learn How to Utilize the Evaluation Kit Before Implementation
The Dedicated Page helps you maximize the use of our evaluation kits before implementation, with examples of millimeter-wave radar modules and their possible applications. You can check real-world examples and ideas for applications prior to implementation.
To help your design evaluation proceed smoothly, we also provide circuit diagrams, layout data for the evaluation boards, and detailed user guides including instructional videos.
If you wish to access, please submit a request using the form below.
If you wish to view the exclusive Millimeter-Wave Evaluation Kit Dedicated Page, please complete the form below.
We will send the URL of the Dedicated Page to your registered email address.
