AK1222

EOL

100MHz ~ 900MHz Low Power Mixer

100MHz ~ 900MHz Low Power Mixer

EOL

Description

The AK1222 is a low current consumption and high linearity frequency converter.
It supports input from 100MHz to 900MHz and output from 20MHz to 100MHz, and IIP3 (Third Order Input Intercept Point) can be adjusted by external resistor.

Key Features

  • High linear characteristic

Applications

  •                                 Two-way Radios (PMR / LMR), Radio Communications for disaster prevention, Marine Radios, Amateur Radios, etc.


Specifications

Part Number
AK1222
Description
Down Converter
Input Frequency (MIN.) [MHz]
100
Input Frequency (TYP.) [MHz]


Input Frequency (MAX.) [MHz]
900
Output Frequency (MIN.) [MHz]
20
Output Frequency (TYP.) [MHz]


Output Frequency (MAX.) [MHz]
100
Gain [dB]
-2  (@ 600MHz, 22kohm)
IIP3 [dBm]
11  (@ 600MHz, 22kohm)
SSB NF [dB]
12 (@ 600MHz, 22kohm) Design guarantee value
LO Input [dBm]
-5 or more
Current Consumption (MIN.) [mA]
2.9
Current Consumption (TYP.) [mA]


Current Consumption (MAX.) [mA]
7.9
Other


Operating Temperature [℃]


Device Package
HUQFN
Number of Pins
16

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
No
MSL
MSL1
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
5000
Replacement P/N

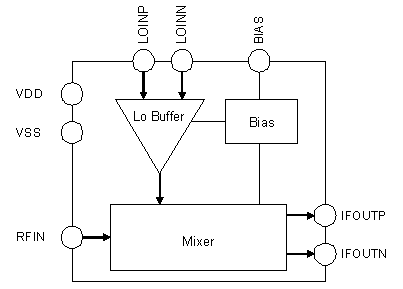

Block Diagram

Block Diagram
