AK8772

EOL

Hall Effect ICs (Latch)

Hall Effect ICs (Latch)

EOL

Description

The AK8772 is a microminiature latch type Hall IC that integrates a Hall element and a waveform shaping IC.
The AK8772 has a power-down function that significantly reduces current consumption during sleep. In addition, current consumption during operation can be reduced by intermittent driving.

Key Features

  • Intermittent drive operation
    Because of the intermittent drive operation, current consumption during operation can be reduced.

Applications

  •                                 Rotation detection, position detection, open / close detection, current detection, direction detection, etc.


Specifications

Part Number
AK8772
Type
Latch
Power Supply Voltage (MIN.) [V]
1.6
Power Supply Voltage (TYP.) [V]
3
Power Supply Voltage (MAX.) [V]
5.5
Sensitivity Bop [mT]
1.8
Sensitivity Brp [mT]
-1.8
Output stage
CMOS
Current Consumption (TYP.) [mA]
0.06
Current Consumption (MAX.) [mA]
0.15
Drive System
Micro Power
Other


Operating Temperature [℃]


Device Package
HXSON
Number of Pins
4

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
Yes
MSL
MSL1
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
5000
Replacement P/N

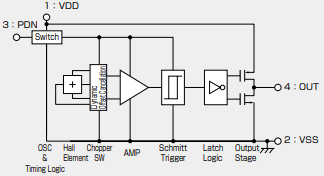

Block Diagram

Block Diagram
