AK8859VN

EOL

NTSC / PAL video decoder.

NTSC / PAL video decoder.

EOL

Description

The AK8859VN is a single-chip digital video decoder for composite and S-video signals.
Its output data is in YCbCr format and compliant with ITU-R BT.601 and ITU-R BT.656 standard interface.
Its output also included HD / VD / FIELD and DVALID signals.
Its operational temperature is between ranges of -40°C to 105°C. Microprocessor access is via I?C interface.

Key Features

  • With image quality adjustment function (Contrast, Saturation, Brightness, Hue, Sharpness)
  • Equipped with input signal automatic judgment function
  • Equipped with adaptive 2D YC separation function

Applications

  •                                 Drive recorder, Rear monitor


Specifications

Part Number
AK8859VN
Input Signal Types
Composite, Y / C
Input Channels
2
Output Formats
8-bit YCbCr 4 : 2 : 2
ADC Res. [Bits]
10
ADC Speed [MHz]
27
Power supply voltage (Min.) [V]
1.7
Power supply voltage (Typ.) [V]
1.8
Power supply voltage (Max.) [V]
2.0
Total current consumption (Typ.) [mA]
45
Total current consumption (Max.) [mA]
62
Other


Operating Temperature [℃]
-40 to 105
Device Package
HWQFN
Number of Pins
32

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
No
MSL
MSL2
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
1000
Replacement P/N

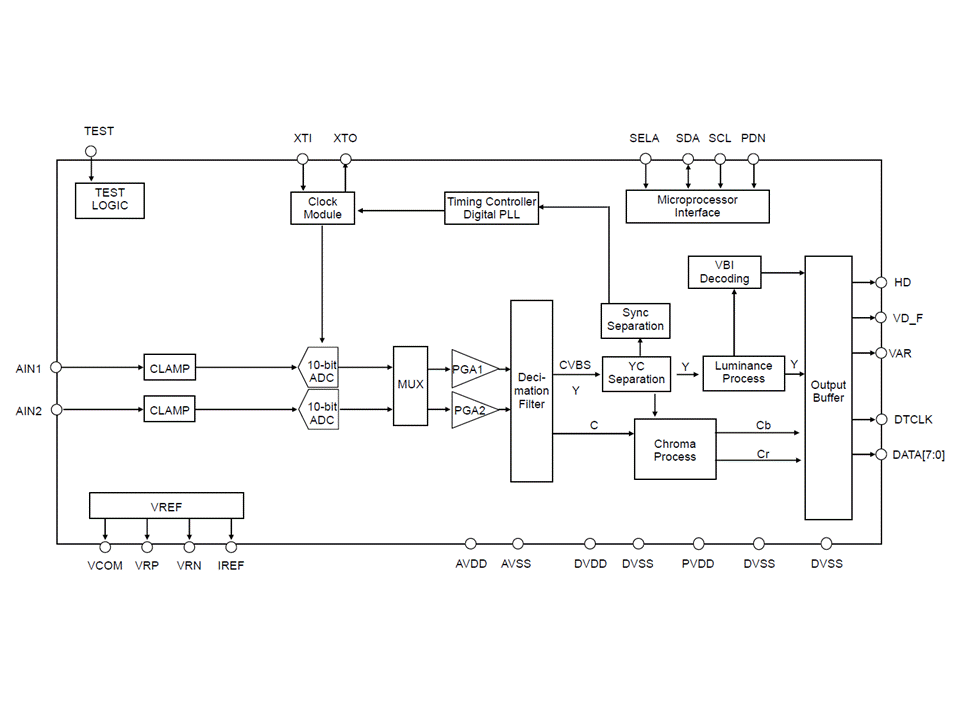

Block Diagram

Block Diagram
