AK9223MK

EOL

2 ch 1-bit 10MHz Δ-Σ modulator.

2 ch 1-bit 10MHz Δ-Σ modulator.

EOL

Description

The AK9223MK is a 10MHz operation input 2 channel delta-sigma modulation A / D converter.
The output of AK9223MK is a 1-bit PDM (Pulse Density Modulation) signal.

Key Features

  • Delta-sigma modulation ADC.

Applications

  •                                 Motor Controllers, Current Sensors, Industrial Equipment Sensors, etc.


Specifications

Part Number
AK9223MK
Number of Channels
2
Resolution [bit]
16
Speed [MSPS]
0.04
Power Supply Voltage (MIN.) [V]
4.5 / 2.7
Power Supply Voltage (TYP.) [V]
5.0 / 3.0
Power Supply Voltage (MAX.) [V]
5.5 / 5.5
Power Consumption [mW]
67.5
Control Interface
Serial
Package Size [mm(mm2)]
4.4×7.8 (50)
Other


Operating Temperature [℃]
-40 to 105
Device Package
TSSOP
Number of Pins
24

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
Yes
MSL
MSL2
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
2000
Replacement P/N

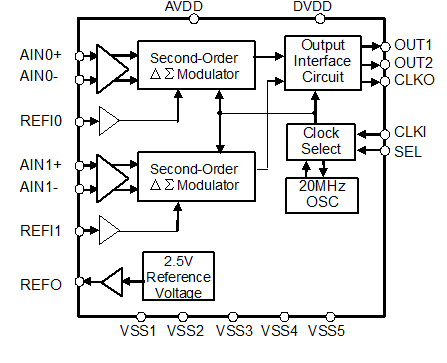

Block Diagram

Block Diagram
