AP1023AEN

EOL

2 ch H-Bridge Small Motor Driver IC with PWM Constant Voltage Control

2 ch H-Bridge Small Motor Driver IC with PWM Constant Voltage Control

EOL

Description

The AP1023AEN is a 2 channel H-bridge motor driver of low voltage and high output current operation with a small-package. The PWM Constant Voltage Control will help to extend the battery life of the application.
 The AP1023AEN is suitable for battery operation portable equipment such as Digital Still Camera.

Key Features

  • PWM constant voltage control
    Save battery power and extend operating time.

Applications

  •                                 Ideal for battery-powered applications such as digital still cameras.


Specifications

Part Number
AP1023AEN
Number of Channels
2
Motor Voltage(VM) (MIN.) [V]
1.6
Motor Voltage (VM) (TYP.) [V]


Motor Voltage (VM) (MAX.) [V]
6.5
Control Voltage (VC) (MIN.) [V]
2.7
Control Voltage (VC) (TYP.) [V]


Control Voltage (VC) (MAX.) [V]
5.5
DC Current (Max) [A]
1.45
Peak Current (MAX.) [A]


Other


Operating Temperature [℃]
-30 to 85
Device Package
HWQFN
Number of Pins
24

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
Yes
MSL
MSL2
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
1000
Replacement P/N

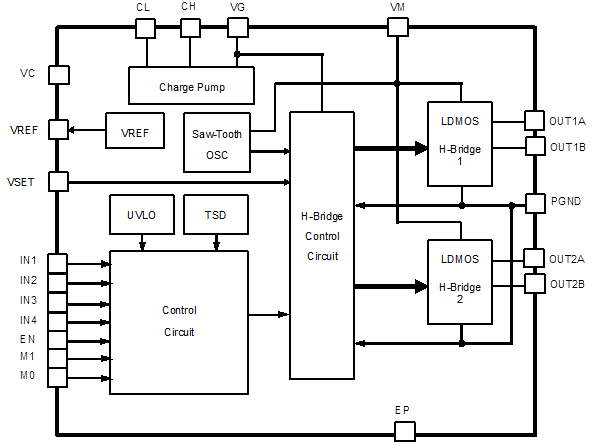

Block Diagram

Block Diagram
