AP1037CER
EOL
Small Driver for bipolar stepper motor
Small Driver for bipolar stepper motor
EOL
Description
The AP1037CER employs original technique the first in the industry “Active Decay Control”, so is high efficient stepper motor drivers. The “Active Decay Control” reduces the current ripple while maintaining the current follow-up capability, because adjusts the motor current automatically. The AP1037CER is suitable for OA-equipment such as Multi-functional Printers (MFP).
Key Features
-
Original control method "Active Decay Control". Automatically and suitable control the motor current.
Applications
-
MFP / LBP, Scanner, Robotics, ATM, Vending machines, Ticket machines, Moneychangers, Point of Sales System (POS) devices and etc.
Specifications
| Part Number |
AP1037CER |
|---|---|
| Number of STM |
Bipolar ×1 to 1/8 |
| Motor Voltage (VM、Max) (MIN.) [V] |
8.0 |
| Motor Voltage (VM、Max) (TYP.) [V] |
24.0 |
| Motor Voltage (VM、Max) (MAX.) [V] |
35.0 |
| Control Voltage (VC) (MIN.) [V] | |
| Control Voltage (VC) (TYP.) [V] | |
| Control Voltage (VC) (MAX.) [V] | |
| DC Current (Max) [A] |
1.5 |
| Peak Current (MAX.) [A] | |
| Control Interface |
Clock-in |
| Other | |
| Operating Temperature [℃] |
-30 to 85 |
| Device Package |
HWQFN |
| Number of Pins |
24 |
Product Information
| Part Status |
EOL |
|---|---|
| Pb Free |
Yes |
| Halogen Free |
Yes |
| MSL |
MSL3 |
| Packaging |
TAPE |
| JEDEC Standard Packaging |
Compliant |
| Minimum Order Quantity [pcs.] |
1000 |
| Replacement P/N |

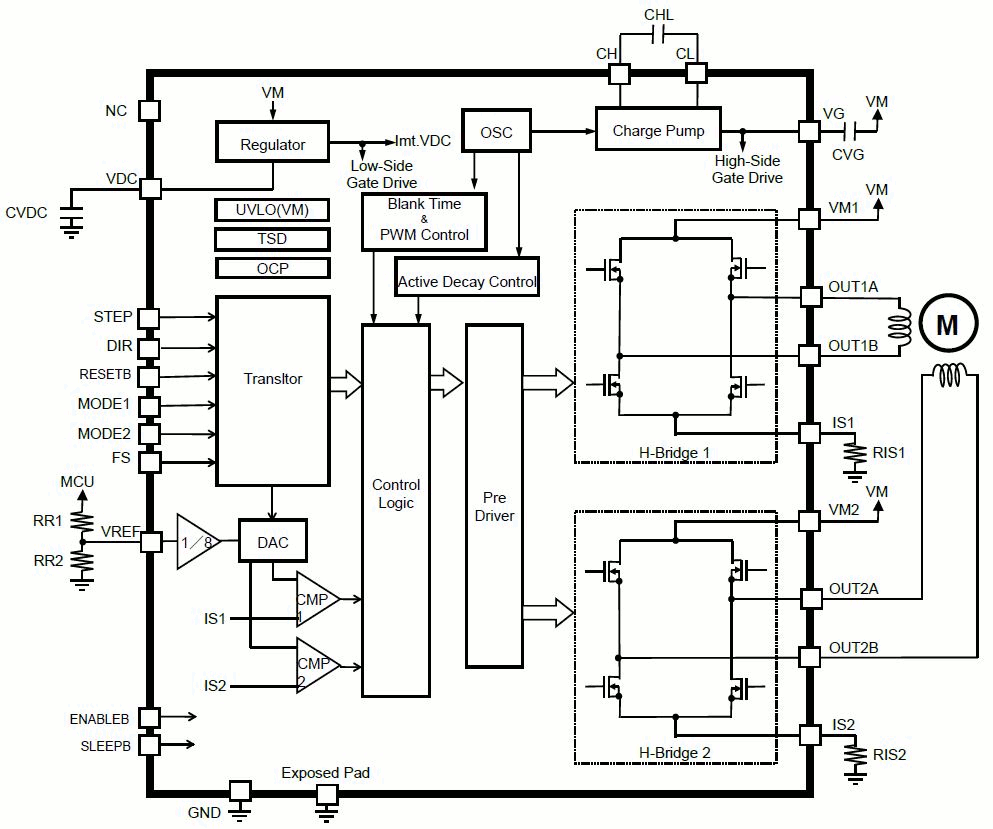

Block Diagram
