Electronic Compass
Evaluation board
AKM Sensor Control Program support two types of evaluation boards that can be used for developing software of Asahi Kasei Microdevices Corporation (AKM) electronic compass are available.
Sensor daughter board
AKM electronic compass and 3-axis acceleration sensor mounted board can be provided.
16 × 20 mm
Sensor daughter board

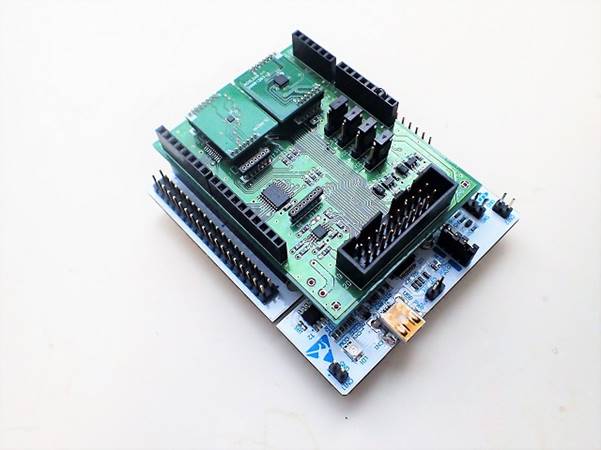

AKM sensor evaluation board for Arduino
Board that connects above Sensor daughter board to the MCU board with Arduino Uno equivalent connector.
AKM sensor evaluation board for Arduino
* These evaluation boards will be charged. For details, please contact our sales representative or agency.
* Please prepare the MCU board by customer.
FAQ
When you are using compass application on a mobile terminal (such as a smartphone), have you ever seen the message such as "Interference from a magnetic field. Re-calibrate by waving the phone in a figure 8 motion"? This message is displayed when the phone moves into a magnetic field, and the electronic compass suffers interference from the field. When this occurs, the electronic compass can't detect the azimuth direction at a high accuracy without a re-calibration.

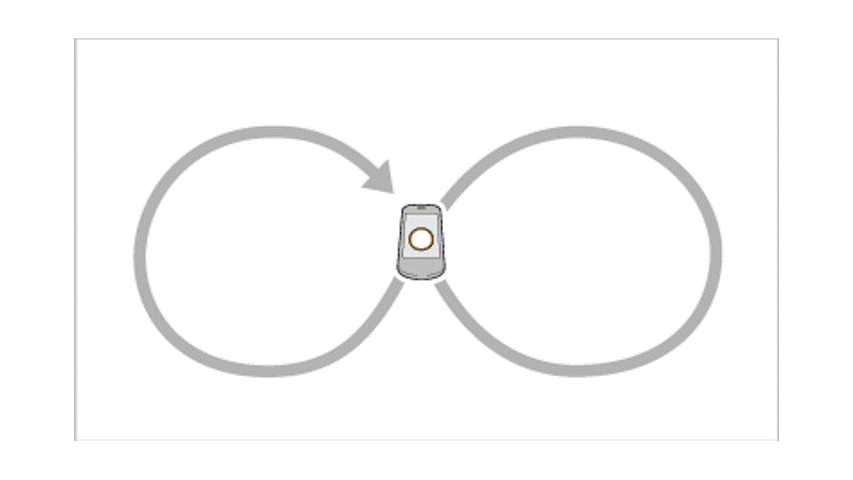

We don't need to manually re-calibrate, because the AKM electronic compass has an auto-calibration routine by software. Specifically, you can wave your cell phone in a figure 8 motion, as shown in the animation below. Enjoy!
