AK4136VQ
EOL
384kHz 32-bit 2 ch Asynchronous Premium SRC
384kHz 32-bit 2 ch Asynchronous Premium SRC
EOL
Description
The AK4136VQ is a 2 ch digital sample rate converter (SRC). The input sample rate ranges from 8kHz to 384kHz. The output sample rate is from 8kHz to 384kHz. The AK4136VQ has an internal Oscillator. Therefor it does not need any external master clocks and simplifies a system configuration. The AK4136VQ is suitable for the application interfacing to different sample rates such as Automotive Audio Systems.
Applications
AV receiver, CD / SACD player, network audio, USB DAC, USB headphones, Sound Plate / Bar, audio interface, in-vehicle separate amplifier, measuring instrument, measuring instrument, control system, Public Audio (PA), IC-Recorder, Bluetooth Headphone, HD Audio / Voice Conference
Specifications
Part Number |
AK4136VQ |
---|---|
Number of Channels |
2 |
Bits [bit] |
32 |
Input fs (MIN.) [kHz] |
8 |
Input fs (MAX.) [kHz] |
384 |
Output fs (MIN.) [kHz] |
8 |
Output fs (TYP.) [kHz] | |
Output fs (MAX.) [kHz] |
384 |
Dynamic Range [dB] |
176 |
Power Supply Voltage (MIN.) [V] |
3.0 / 1.7 |
Power Supply Voltage (TYP.) [V] |
3.3 / 1.8 |
Power Supply Voltage (MAX.) [V] |
3.6 / 1.9 |
Control Interface | |
Other |
Automotive grade |
Operating Temperature [℃] |
-40 to 105 |
Device Package |
LQFP |
Number of Pins |
48 |
Product Information
Part Status |
EOL |
---|---|
Pb Free |
Yes |
Halogen Free |
Yes |
MSL |
MSL3 |
Packaging |
TAPE |
JEDEC Standard Packaging |
Compliant |
Minimum Order Quantity [pcs.] |
1000 |
Replacement P/N |

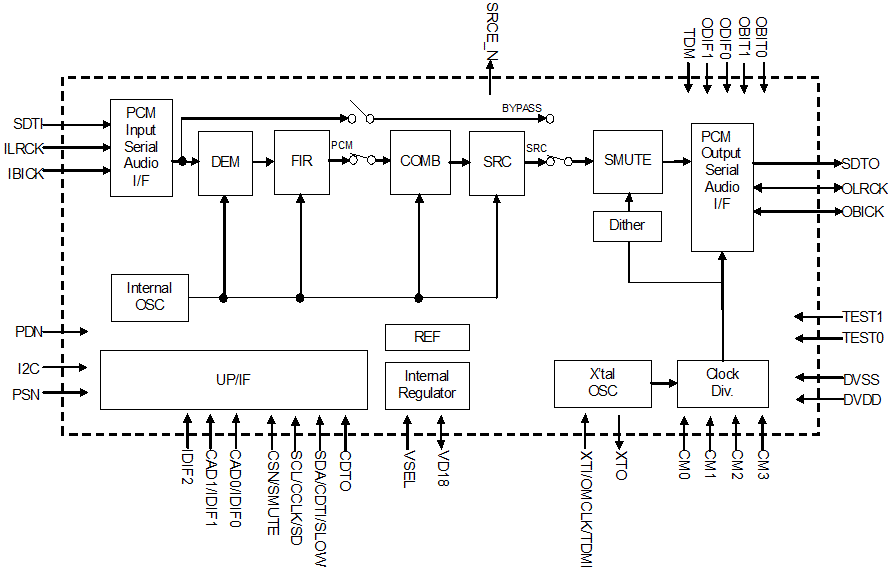

Block Diagram
