Energy Harvesting

The following is the line-up of energy harvesting step-up DC/DC converters of Asahi Kasei Microdevices Corporation (AKM).

Asahi Kasei Microdevices Corporation (AKM) step-up DC-DC converters can start up a step-up circuit from a small input voltage.
You can choose the product according to the performance of the power generation element used.
Utilize also the power simulator when selecting products.

Search by Selection Table

Part Number
Part
Status
Input
Voltage
[V]
Minimum
input voltage
to reach
to VDETH2[V]
Start
to output
[V]
(VDETH2)
Stop
to output
[V]
(VDETH2)
Over voltage protection
[V]
Other
Operating
Temperature
[℃]
Device
Package
Number
of Pins
AP4470
MP
0.2 to 1.0
0.25
3.3
2.6
3.55


-30 to 85
HWQFN
20
AP4470L
MP
0.2 to 1.0
0.24
2.7
2.1
2.95


-30 to 85
HWQFN
20
AP4470T
MP
0.2 to 1.0
0.24
2.7
2.1
2.95


-30 to 85
HXQFN
20
AP4473
MP
0.015 to 0.5
0.023
3.3
2.6
3.55


-30 to 85
HWQFN
20

Input voltage [V] :

The input voltage when the energy harvesting device is connected to the converter. (not open circuit voltage of the energy harvesting device)

Minimum inpit volatge to reach to VDETH2 [V] (Referance value)

The input voltage when the energy harvesting device is connected to the converter. (not open circuit voltage of the energy harvesting device)
These voltage is reference data from AKM evaluation board, not product specifications.
Refer to "downolad” to check the AKM evaluation boards in product page.

Check with the power simulator

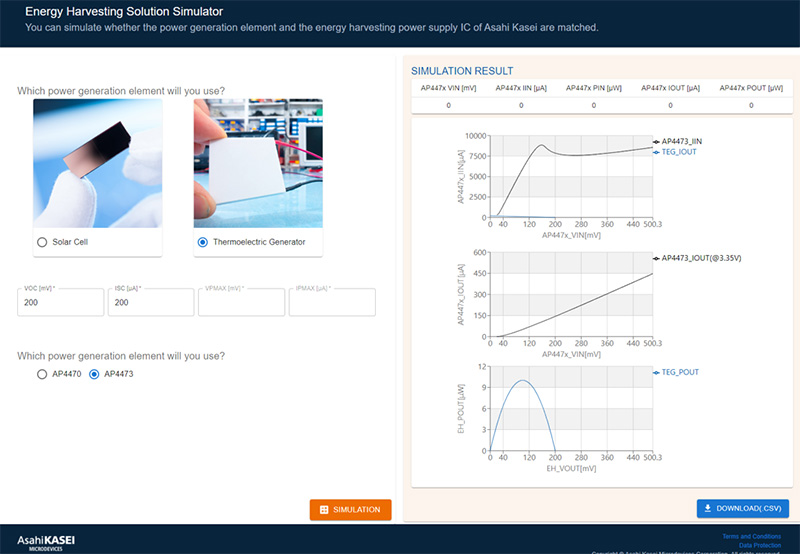

This simulator can calculate the power available with any generating element and AKM's step-up DC-DC converter. It can be used to estimate the environmental energy collection time when considering a system.

Check with the power simulator
