Packing information
AKM original packing
The packing design which can maintain the quality in spite of a transport method and the environment is being done.
Corresponding to JEDEC standard
The packing specification of LSI parts in AKM are based on the standard of JEDEC (J-STD-033D).
AKM will change inner label which apply to the products shipped from Oct 2016.
Part number
Packing classification indexes of a part number are not included in this website.
Example: "AK□□□□"
When ordering, part numbers are followed by the packing classification index: L, E1 and E2, which represents the taping direction.
Example: "AK□□□□-L", "AK□□□□-E1", "AK□□□□-E2"
[Note]
You may sometimes see "P" or "-8" character in AKM part number. This type of the part number is internally used and it is the same product as the one without these characters.
Example: "AK□□□□-8" and "AK□□□□" are the same products.
Taping direction
Packing classification indexes at the end of a part number indicate the taping direction.

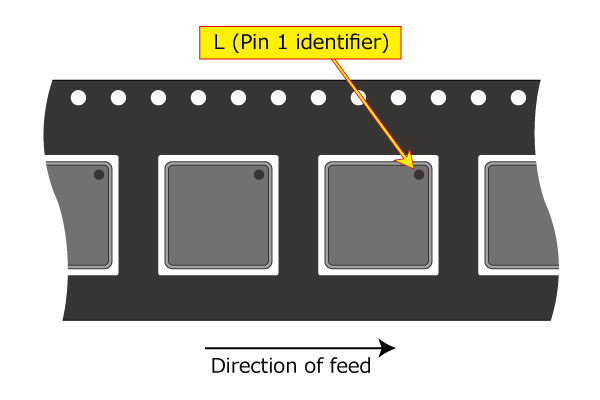

"L"
Packing classification index: L
Pin 1 identifier is in front of you towards the direction of feed.
(Pin 1 is on the same side of the feed hole.)

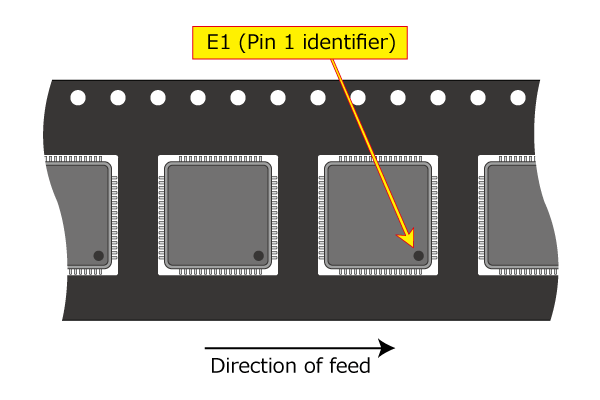

"E1"
Packing classification index: E1
Pin 1 identifier is in front of you towards the direction of feed.
(Pin 1 is on the opposite side of the feed hole.)

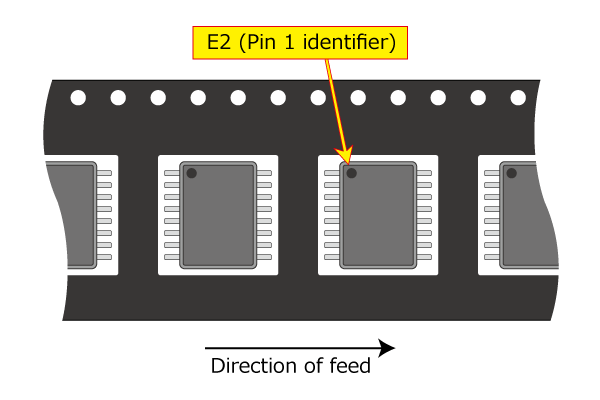

"E2"
Packing classification index: E2
Pin 1 identifier is behind you towards the direction of feed.
(Pin 1 is on the same side of the feed hole.)
JEDEC standard

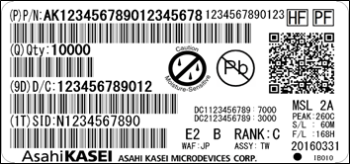

Label
A new label that complies with JDEC standard will be used on the production from Oct. 2016.
Label
| Code | Description |
|---|---|
| (P) P/N | Customer Parts Number |
| (Q) Qty | Quantity |
| (9D) D/C | Date Code |
| (1T) SID | Reel ID |
| MSL | Moisture Sensitivity Level |
| PEAK | Maximum reflow temperature |
| S/L | Shelf Life |
| F/L | Floor Life |
| SEAL DATE | Packing date |
Shipment packing
The shipment packing type depends on MSL classification.
| Type | Tape / Tray / Tube | ||||
|---|---|---|---|---|---|
| MSL (Moisture Sensitivity Level) | 1 | 1 * | 2 | 2a | 3 |
| Moisture Barrier Bag | No | Yes | Yes | Yes | Yes |
| Desiccant | No | Yes | Yes | Yes | Yes |
| HIC (Humidity Indicator Card) | No | Yes | Yes | Yes | |
* Several products adopt moisture-proof packing and include a desiccant.
MSL1 Non-Moisture-proof
| MSL1 Non-Moisture-proof | Packing Type | ||
|---|---|---|---|
| step 1 | step 2 | step 3 | |
| Reel |  |  | |
| Tray |  | ||
MSL1 Moisture-proof
| MSL1 Moisture-proof | Packing Type | ||
|---|---|---|---|
| step 1 | step 2 | step 3 | |
| Reel |  |  |  |
| Tray |  |  | |
MSL2 MSL 2a MSL 3 Moisture-proof
| MSL2 MSL 2a MSL 3 Moisture-proof | Packing Type | ||
|---|---|---|---|
| step 1 | step 2 | step 3 | |
| Reel |  |  |  |
| Tray |  |  | |
