Asset Tracking / Monitoring

Bluetooth® Low Energy Transmission IC

By attaching a tag to a person or an object and sending a beacon signal, it is possible to visualize when and where the person or object is by receiving the signal through a smartphone or a gateway. This system can be used for various purposes, such as managing equipment in industrial applications and checking employee attendance at the office.

* Bluetooth® is a registered trademark of Bluetooth SIG, Inc.

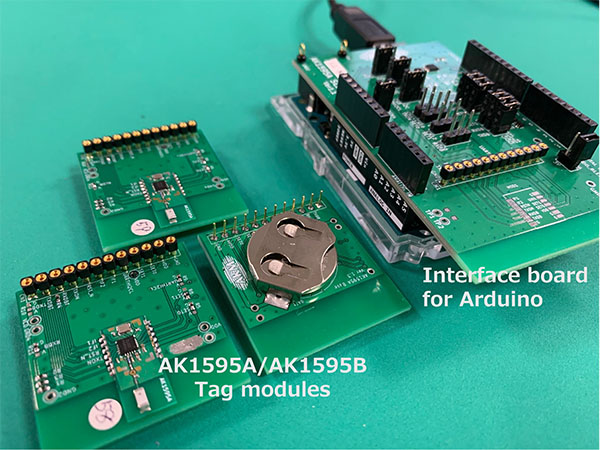

Bluetooth® beacon evaluation kit that connects to smartphones

Among the many communication technologies, one of the greatest advantages of Bluetooth® is its connectivity with smartphones. With the AK1595A and AK1595B evaluation kit, a Bluetooth® transmission IC of Asahi Kasei Microdevices (AKM) that includes a smartphone application, you can start experimenting immediately with your smartphone.

The data to be sent is set by writing registers. The AK1595A and AK1595B uses Arduino, a commercially available microcontroller board, to interface with a PC, and does not require an SDK (Software Development Kit) specifically for the AK1595A and AK1595B. Sample programs are also widely available.

Bluetooth (R) beacon evaluation kit that connects to smartphones Bluetooth (R) beacon evaluation kit that connects to smartphones

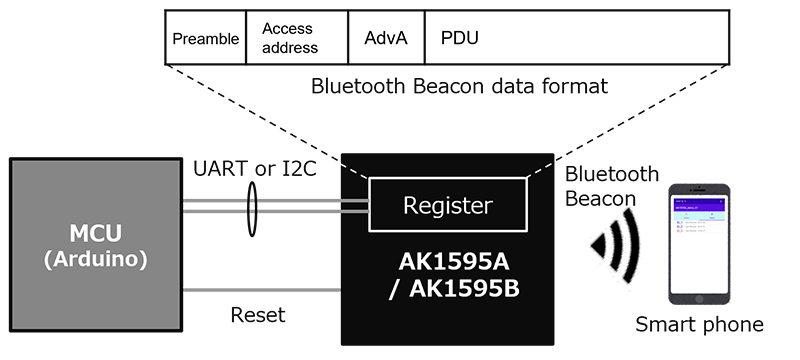

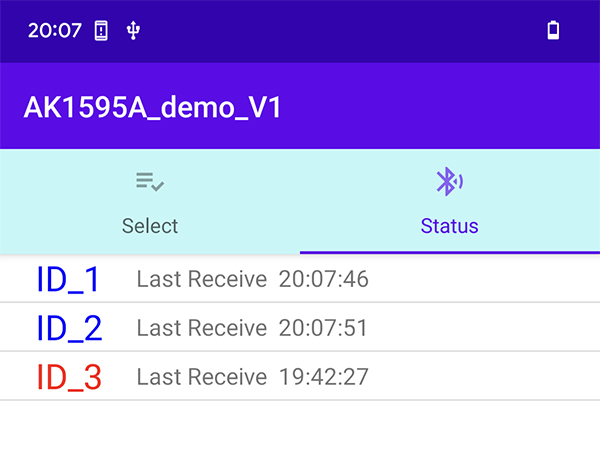

Evaluation kit block diagram(Smartphone App image) Evaluation kit block diagram(Smartphone App image)
AK1595A_demo_V1

Bluetooth® transmission IC AK1595A and AK1595B Evaluation Kit Manual + Sample Programs

In addition to the evaluation kit details, sample programs are provided (e.g., settings for transmitting iBeacon / Eddystone format and continuous unmodulated wave transmission for certification testing).

EVB Manual

Bluetooth® transmission IC
AK1595A Evaluation Kit Manual
English [BLEAN-E-02]
(11 pages PDF : 1.2MB)

Application Note

Sample Programs for Bluetooth® transmission IC
AK1595A Evaluation Kit
English [BLEAN-E-03]
(ZIP : 39KB)
