Design Support

Gas sensors

Introducing technical information useful for design and evaluation using Senseair sensor modules.

When integrating a sensor module into equipment, various design requirements need to be considered, including power supply design, communication method, mounting size, measurement interval, and software integration. This page introduces design support information for a wireless CO₂ sensor beacon using a Senseair sensor module. You can find information useful for developing portable IAQ monitors and wireless air quality sensing devices, such as long battery operation with a coin cell, wireless transmission via Bluetooth® Low Energy, and a compact module configuration.

*Bluetooth^® is a registered trademark of Bluetooth SIG, Inc.

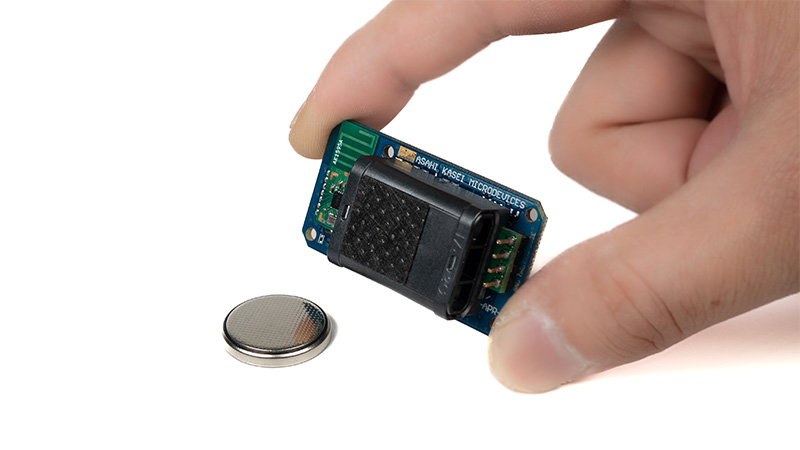

Reference Design

This section introduces design support information for a wireless CO₂ sensor beacon using Senseair Sunrise. Use the application note, schematic, BOM, PCB layout, Gerber files, software, and other materials as references for development and evaluation.

Wireless Sensor CO₂ Beacon

For customers who want to design at the component level

If you want to design a custom NDIR gas sensor at the component level rather than using a ready-to-use module, please see AKM gas sensor components. This section introduces key devices required for gas sensor design, including infrared LEDs, infrared photodiodes, and AFE ICs.

View gas sensor components

About Senseair

Senseair, which became a member of the Asahi Kasei Microdevices (AKM) Group in 2018, is a provider of gas sensors using NDIR: Non-Dispersive InfraRed technology. Our goal is to constantly develop and mass-produce new gas sensor technologies.
