Digital Crown Rotation and
Push Operation Detection

The digital crown is a knob-like input interface located on the side of a smartwatch, enabling screen scrolling and selection through rotation and push operations.

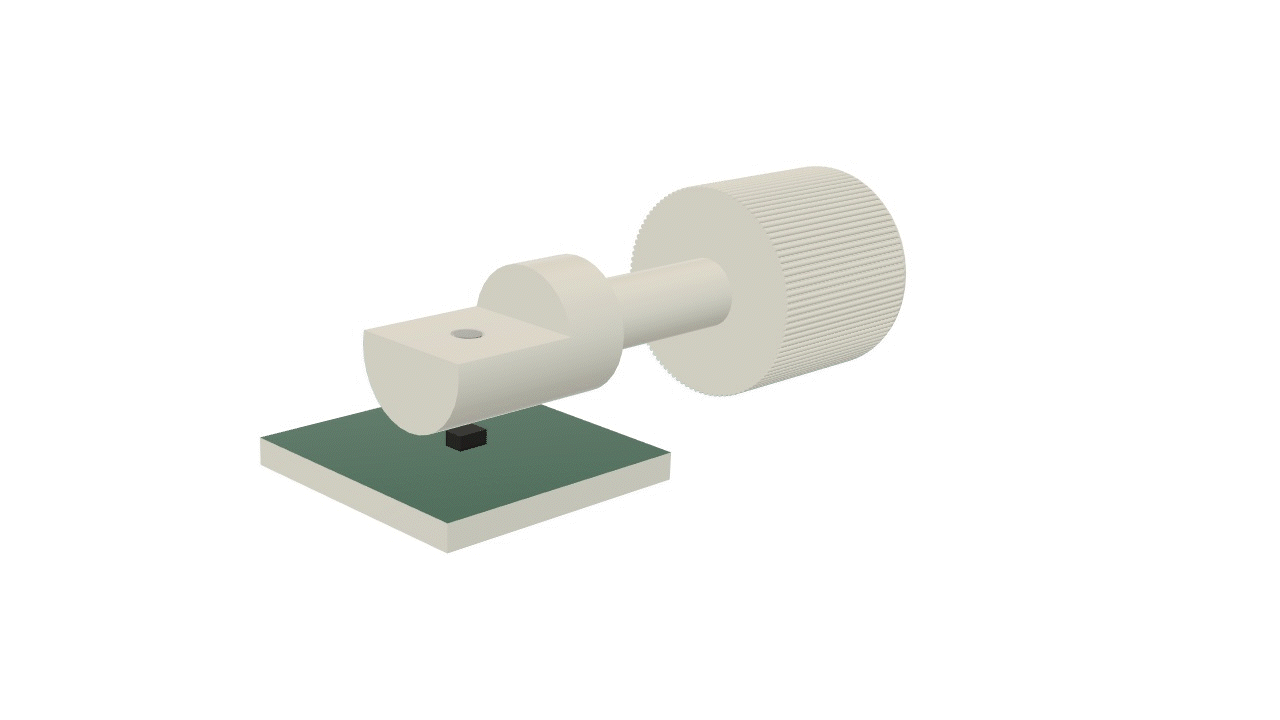

AKM’s 3D magnetic sensor detects both rotation and push operations by simply placing a single magnet near the sensor.

This enables a digital crown design with the reduced component count, low power consumption, and high layout flexibility.

Details on implementation methods and detection algorithms are provided in the application note.

• Detects both rotation and push operations with a single sensor.
• The reduced component count contributes to improved layout flexibility and space savings.
• Low power consumption is achieved through a simple single-sensor configuration.
