Sensor Core
(Senseair)
This is a modularized product that contains a light source, a photosensitive element, an arithmetic circuit, and optical components.
二氧化碳传感器
Overview
This is a modularized product that contains a light source, a photosensitive element, an arithmetic circuit, and optical components.
It outputs CO2 concentration values, so no additional calculations by the customer are required.
This product is ideal for customers who design their own circuits and enclosures for small CO2 measuring instruments.
Specifications Comparison
| Product name | Features | Average current | Measurement range | Power supply | Output | Communication | |
|---|---|---|---|---|---|---|---|
| I2C | UART | ||||||
Sunrise |
Low current consumption | 45 uA | 400～5000 ppm | 3.05～5.5 V | | ✓ | ✓ |
S8 |
Compact | 18～30 mA | 400～50,000 ppm | 4.5～5.25 V | PWM / Digital | ✓ |
|
K30 |
Multi function | 40 mA | 0～5,000 ppm | 4.5～14 V | Analog / Digital | ✓ | ✓ |
More Information...

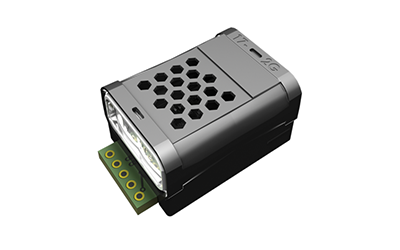

Sunrise
Senseair Sunrise (from Senseair corporation)
Senseair Sunrise is an NDIR type CO2 sensor that uses manufactured LEDs and photodiodes from AKM
Although the sensor accuracy is as high as ± (30ppm + 3% of the reading), the average current consumption is 45μA, so it can be powered by a battery.
It has a built-in Automatic Baseline Correction (ABC) algorithm which periodically performs calibration automatically, so it can be used without further maintenance after installation.
Features
- Low current consumption
- Highly accurate
- Built-in Automatic Calibration Algorithm (ABC Algorithm) (What is the ABC Algorithm?)
- I2C and UART interfaces
Specifications
Product name |
Sunrise |
|---|---|
Product number |
006-0-0007 |
Measurement range |
400 - 5,000ppm |
Accuracy (*) |
+/- (30ppm +3% of reading) |
Peak current |
< 125mA |
Average current (**) |
45uA |
Alarm output |
- |
PWM output |
- |
Communication |
UART / I2C |
Dimensions |
33.5 x 19.7 x t11.5mm |
Power supply |
3.05-5.5V |
Operation |
0-50℃ |
[Notes]
*1 15-35℃, 0-85%RH, After three ABC period
*2 Power supply 3.3V, Measurement period 16sec
Senseair Sunrise
More Information...
购买样品
Customer Stories

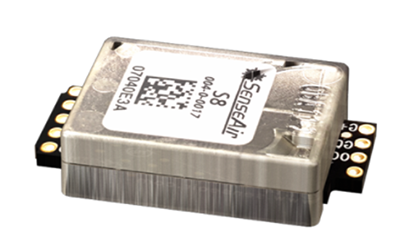

S8
Senseair S8 family (from Senseair corporation)
Senseair S8 is a compact NDIR type CO2 sensor.
It is widely used in energy-saving HVAC applications and monitoring applications for improving indoor air quality.
In addition to the UART interface, it also has an alarm output, so it can be easily installed in products.
Features
- Compact
- Highly accurate
- Built-in Automatic Calibration Algorithm (ABC Algorithm)
Specifications
Product name |
S8 COMMERCIAL |
S8 RESIDENTIAL |
S8 LP |
S8 2% |
S8 5% |
|---|---|---|---|---|---|
Product number |
004-0-0010 |
004-0-0013 |
004-0-0053 |
004-0-0050 |
004-0-0017 |
Measurement range |
400-2,000ppm |
400-20,000ppm |
400-50,000ppm |
||
Accuracy (*) |
+/- (30ppm +3% of reading) |
+/- (70ppm +3% of reading) |
+/- (40ppm +3% of reading) |
+/- (200ppm +3% of reading) |
+/- (200ppm +10% of reading) |
Peak current |
300mA |
||||
Average current |
30mA |
<18mA |
30mA |
||
Alarm output |
1000 / 800ppm |
8500 / 6500ppm |
|||
PWM output |
for 0-2000ppm |
for 0-20,000ppm |
for 0-50,000ppm |
||
Communication |
UART |
||||
Dimensions |
33.9 x 19.8 x t8.7mm |
||||
Power supply |
4.5-5.25V |
||||
Operation |
0-50℃ |
5-50℃ |
|||
[Notes] *1 After three ABC period
Senseair S8
More Information...
购买样品

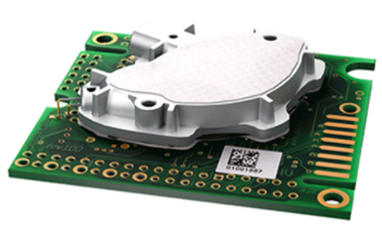

K30
Senseair K30 (from Senseair corporation)
Senseair K30 can be customized for a variety of sensing and control applications.
It has two analog outputs and two digital outputs, so this flexible product it can be used with the Senseair Development Kit and UIP5 in custom configurations.
Features
- Custom configuration support
- Highly accurate
- Analog and digital output
- Built-in Automatic Calibration Algorithm (ABC Algorithm)
Specifications
Product name |
K30 |
K33 LP T |
|---|---|---|
Product number |
030-8-0006 |
033-8-0008 |
Measurement range |
0 - 5,000ppm |
0 - 5,000ppm |
Accuracy (*) |
+/- (30ppm +3% of reading) |
+/- (30ppm +3% of reading) |
Peak current |
<300mA |
<300mA |
Average current |
40mA |
<1.5mA |
Linear analog output (for 0 - 2,000ppm) |
OUT1 : 0 – 4V OUT2 : 1 – 5V |
- |
Digital output |
OUT3 : 700 / 800ppm OUT4 : 900 / 1,000ppm |
- |
Communication |
UART / I2C |
UART / I2C |
Dimensions |
51 x 58 x t12mm |
51 x 57 x t12.5mm |
Power supply |
4.5 - 14V |
4.75 - 12V |
Operation |
0-50℃ |
|
[Notes] *1 After three ABC period
Senseair K30
More Information...
购买样品
Purchase a product or sample / Technical questions
购买样品
Samples are available from our web distributor Digi-key.
网络分销商
All product are sold via Distributors / Representatives.
联系我们
Inquiries about CO2 sensors
Request Form
About Senseair
Senseair, a member of the Asahi Kasei Microdevices Group in 2018, is a leading global provider in gas sensors using non-dispersive infrared (NDIR) technology. For more than 25 years, Senseair has developed and manufactured highly cost-effective, high-performance gas sensors. Senseair has many engineers in its R&D department that always aiming to apply the latest industrially viable technologies on the market into their products.
