Sensor inCase

(Senseair)

Sensor onBoard in the housing

二氧化碳传感器

Overview

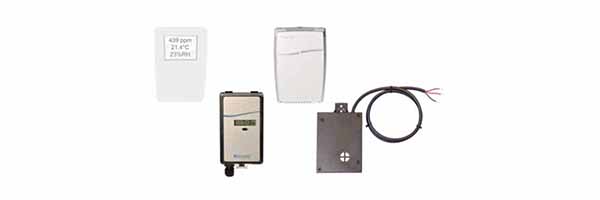

Sensor onBoard in the housing

Sensor-in-case contains Sensor core and other peripheral circuits mounted on a printed circuit board.

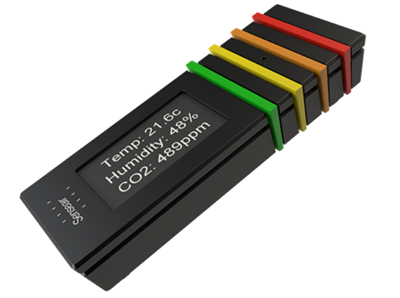

Senseair Aercast

Senseair Aercast is a 3-in-1 indoor air quality sensor with CO2, temperature and humidity sensors. Battery operation for about 2 years is achieved by adopting low current consumption Senseair Sunrise for the CO2 sensor. Each measurement data can be displayed on the LCD or checked using the smart device app.
Furthermore, the air quality obtained from the measurement data is visualized with four colors (green, yellow, orange, and red) of light.

Aercast

Features

  • Equipped with CO2, temperature and humidity sensors
  • Battery operation
  • Indoor air quality indication on display as well as intuitive LEDs
  • Connection to smart devices via wireless communication

Specification

  Specification note
Measured gas CO2
Operating temperature 0 - 50°C
Operating humidity 0 - 85% RH Non-condensing
Dimensions 148 x 58 x t29 mm
Measurement range CO2 400 - 5000 ppm
Accuracy +/-(30ppm + 3% of reading) 15 - 35°C
0 - 80%RH
after 3 ABC periods
Life expectancy 15 years (battery 2 years)
Power supply 2x AA lithium batteries (included)
Communication BLE

More Detail Informations

For more information, please visit the Senseair website or contact AKM.

Purchase a product or sample / Technical questions

购买样品

Samples are available from our web distributor Digi-key.

网络分销商

All product are sold via Distributors / Representatives.

联系我们

Inquiries about CO2 sensors
Request Form

About Senseair

Senseair, a member of the Asahi Kasei Microdevices Group in 2018, is a leading global provider in gas sensors using non-dispersive infrared (NDIR) technology. For more than 25 years, Senseair has developed and manufactured highly cost-effective, high-performance gas sensors. Senseair has many engineers in its R&D department that always aiming to apply the latest industrially viable technologies on the market into their products.
