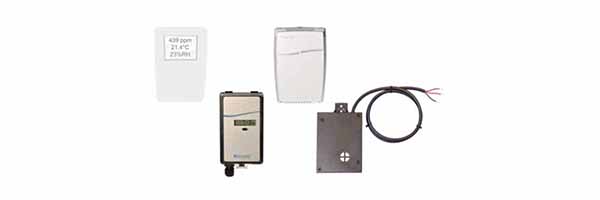

Sensor inCase
(Senseair)
Sensor onBoard in the housing
CO2 Sensors
Overview
Case Housing a Printed Circuit Board with a Sensor Core and Peripheral Circuits installed
Senseair Aercast EOL (End of Life)

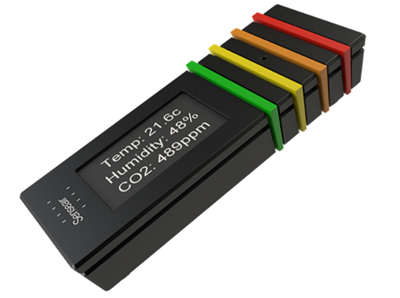

Senseair Aercast is a 3-in-1 indoor air quality sensor with built-in CO2, temperature, and humidity sensors. Battery operation for about 2 years is achieved by adopting low current consumption Senseair Sunrise for the CO2 sensor. Each measurement data value can be displayed on the LCD or checked by using the smart device application.
Furthermore, the air quality obtained from the measurement data is presented with four colors (green, yellow, orange, and red).
Features
- Equipped with CO2, temperature and humidity sensors
- Battery operated
- Display of measured air quality data on LED as well as color-coded presentation with four colors
- Connection to smart devices via wireless communication
Aercast
Specification
| Specification | note | |
|---|---|---|
| Measured gas | CO2 | |
| Operating temperature | 0 - 50°C | |
| Operating humidity | 0 - 85% RH | Non-condensing |
| Dimensions | 148 x 58 x t29 mm | |
| Measurement range CO2 | 400 - 5000 ppm | |
| Accuracy | +/-(30ppm + 3% of reading) | 15 - 35°C 0 - 80%RH after 3 ABC periods |
| Life expectancy | 15 years (battery 2 years) | |
| Power supply | 2x AA lithium batteries (included) | |
| Communication | BLE |
More Detail Informations
For more information, please visit the Senseair website or contact AKM.
Purchase a product or sample / Technical questions
Purchase a sample
Samples are available from our web distributor Digi-key.
Distributors / Representatives
All product are sold via Distributors / Representatives.
Contact AKM
Inquiries about CO2 sensors
Request Form
About Senseair
Senseair, which became a member of the Asahi Kasei Microdevices (AKM) Group in 2018, is a provider of gas sensors using NDIR: Non-Dispersive InfraRed technology. Our goal is to constantly develop and mass-produce new gas sensor technologies.
