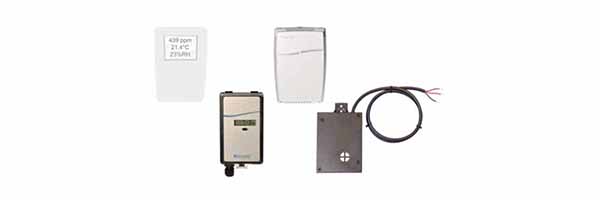

Sensor inCase

(Senseair)

Sensor onBoard in the housing

CO2 Sensors

Overview

Case Housing a Printed Circuit Board with a Sensor Core and Peripheral Circuits installed

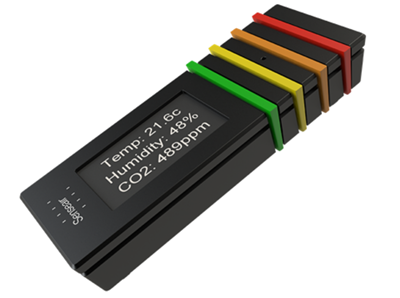

Senseair Aercast    EOL (End of Life)

Senseair Aercast is a 3-in-1 indoor air quality sensor with built-in CO2, temperature, and humidity sensors. Battery operation for about 2 years is achieved by adopting low current consumption Senseair Sunrise for the CO2 sensor. Each measurement data value can be displayed on the LCD or checked by using the smart device application.

Furthermore, the air quality obtained from the measurement data is presented with four colors (green, yellow, orange, and red).

Features

  • Equipped with CO2, temperature and humidity sensors
  • Battery operated
  • Display of measured air quality data on LED as well as color-coded presentation with four colors
  • Connection to smart devices via wireless communication
Aercast Aercast

Specification

  Specification note
Measured gas CO2
Operating temperature 0 - 50°C
Operating humidity 0 - 85% RH Non-condensing
Dimensions 148 x 58 x t29 mm
Measurement range CO2 400 - 5000 ppm
Accuracy +/-(30ppm + 3% of reading) 15 - 35°C
0 - 80%RH
after 3 ABC periods
Life expectancy 15 years (battery 2 years)
Power supply 2x AA lithium batteries (included)
Communication BLE

More Detail Informations

For more information, please visit the Senseair website or contact AKM.

Purchase a product or sample / Technical questions

Purchase a sample

Purchase a sample

Samples are available from our web distributor Digi-key.

Distributors

Distributors / Representatives

All product are sold via Distributors / Representatives.

Contact us

Contact AKM

Inquiries about CO2 sensors
Request Form

About Senseair

Senseair, which became a member of the Asahi Kasei Microdevices (AKM) Group in 2018, is a provider of gas sensors using NDIR: Non-Dispersive InfraRed technology. Our goal is to constantly develop and mass-produce new gas sensor technologies.
