Hall Elements
The Hall element (Hall sensor) is a magnetic sensor that detects magnetic field and outputs an analog signal proportional to its intensity.

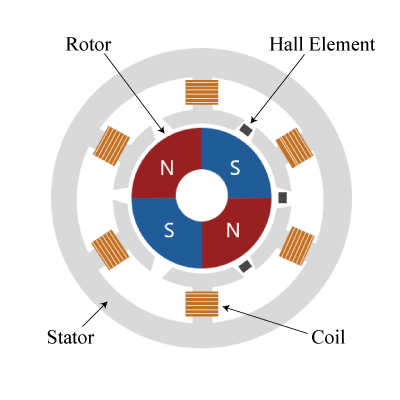

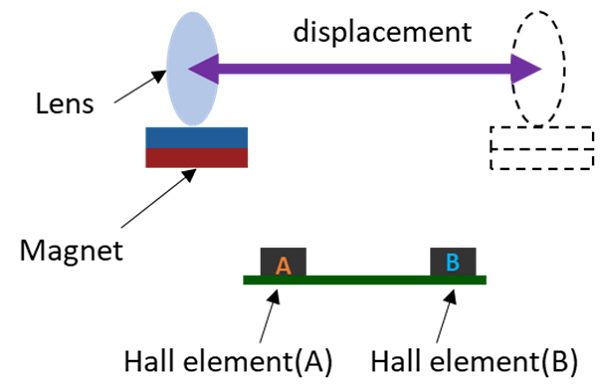

It is mainly used for motor drivers and linear position detection.
Hall Sensors
Series | HW series | HQ series | HG series |
---|---|---|---|
Material | InSb (Ultra-high sensitivity.) |
InAs (High Sensitivity) |
GaAs (Low Drift) |
Features | Ultra-high sensitivity. | High sensitivity and low current consumption are achieved simultaneously. Excellent thermal characteristic. |
Excellent thermal characteristic. Linear output. |
Application | Best suited to motor drivers. | Suitable for battery-powered mobile equipment. | Best suited to current sensors. |
