AK8779B

EOL

感度 ±2.0mT. パルスエンコーダー用 縦横磁束信号出力 ホール IC (Latch type)

感度 ±2.0mT. パルスエンコーダー用 縦横磁束信号出力 ホール IC (Latch type)

EOL

Description

AK8779B は、IC マーキング面に垂直方向に入る縦磁場と水平方向に入る横磁場を同時に検出するパルス エンコーダ用のホール IC です。縦磁場の交番検知信号を OUTA 端子、横磁場の交番検知信号を OUTB 端子から出力します。

Key Features

  • 縦磁場と横磁場を検出
    縦磁場と横磁場を同時に検出できる。
  • 交番磁場検知出力信号
    縦磁場の交番検知信号を OUTA 端子、横磁場の交番検知信号を OUTB 端子から出力する。

Applications

  •                                 民生・産業機器・車載機器


Specifications

Part Number
AK8779B
Power Supply Voltage (MIN.) [V]
3.8
Power Supply Voltage (TYP.) [V]


Power Supply Voltage (MAX.) [V]
24
Current Consumption [mA]
3.5
Output Refresh Period [μsec]
8.3
Sensitivity Bop [mT]
2
Sensitivity Brp [mT]
2
Output signal
A | vertical,
B | horizontal
Output Stage
Open Drain
Other
Automotive grade
Operating Temperature [℃]
-40 to 150
Device Package
SOP
Number of Pins
6

Product Information

Part Status
EOL
Pb Free
Yes
Halogen Free
Yes
MSL
MSL1
Packaging
TAPE
JEDEC Standard Packaging
Compliant
Minimum Order Quantity [pcs.]
3000
Replacement P/N



Block Diagram

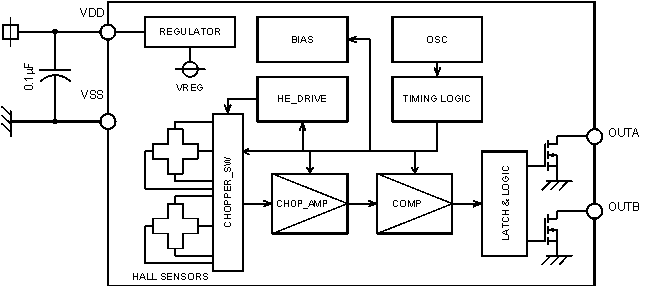

AK8779B Block Diagram
