Sensor Element
(for NDIR Gas Sensing)

Components for NDIR measurement of gas concentrations.

Sensor Element is ideal for customers who design and develop gas sensors from modules.

CO2 Sensors

Overview

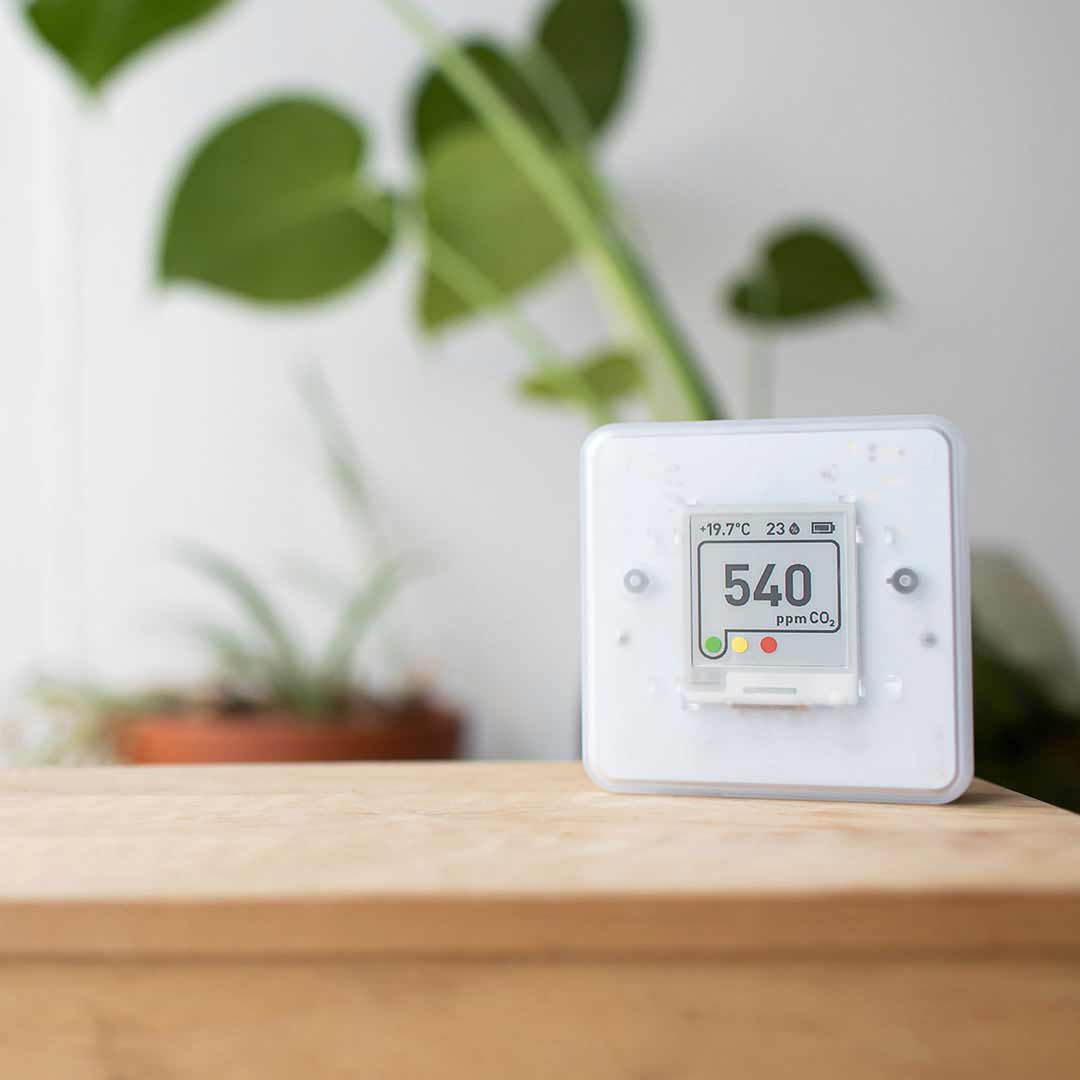

CO2 sensing IR LED / IR Sensor / Signal processing AFE, they are suitable for NDIR CO2 sensingNew technology enables us to change our daily life at home to a more convenient, secure, safe, and energy saving environment with sensors.​

Specifications Comparison

Infrared LED Elements for NDIR Gas Sensing

AKM's infrared LEDs utilize the semiconductor thin film epitaxial growth technology accumulated through manufacturing of magnetic sensors, which achieves emission wavelength control optimized for the gas absorption wavelength band and high-speed, high-output emission control.

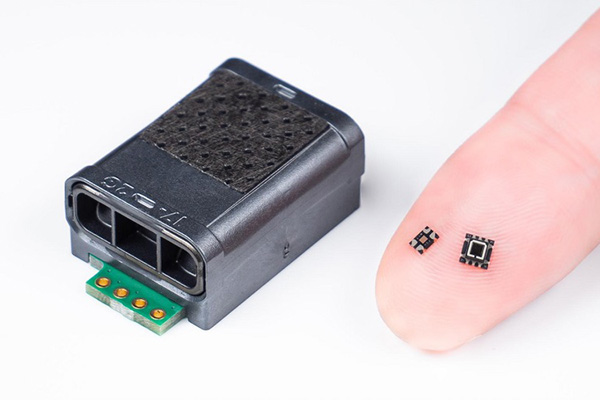

Our own compact molded resin packaging technology contributes to the downsizing of gas sensors as the world's smallest class Surface Mounted Devices (SMD) infrared LEDs.

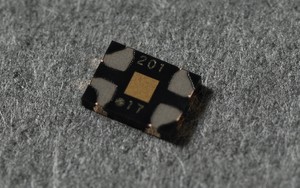

AK9700AE

Product Name

  AK9700AE
AK9700AD
AK9703AJ
Peak emission wavelength [μm] 4.3 3.6
Spectral half width [μm] 1.0 0.7
Operation Temperature [°C] 0 to 50 -40 to 90 -40 to 85
Size (D/W/H)
[mm] 2.6 x 1.9 x 0.4
Automotive grade   - Yes -
AEC-Q101   - Yes -
Status

  MP MP MP
Product Details

  AK9700AE AK9700AD AK9703AJ

Infrared Sensors for NDIR Gas Sensing

AKM's infrared sensors utilize the semiconductor thin film epitaxial growth technology accumulated through manufacturing of magnetic sensors, which achieves wavelength sensitivity control optimized for the gas absorption wavelength band and high-speed response, high signal-to-noise ratio.

Our own compact molded resin packaging technology contributes to the downsizing of gas sensors as the world's smallest class Surface Mounted Devices (SMD) infrared sensors.

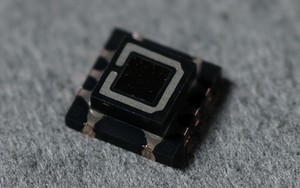

AK9710AE

Product Name

  AK9710AEF01
AK9710ADF01
AK9710AEF3A
AK9730AJF21
IR1011
Output Current Ip [nA] 1.04 to 4.9 0.58 to 2.04 2.9 to 14.2 4.5 to 7.5
Internal Resistance [kΩ] 75 to 188 75 to 188 15 to 250 112 to 188
Optical Filter [μm] CWL : 4.28,
FWHM : 0.27
CWL : 3.91,
FWHM : 0.09
CWL : 3.32,
FWHM : 0.19

Temperature Range [°C] -40 to 85 -40 to 90 -40 to 85 -40 to 85 -40 to 85
Size (D/W/H)
[mm] 3 x 3 x 1.01 2.65 x 1.9 x 0.4
Automotive grade   - Yes - - -
AEC-Q101   - Yes - - -
Status

  MP MP MP MP NRND
Product Details

  AK9710AEF01 AK9710ADF01 AK9710AEF3A AK9730AJF21 IR1011

LED driver built-in AFEICs for NDIR Gas Sensing

AKM provides a signal processing solution for NDIR type gas sensor applications by combining its infrared LEDs/sensors and external MCUs.

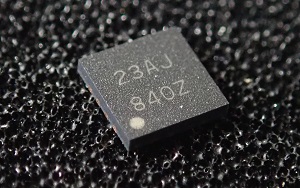

AK9723AJ

Product Name

  AK9721AE
AK9724AE
AK9723AD
AK9723AJ
LED Drive Current [mA] 28 - 121 Programmable (3mA Step)
ADC resolution [bit] 13
Power Supply [V] 2.7 to 3.6
Operation Temperature [°C] -40 to 90 -40 to 85
Size (D/W/H)
[mm] 3.0 x 3.0 x 0.7 3.0 x 3.0 x 0.7 4.0 x 4.0 x 0.7
Automotive grade   - - Yes -
AEC-Q101   - - Yes -
Status

  EOL EOL EOL Preview
Product Details

  AK9721AE
AK9724AE
AK9723AD
AK9723AJ

Purchase a product or sample / Technical questions

Purchase a sample

Samples are available from our web distributor Digi-key.

Distributors / Representatives

All product are sold via Distributors / Representatives.

Contact AKM

Inquiries about CO2 sensors
Request Form
