EZ232L Series
Achieves a coreless design while maintaining performance equivalent to cored current sensors.
It enhances design flexibility and contributes to further space savings in system design by reducing the sensor size.

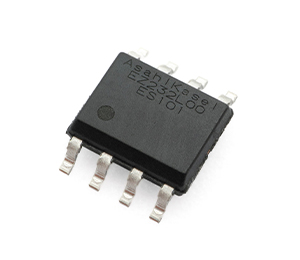

EZ232L series
Overview
- High resolution: 1 Arms
- Fast response time: 500 ns
- Non-contact current sensing
- AEC-Q100 compliant
What can be done with EZ232L series?
- Improves system efficiency
- System downsizing
- Fast overcurrent detection
Features
1. Contributes to significant reductions in system size and weight
The EZ232L series is a field current sensor featuring a coreless design with an external busbar, capable of accurately measuring extremely high currents—up to several kiloamperes.
By realizing a coreless structure without a magnetic core, the sensor enables significant reductions in overall system size and weight compared with conventional cored current sensors.
2. Energy efficiency improvement at low‑torque operation through high‑resolution sensing
By leveraging the low-noise characteristics of AKM’s high-sensitivity compound Hall elements, the sensor achieves high resolution of approximately 1 Arms even at current levels of several hundred amperes.*
This enables high energy efficiency even during low-torque operation in electric vehicle.
*Resolution depends on the busbar structure. For details, please refer to the PoC Reference documentation.
3. Enhanced system safety with fast overcurrent detection
High‑sensitivity compound Hall elements enable a fast 500 ns response, ensuring safe overcurrent detection in next‑generation electrified vehicle powertrains based on SiC and GaN devices.
Applications
- Traction inverter
- DCDC converter
- SST (Solid State Transformer)
- Electronic fuse (eFuse)
Product Information

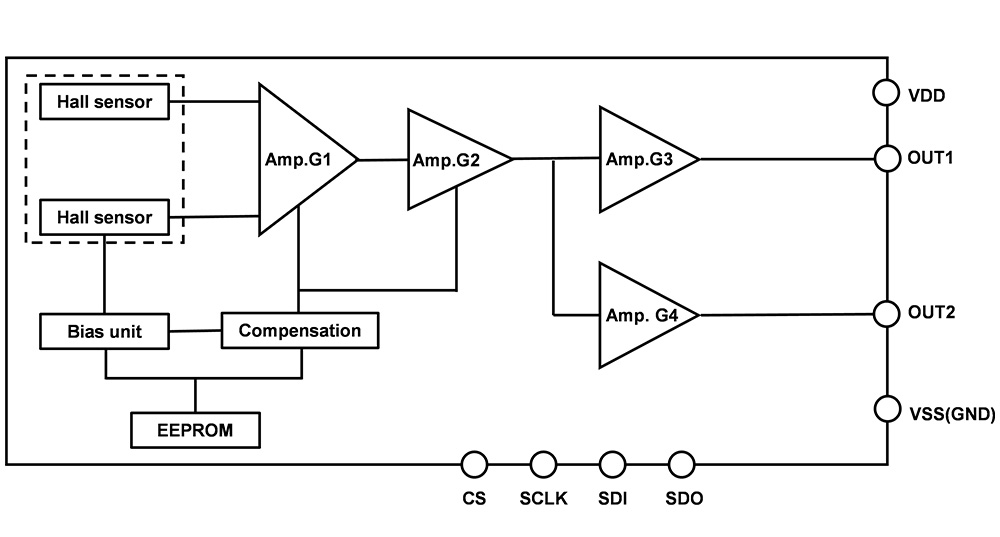

EZ232L Series Block Diagram
| Series | EZ232L Series |
|---|---|
| Current Sensor Type | Field Current Sensor |
| Package Size [mm] | 6.0 x 4.9 x 1.4 |
| Package Type | SOP-8 |
| Power Supply Voltage [V] | 3.3 / 5.0 |
| Operating Temperature [℃] | -40 to 150 |
| Stray Magnetic Field Reduction | Yes |
| Ratiometric / Non-Ratiometric | Ratiometric |
| Pb Free | Yes |
| Halogen Free | Yes |
| MSL | MSL2 |
| Packing | Tape |
| Minimum Order Quantity [pcs.] | 1000 |
| Part Status | Preview |
Technical information
You can use useful technical documentation for the EZ232L series for your design.
EZ232L Product Information Material
This document explains the current measurement principle and measurement method of the EZ232L. It helps understanding key points to design coreless current sensor with EZ232L.
Current sensor integrated Power Module
This document explains the proof of concept (PoC) for integrating the EZ232L into power modules.
Comming soon
PoC Reference
This document provides an overview of the reference solutions using the EZ232L.
Programming Board Manual
This document provides a user manual for the EZ232L software and programming board.
System Level Evaluation
This document presents the evaluation results of the EZ232L series in an inverter system, based on a comparative analysis with a conventional cored current sensor.
Application note
This document explains the electrical characteristics and measurement principles of the EZ232L with detailed data.
Comming soon
