Currentier Product Lineup
Performance and Specifications by Series
We have a wide lineup of Currentier magnetic open-type coreless current sensor ICs, including ultra-high accuracy models and models with overcurrent detection functions. Each of these models and series has its own strengths.
You can select products using the product map or the selection table.
You can find products using tools such as the selection table and the product map.
You can select a product from the product specifications.
Click on the product series name to see the details.
|Coreless||SOP||5.0||5.0||60||± 5.3 to ± 180
||Bipolar||Retiometric||≧ 8.0||1118||CZ370x||CZ37 Series||Preview|
|0 to 345.2||Unipolar||CZ372x|
|3.0||50||± 11.6 to ± 166.6||Bipolar||Non-Ratiometric||CZ3AGx||CZ3A Series||Preview|
|3.3||3.3||± 12.9 to ± 129.1||CZ3A0x|
|5.0||5.0||20||± 4.5 to ± 42||Bipolar
||Retiometric||≧ 5.0||1000||CQ330x||CQ3 Series||NRND|
|± 20.5 to 42||Unipolar|
|3.3||3.3||± 8.5 to ± 44||Bipolar||CQ320x|
|DIP||5.0||5.0||50||± 21 to ± 170||Bipolar||≧ 13.3||1330||CQ233x||CQ2 Series||NRND|
|3.3||3.3||± 21 to ± 85||CQ223x|
|5.0||5.0||± 170||≧ 2.7||270||CQ2366||NRND|
* Pollution Degree II with basic insulation

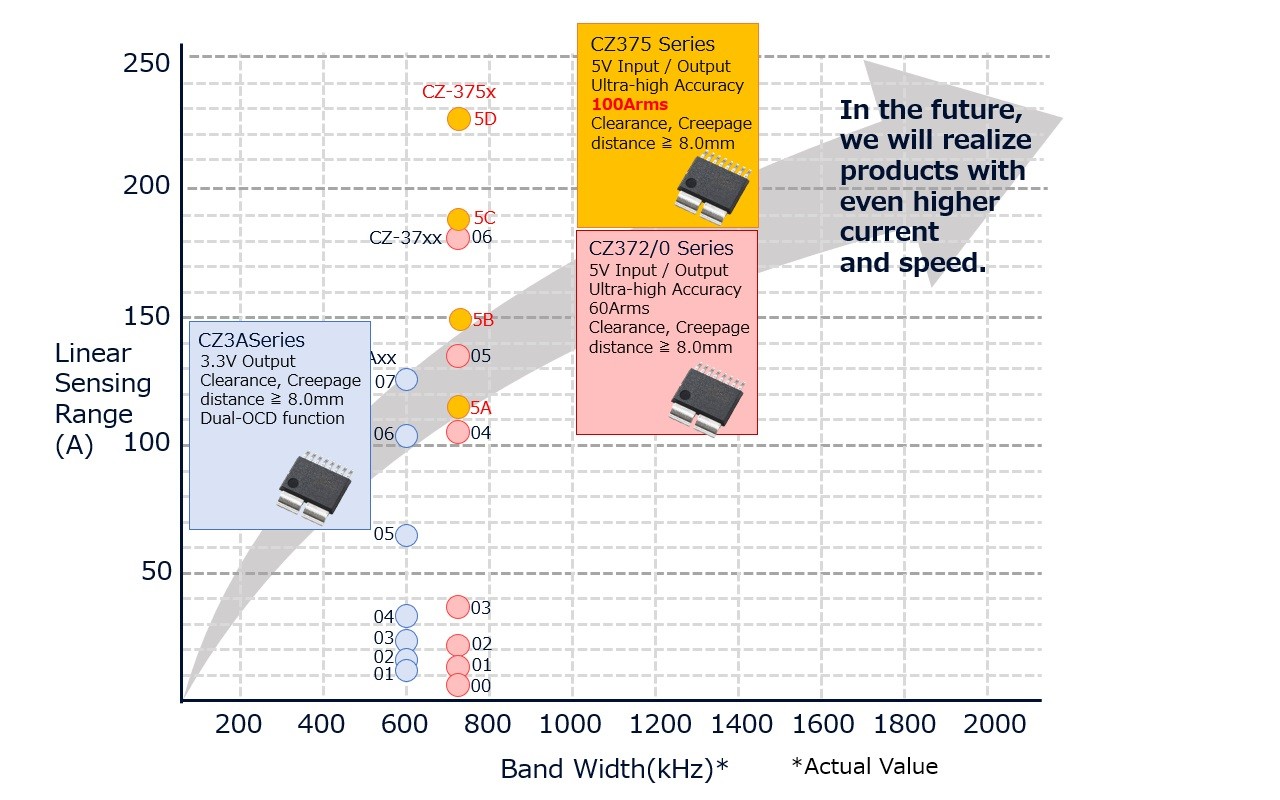

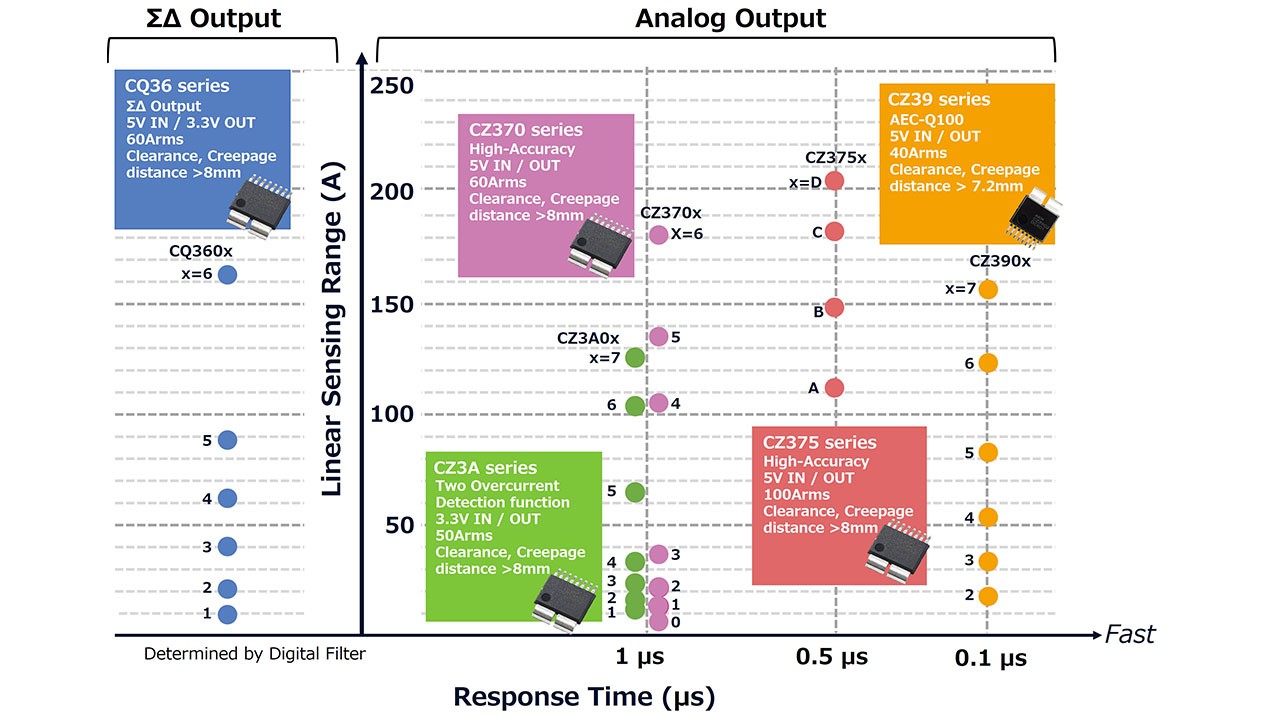

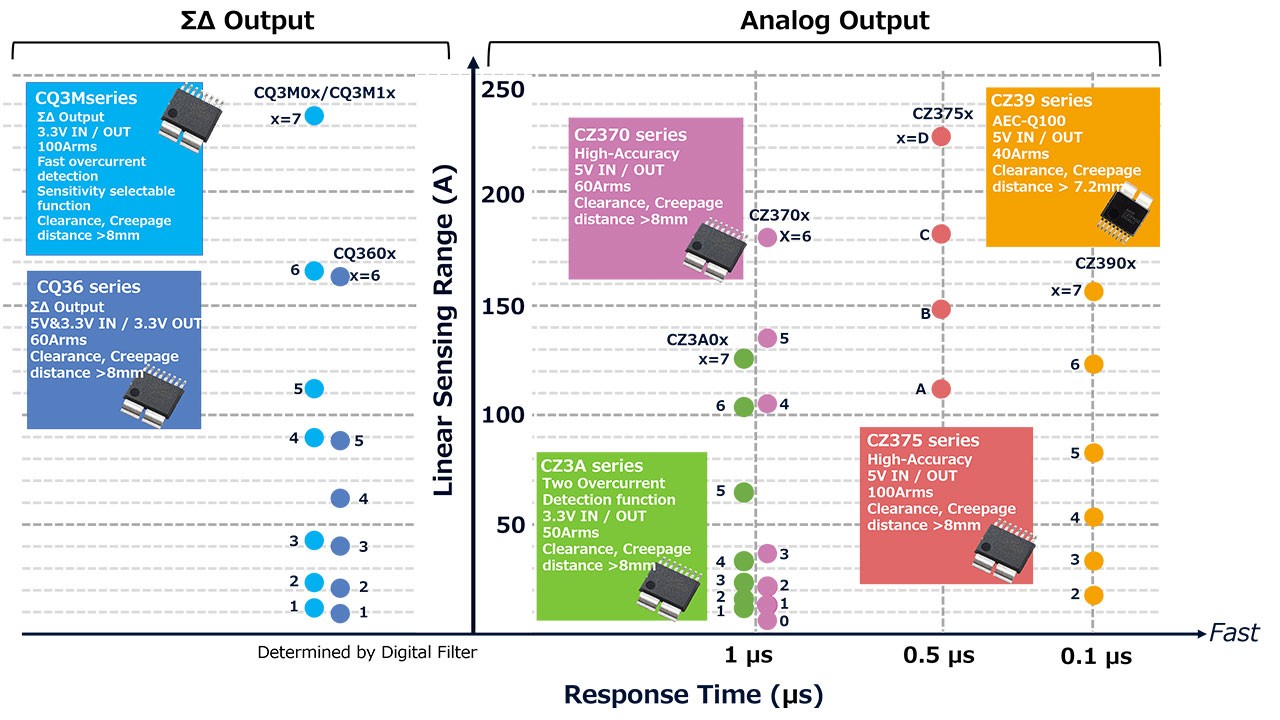

Search by product map
You can see the product map in terms of measurable current and response time.
In the map, the upper direction is for high current applications and the right direction is for high speed applications.
This is a parametric search file that can be searched by entering conditions such as maximum measurement current, maximum primary current, and supply voltage. You can download the datasheet after product selection in the selection guide.
