Wireless CO₂ sensor beacon

Maintenance-free operation with a single coin-cell battery for more than a year

CO2 Sensors

This is an introduction to the reference design of a modular "CO₂ Sensor Beacon" that can be operated with a single coin-cell battery using a CO₂ sensor Senseair Sunrise.

By using the application note, schematic, BOM, Gerber files, receiver software, etc., modular designs can be advanced quickly.

A compactly constructed IoT gas sensor network

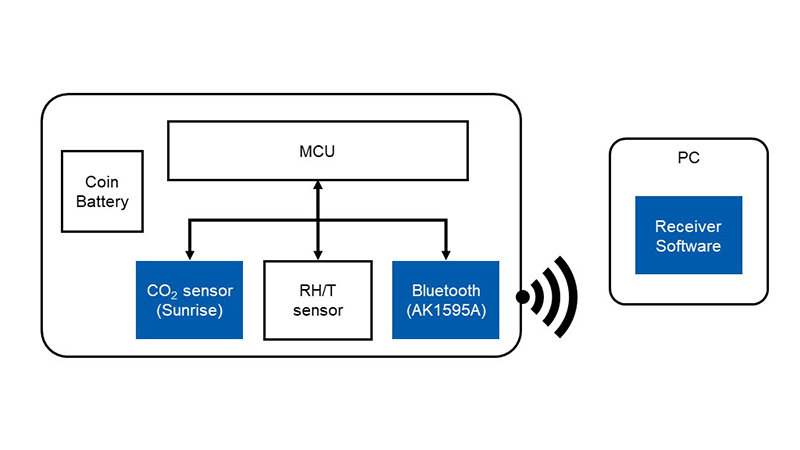

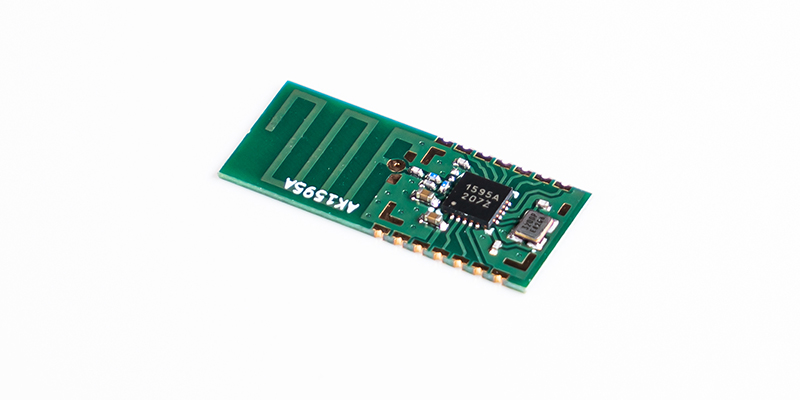

CO₂ sensor Senseair Sunrise and the temperature/humidity sensor data are transmitted using Bluetooth® Low Energy transmitter IC AK1595A . With a transmission period of 15 minutes, the average current consumption of the entire sensor beacon is only 19[μA], so one coin-cell battery can operate for more than a year.

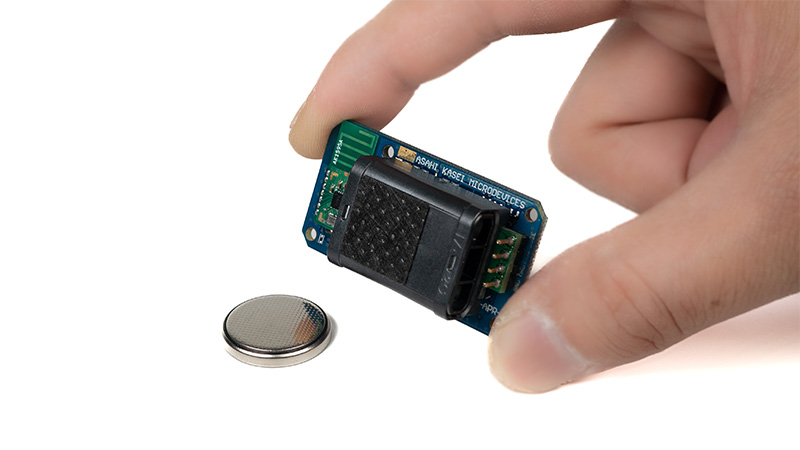

Its compact size (25 x 45 x t22[mm]) provides high flexibility in placement. CO₂ Sensor Beacon is the optimal sensor node for building IoT sensor networks. In addition, up to eight sensor data can be acquired simultaneously by using the receiver software.

* Bluetooth® is a registered trademark of Bluetooth SIG, Inc.

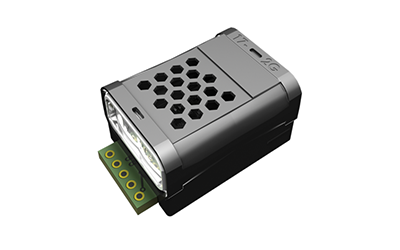

CO₂ sensor Senseair Sunrise and AK1595A
A compactly constructed IoT gas sensor network A compactly constructed IoT gas sensor network

Compact functions required for wireless air quality sensing

  • One coin-cell battery provides at least one year of maintenance-free operation
  • Size 25 x 45 x t22 [mm]
  • Accuracy
    • CO₂ sensor: ± (30 ppm + 3 % of reading)
    • Temperature sensor: ± 0.2 ℃
    • Humidity sensor: ± 2 %RH
  • Simple power supply circuit configuration
  • UART communication (Modbus) enables user to adjust the measurement cycle and other parameters.


  • Wireless CO₂ sensor network for proper ventilation in schools, restaurants and offices
  • Low-power indoor air quality (IAQ) monitoring (e.g., portable IAQ monitoring)
  • Automation of air-conditioning systems (HVAC: Heating, Ventilation, and Air Conditioning)
  • Smart agriculture and livestock industry that do not require battery replacement

Wireless CO₂ Sensor Beacon Reference Design/Program File

The design file includes:

  • Application Note
  • Schematic
  • BOM
  • PCB layout
  • Gerber files
  • MCU source code
  • Source code and an executable file of the receiver software
EVB Manual

CO₂ sensor beacon design file

English (4,272kB: zip file)
