Sensor Element
(for NDIR type Gas Sensors)

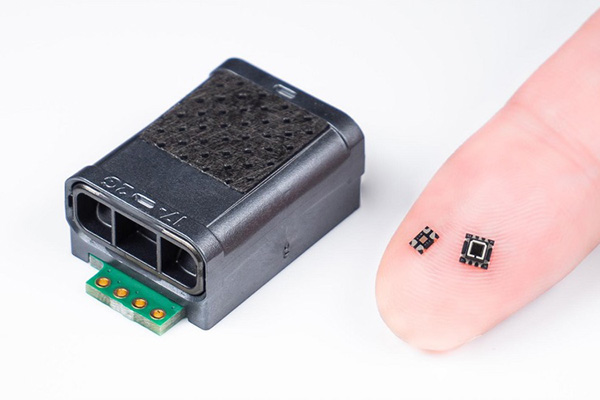

Components for measuring gas concentrations using the NDIR method.
These components are suitable for customers who design and develop gas sensors from modules.

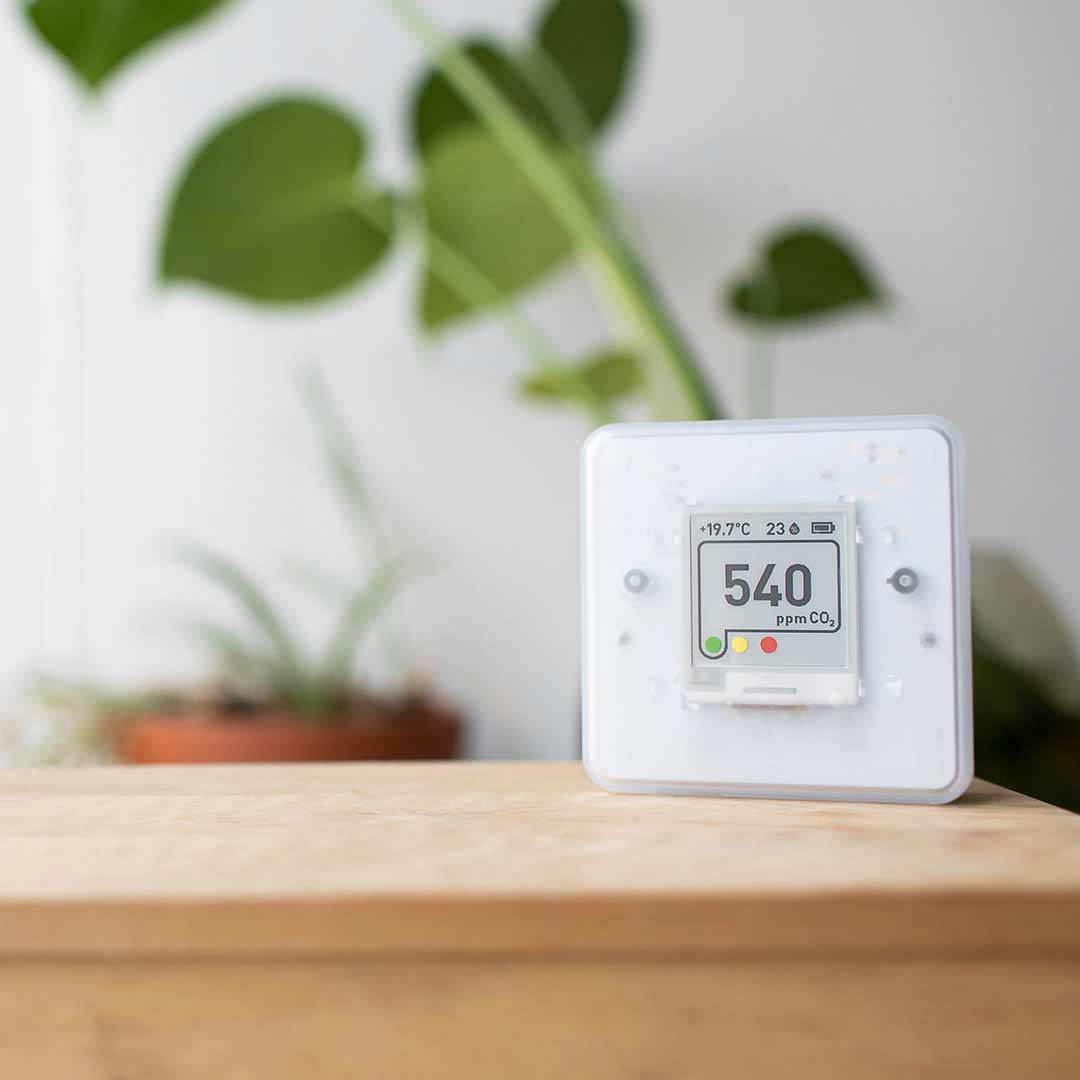

CO2 Sensors
Overview
The infrared LED, infrared sensor, AFE IC with a built-in infrared LED driver are suitable for NDIR (Non Dispersive InfraRed) type gas sensors. As the components of a gas sensor, these new technologies are able to transform our daily life at home to a more convenient, secure, safe, and energy saving environment.
Specifications Comparison
Infrared LED for NDIR type Gas Sensors
AKM's infrared LEDs utilize the epitaxial growth technology for semiconductor thin films, which have been developed through the manufacturing of magnetic sensors. This technology achieves emission wavelength control for the optimum gas absorption wavelength band and high-speed and high-output emission control.
Our own compact molded resin packaging technology contributes to the downsizing of gas sensors as the compact Surface Mounted Devices (SMD) infrared LEDs.

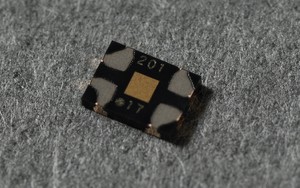

AK9700AE
Product Name |
AK9700AE |
AK9700AD |
AK9703AJ |
|
|---|---|---|---|---|
| Peak emission wavelength | [μm] | 4.3 | 3.6 | |
| Spectral half width | [μm] | 1.0 | 0.7 | |
| Operation Temperature | [°C] | 0 to 50 | -40 to 90 | -40 to 85 |
| Size (D/W/H) |
[mm] | 2.6 x 1.9 x 0.4 | ||
| Automotive grade (*) | - | Yes | - | |
| AEC-Q101 | - | Yes | - | |
| Status |
MP | MP | MP | |
| Product Details |
AK9700AE | AK9700AD | AK9703AJ | |
More Information...
* This product is for monitoring air quality in the cabin of a vehicle. For other applications, please contact us.
Infrared Sensors for NDIR type Gas Sensors
AKM's infrared sensor utilizes the epitaxial growth technology for semiconductor thin films, which have been developed through the manufacturing of magnetic sensors. This technology achieves wavelength sensitivity control for the optimum gas absorption wavelength band and high-speed response and high Signal-to-Noise Ratio (SNR).
Our own compact molded resin packaging technology contributes to the downsizing of gas sensors as the infrared sensors of the compact Surface Mounted Devices (SMD).

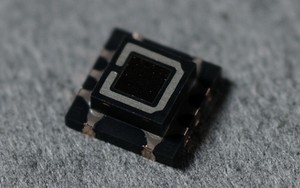

AK9710AE
Product Name |
AK9710AEF01 |
AK9710ADF01 |
AK9710AEF3A |
AK9730AJF21 |
IR1011 | |
|---|---|---|---|---|---|---|
| Output Current Ip | [nA] | 1.04 to 4.9 | 0.58 to 2.04 | 2.9 to 14.2 | 4.5 to 7.5 | |
| Internal Resistance | [kΩ] | 75 to 188 | 75 to 188 | 15 to 250 | 112 to 188 | |
| Optical Filter | [μm] | CWL : 4.28, FWHM : 0.27 |
CWL : 3.91, FWHM : 0.09 |
CWL : 3.32, FWHM : 0.19 |
||
| Temperature Range | [°C] | -40 to 85 | -40 to 90 | -40 to 85 | -40 to 85 | -40 to 85 |
| Size (D/W/H) |
[mm] | 3 x 3 x 1.01 | 2.65 x 1.9 x 0.4 | |||
| Automotive grade (*) | - | Yes | - | - | - | |
| AEC-Q101 | - | Yes | - | - | - | |
| Status |
MP | MP | MP | MP | NRND | |
| Product Details |
AK9710AEF01 | AK9710ADF01 | AK9710AEF3A | AK9730AJF21 | IR1011 | |
More Information...
* This product is for monitoring air quality in the cabin of a vehicle. For other applications, please contact us.
AFE IC with built-in infrared LED driver for NDIR type Gas Sensors
AKM provides a gas sensor signal processing solution for NDIR type gas sensor applications by combining its infrared LEDs and infrared sensors with an external MCU.

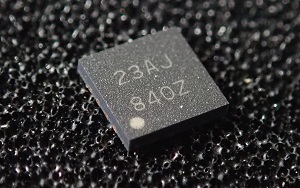

AK9723AJ
Product Name |
AK9721AE |
AK9724AE |
AK9723AD |
AK9723AJ |
|
|---|---|---|---|---|---|
| LED Drive Current | [mA] | 28 - 121 Programmable (3mA Step) | |||
| ADC resolution | [bit] | 13 | |||
| Power Supply | [V] | 2.7 to 3.6 | |||
| Operation Temperature | [°C] | -40 to 90 | -40 to 85 | ||
| Size (D/W/H) |
[mm] | 3.0 x 3.0 x 0.7 | 3.0 x 3.0 x 0.7 | 4.0 x 4.0 x 0.7 | |
| Automotive grade (*) | - | - | Yes | - | |
| AEC-Q100 | - | - | Yes | - | |
| Status |
EOL | EOL | EOL | Preview | |
| Product Details |
AK9723AJ | ||||
More Information...
* This product is designed to be used for monitoring air quality in the cabin of a vehicle. For other applications, please contact us.
Purchase a product or sample / Technical questions
Purchase a sample
Samples are available from our web distributor Digi-key
Purchase a sample
Samples are available from our web distributor Mouser
Distributors / Representatives
All product are sold via Distributors / Representatives
About Senseair
Senseair, which became a member of the Asahi Kasei Microdevices (AKM) Group in 2018, is a provider of gas sensors using NDIR: Non-Dispersive InfraRed technology. Our goal is to constantly develop and mass-produce new gas sensor technologies.
